Patio Door Mortise Lock Replacement

A from Frisco, TX says:
Bought a replacement at Lowes everything lines up except where the key fits into the lock. Pictured is the lock I took out but the new lock opens full horizontally and this old lock is at a 45 degree. The diamond shape at top and bottom lock doesn't exist on replacement lock, one is beveled and the other is cornered. do you have a replacement as pictured above. Pation door is approx 11 years old.

Thumbnail of the uploaded file named mortise lock 2.jpg
Thumbnail of the uploaded file named Mortise lock.jpg
Profile picture of Bob
Bob from SWISCO responded:

See our 82-218. Look it over and see if you think this could work for you.

A home owner from Texas says:
Piece in locking mechanism broke and I have not been able to find replacement .
Thumbnail of the uploaded file named IMG_6675.jpeg

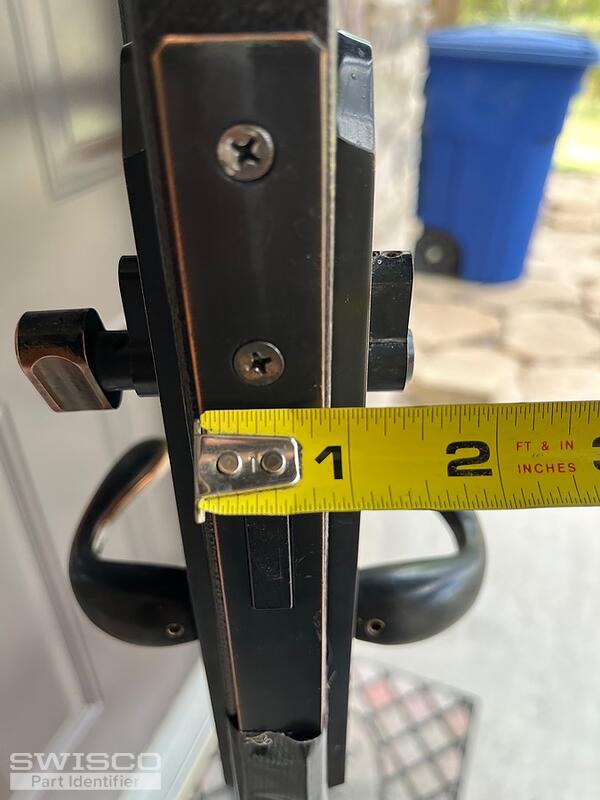

Thumbnail of the uploaded file named IMG_6674.jpeg

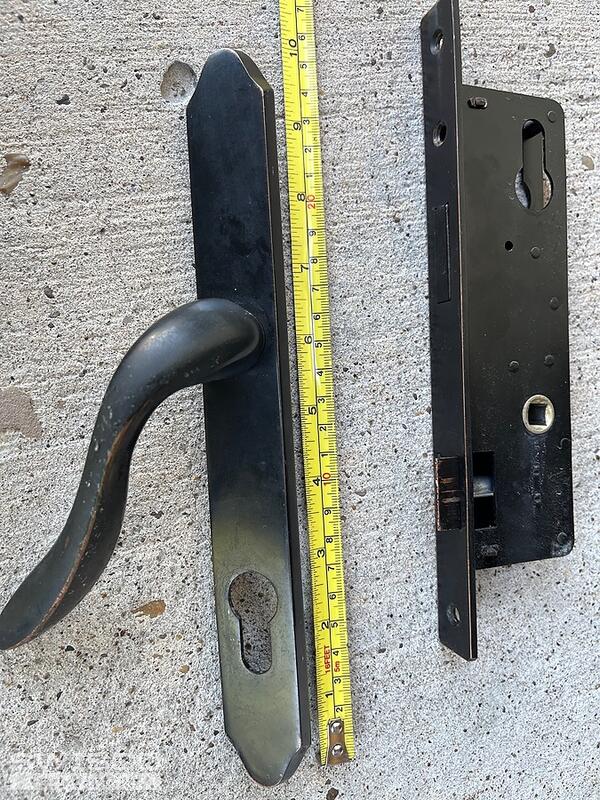

Thumbnail of the uploaded file named IMG_6666.jpeg

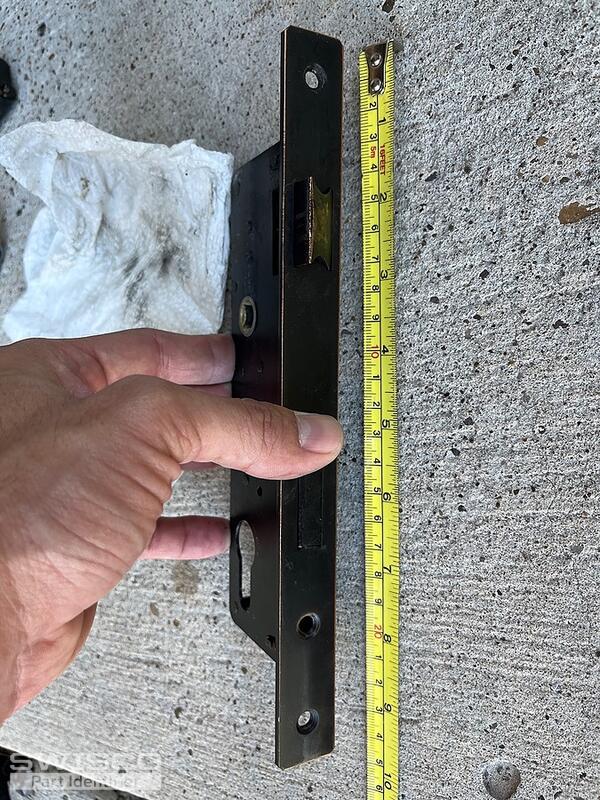

Thumbnail of the uploaded file named IMG_6665.jpeg

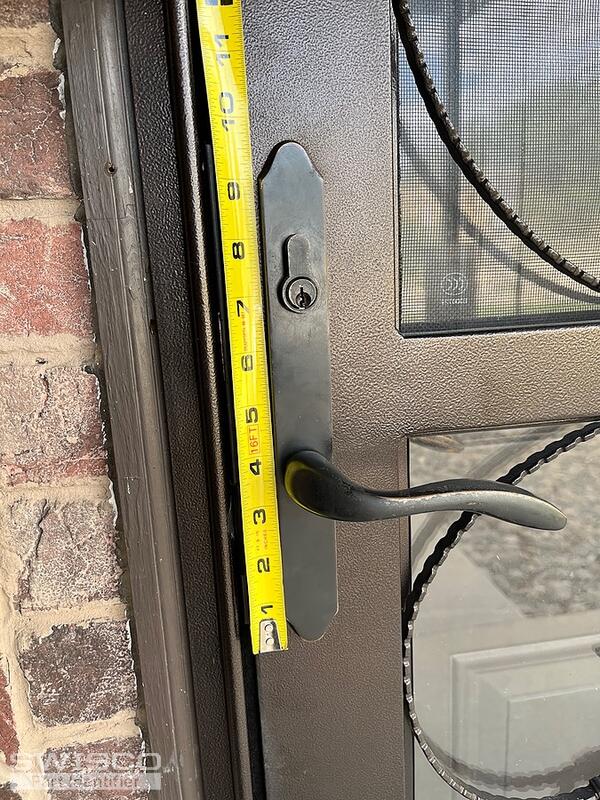

Thumbnail of the uploaded file named IMG_6670.jpeg
Profile picture of Tom
Tom from SWISCO responded:

We unfortunately don't sell a lock set that matches the design you show here. My recommendation would be to contact the original maker of the door directly for assistance.
