Patio Door Roller

Home Owner from Michigan

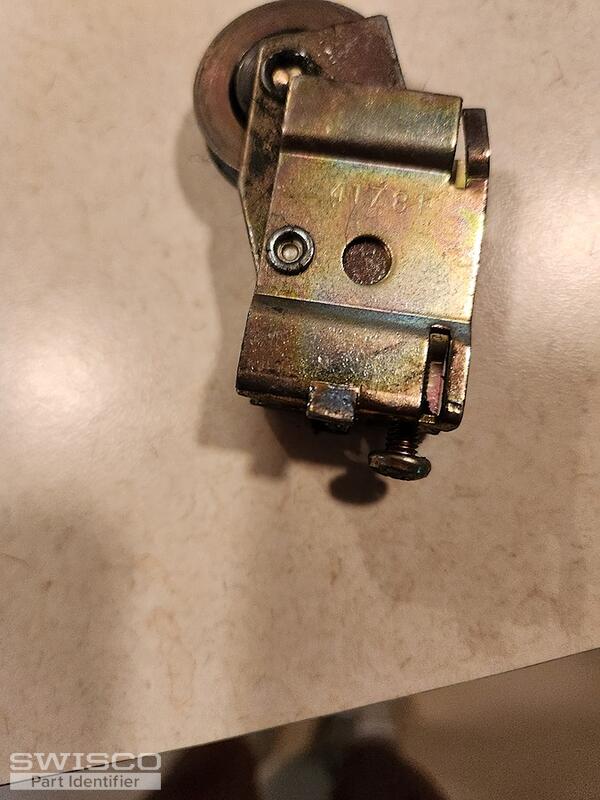

Looking for this patio door roller - door is probably 30+ years old. The part is stamped with 41781. I looked at your part number 81-004, but I don't think this will work because the adjustment screw on mine is at the top (away from roller), but on 81-004, the adjustment screw is on the bottom. The side holes on my patio door are different sizes - a bigger hole for adjustments and smaller for mounting. The height of my roller is 1 3/8" (not including the wheel), and about 2 3/8" long. I forgot to measure the wheel (before reinstalling it) so I can't easily give that measurement. Thank you for any help you can give me.
1 user uploaded image
6 Replies
Bob
Bob from SWISCO
SWISCO
Expert

Thanks for posting. My first thought is that this roller resembles our 81-033. The dimensions are a bit different from what you report, so I'd double-check in comparison to the dimensions below and let me know what you think.

Alternate image for 81-033
Alternate image for 81-033

Home Owner from Michigan
Thank you! It does look promising. I did forget to measure the width, but 13/16 looks about right (I can't remeasure yet until my helper is available to help me get the door off). As far as the length, we're good as the door is hollow all along the bottom. On that note - the door is very heavy - do you happen to have a dual roller option with similar dimensions (except length)?
Bob
Bob from SWISCO
SWISCO
Expert

As it just so happens, our 81-154 comes with the same height and width, and has those same "slots" at the top end to, for installation. Give it a look and see if this might be better.

Alternate image for 81-154
Alternate image for 81-154

Home Owner from Michigan
Yes, I believe this might work. Thank you!
Bob
Bob from SWISCO
SWISCO
Expert

Sure thing! Please let me know if you had any other questions.
