Patio Door Rollers

Home Owner from Nashville

Jan 13, 2022 11:39 am

Hi, sticker is attached on frame of patio door. Can you identify the maker by this model number? Home built 2001 by Pulte. Need new rollers if possible.

2 user uploaded images

5 Replies

Bob from SWISCO

Jan 14, 2022 9:32 am

I'm afraid not. In any event, with very rare exceptions sliding glass door rollers are not identifiable by brand, as the parts are used by a variety of manufacturers without a clear pattern. The only way to reliably identify what you have is to remove the old rollers and show us pictures. We'll do our best to help from there. See the videos on this page.

Home Owner from Nashville

Jan 14, 2022 9:43 am

Thank you. I will have them removed and take photo. Thanks so much for your prompt reply.

Home Owner from Nashville

Feb 17, 2022 11:06 am

Hi,

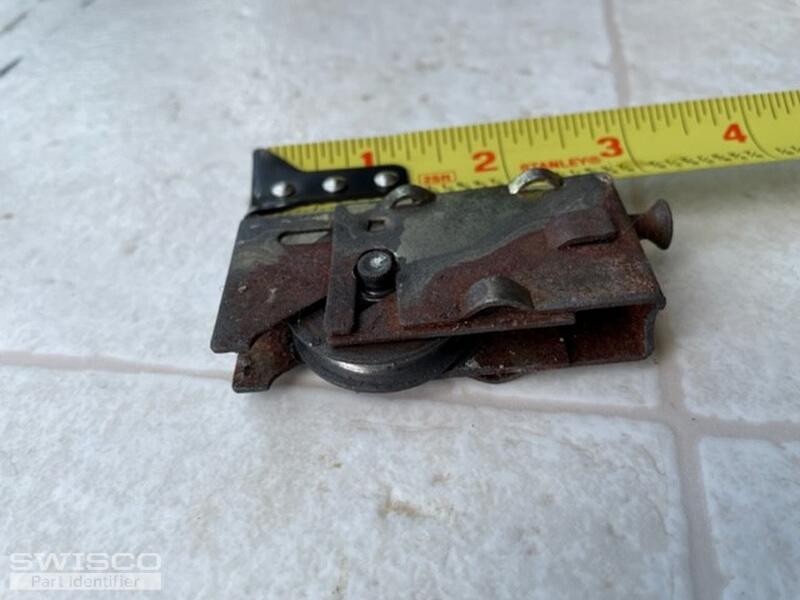

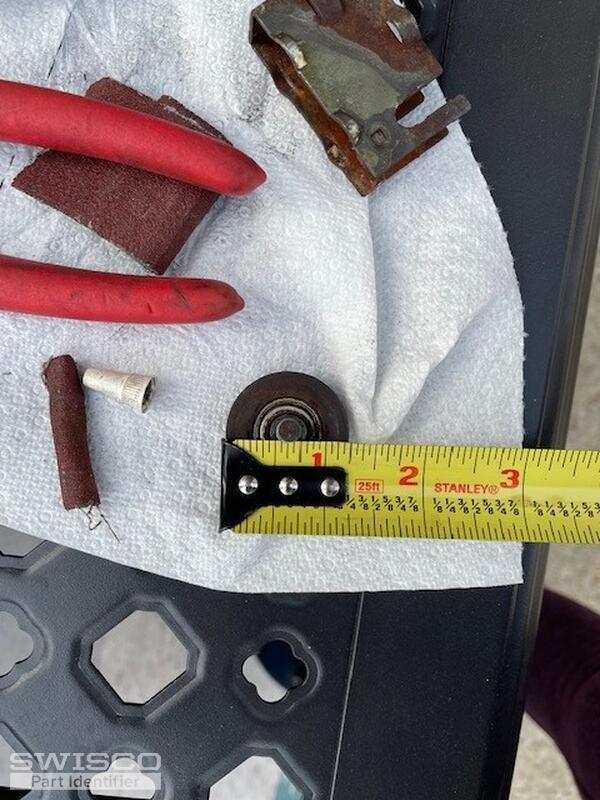

Here is the roller. I will need three in case one is defective. I believe these are the 81-032B but will need you to verify that. Thanks so much. Since patio doors take 6 mo. to get, this has been a blessing finding this site.

3 user uploaded images

Bob from SWISCO

Feb 17, 2022 1:56 pm

The 81-032B absolutely would be my choice as well. Just make sure the roller assembly is 1-3/16" high and 13/16" thick; let me know if any of those dimensions differ. The wheel diameter is 1-1/4".
