Patio Glass Door Double Wheel Roller Assembly

A handy person from Phoenix says:
H, I am looking for some parts for a sliding glass door.

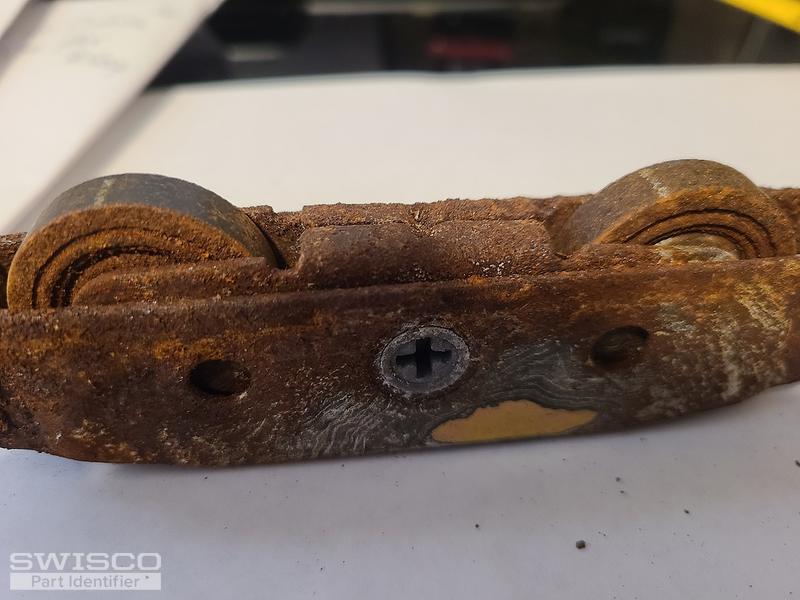

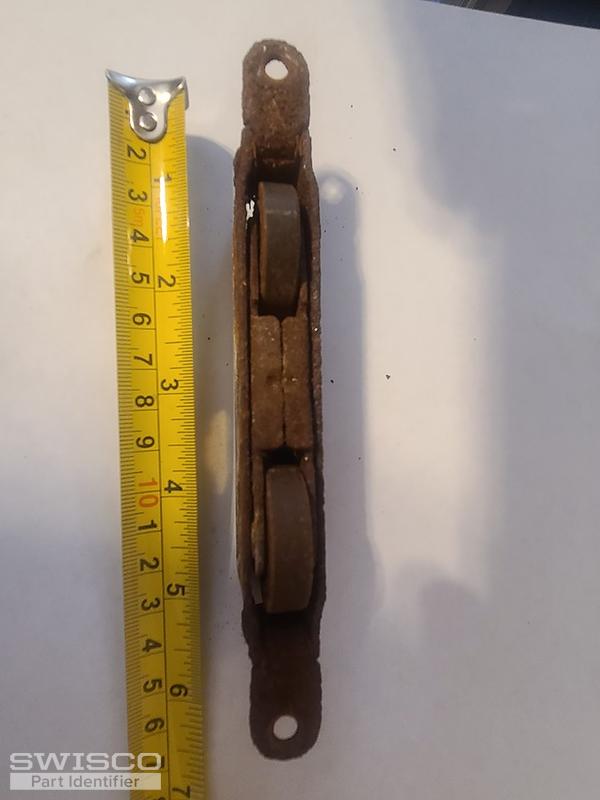

I need the Double Wheel Roller assembly (photos attached). The Door is (this from the door company):
2013 custom 134 inches x 79 3/8 high (Chelsea Trust Guard sliding glass door xoo) sliding door width is 1 1/2 inches
Tandem double wheel patio door roller flat nylon.
(the rollers do not appear to be nylon, the appear to be metal, and flat, but this door is on the beach close to the water, and as you can see in bad shape and rusted. I thought they might be 81-182 or 81-149, or 81-018, but those all seem concave.

I also need the vinyl track that the screen for the door rolls on. screen track is ( 5/8 inches vinyl ) 8 feet.

I also need the Door Handle Assembly:
door handle has 5 inches between screw holes, with dual up and down lock and keeper.
Thumbnail of the uploaded file named 20210208_112355.jpg
Thumbnail of the uploaded file named 20210208_112429.jpg
Thumbnail of the uploaded file named 20210208_112456.jpg
Thumbnail of the uploaded file named 20210208_112528.jpg
Thumbnail of the uploaded file named 20210208_115151.jpg
Profile picture of Tom
Tom from SWISCO responded:

Hello there! We only carry one roller with flat wheels that comes close to this style, and that would be our 81-151. It's nylon, too, so corrosion will hopefully be less of an issue.

We also only sell one type of screen door track, which is our 80-111. See if you could use this as a replacement.

Finally, concerning the door handle, I need to see yours in order to ID a match. I can also tell you right now that we don't have anything with a 5" hole spacing. You may want to recheck that. Make sure to only measure from the center of each hole.
