Patio Sliding Glass Door Hardware

A home owner from Essex, Vermont (05452) says:
November 16, 2020

Hello,

I need to replace the internal lock of my sliding patio glass door. After contacting the manufacturer 'Harvey', they referred me to you, as the door was manufactured about 20 years ago.

The issue is that the internal lock does not lock anymore. The "hook" does not come out by itself. Please see the attached pictures.

On the "plate" that is on the door, the distance between the top- and bottom screw is about 4 3/4". The distance between the two screws in the frame is 3".

Can you help me please with the correct replacement parts and options thereof, that would be great.

Thanks,

Chris Krings

Thumbnail of the uploaded file named sliding door hardware 1.jpg
Thumbnail of the uploaded file named sliding door hardware 2.jpg
Thumbnail of the uploaded file named sliding door hardware 3.jpg

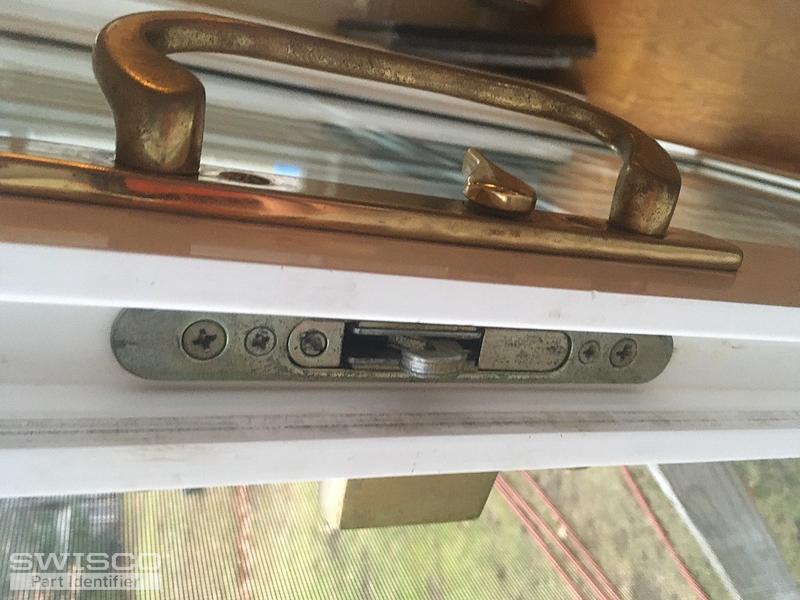

Thumbnail of the uploaded file named sliding door hardware 4.jpg

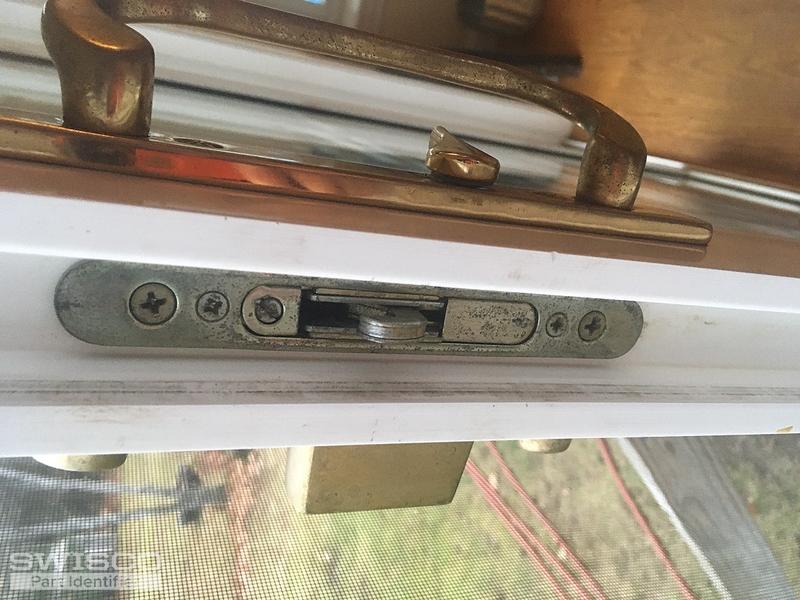

Thumbnail of the uploaded file named sliding door hardware 5.jpg
Profile picture of Tom
Tom from SWISCO responded:
November 19, 2020

Hello, Chris. Your mortise lock looks like a good match for our 82-226. Look it over and let me know if you agree!

If you also wanted the handle set, then see our 82-087. Based on your post, though, it sounded like you only needed a mortise.
A home owner from Essex, Vermont (05452) says:
January 18, 2021
Hello Tom,

Thanks for the info again.
Can you tell me please which handle I need for my sliding door that opens to the right?
The 82-087 seems to be for a sliding door that opens to the left.
Happy 2021!

Thanks,
Chris
Profile picture of Tom
Tom from SWISCO responded:
January 20, 2021

The 82-087 can work for either the left or right hand side. You just unscrew the pull from the base and flip it over.
Mortise Lock, 4-5/8"
Mortise Lock, 4-5/8"
82-226
$13.97
Legacy Keyed Handle Set, 3-15/16" (1-1/8" to 2-1/2")
Legacy Keyed Handle Set, 3-15/16" (1-1/8" to 2-1/2")
82-087
$112.27
