Landlord from 52748

May 19, 2022 5:56 pm

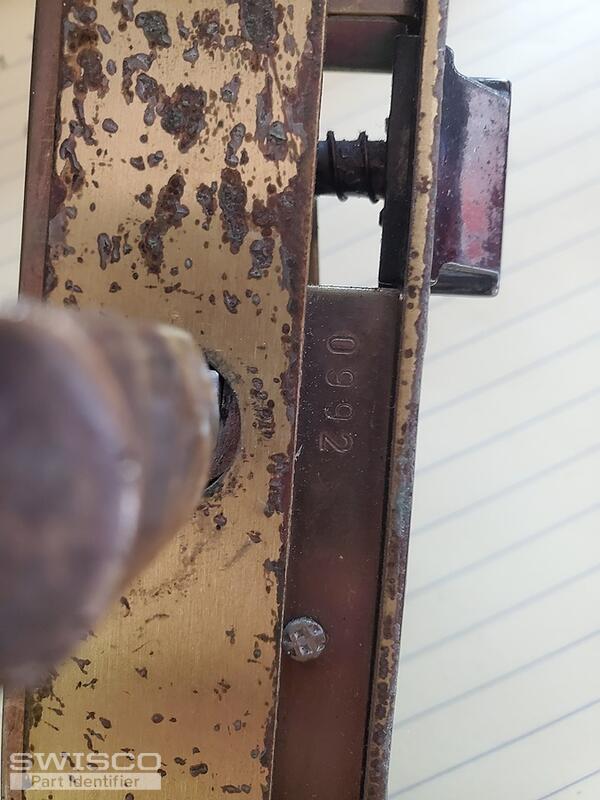

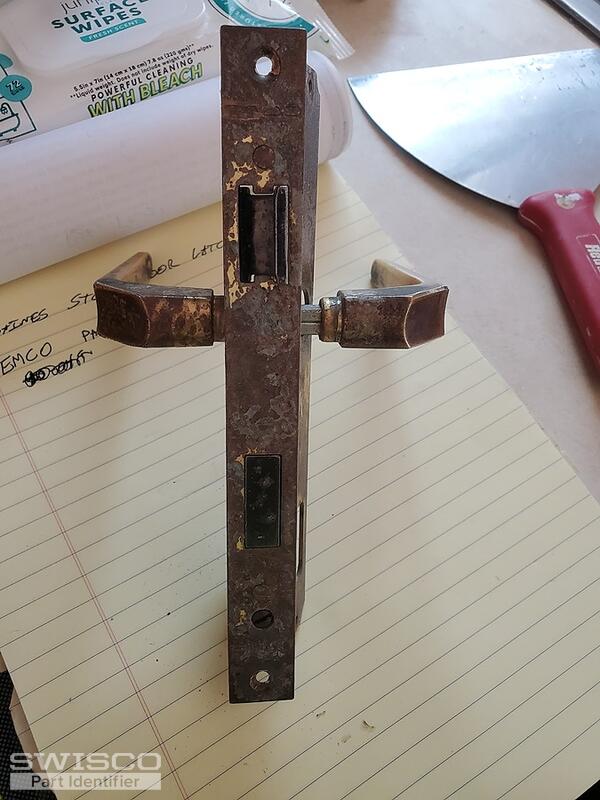

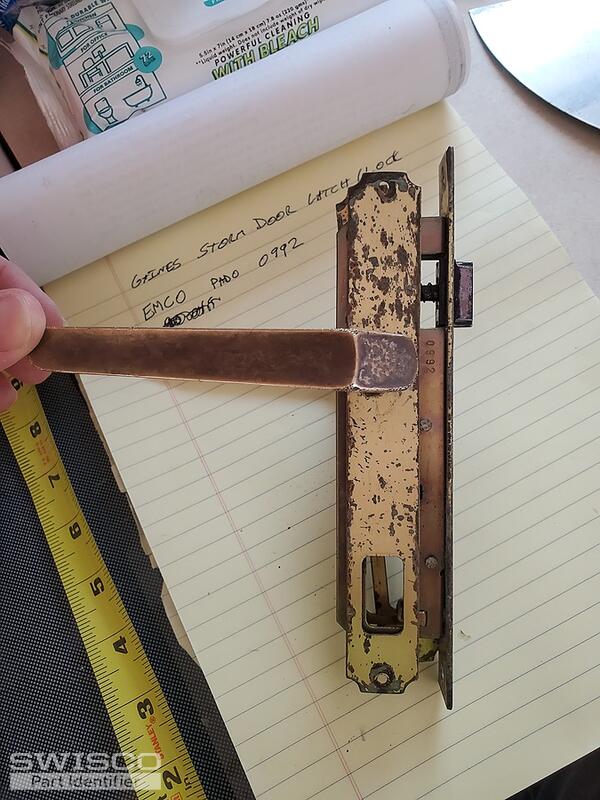

Looking for lock cylinder with inside knob and/ or entire Handle / lock assembly for storm door.

Thanks,
Dave

4 user uploaded images

4 Replies

Tom from SWISCO

May 23, 2022 3:20 pm

Thanks for reaching out to us! This handle set looks like a match for our 40-049. Check it out and let me know what you think!

alternate view of 40-049

Dimensions for 40-049

Landlord from 52748

May 23, 2022 4:01 pm

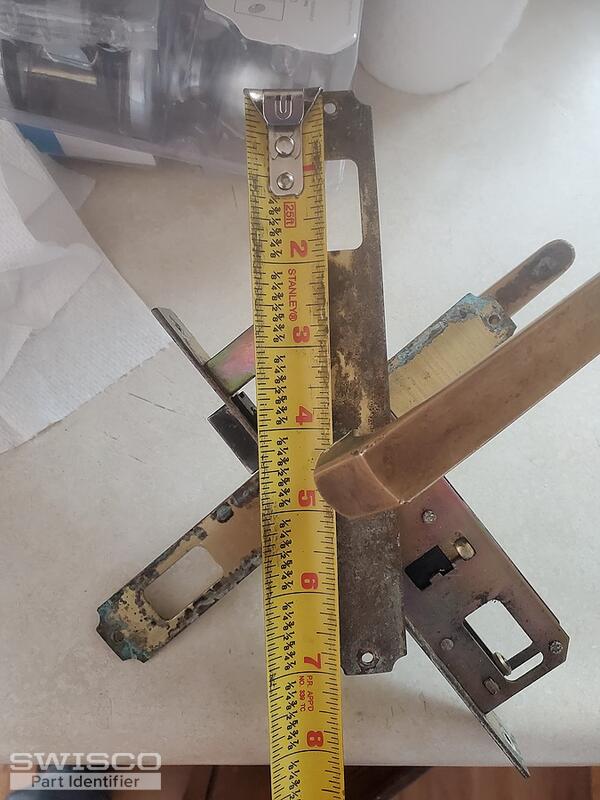

No, the latch screw holes match, but the lock bolt hole is a different shape and the plates on front and back of door pate is 7-1/16 inches tall with mounting holes at 6-11/16 inches on center.

1 user uploaded image

Tom from SWISCO

May 24, 2022 10:01 am

Thanks for clarifying, Dave. Unfortunately, the 40-049 is the best option we have in our inventory at this time. I believe your old handle set was the old Papaiz brand set, which hasn't been made in a long time. I've known past customers who successfully got our 40-049 to work, though, so I think it is the best option in your case. It just might take a little handiwork if your door is particularly old.
