Patio door handle replacement

Question

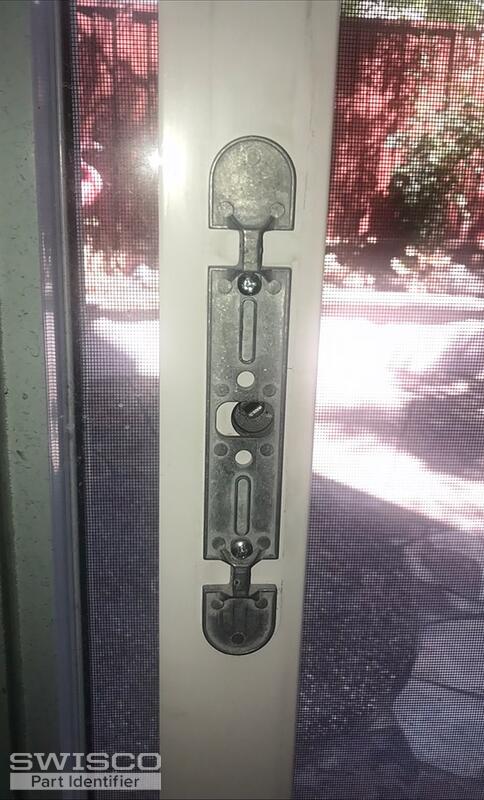

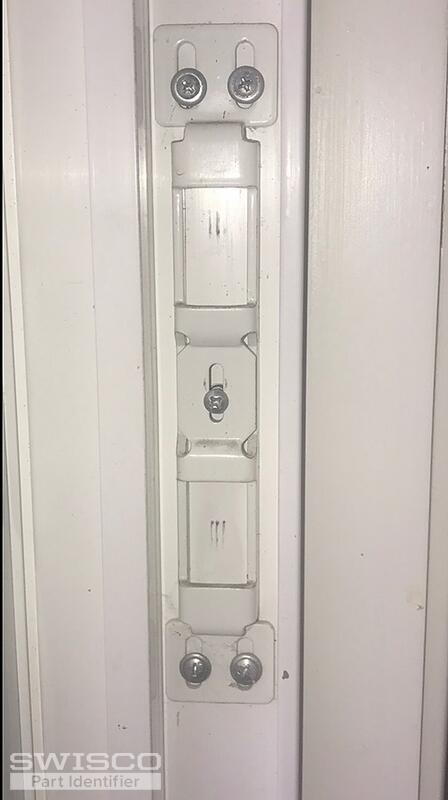

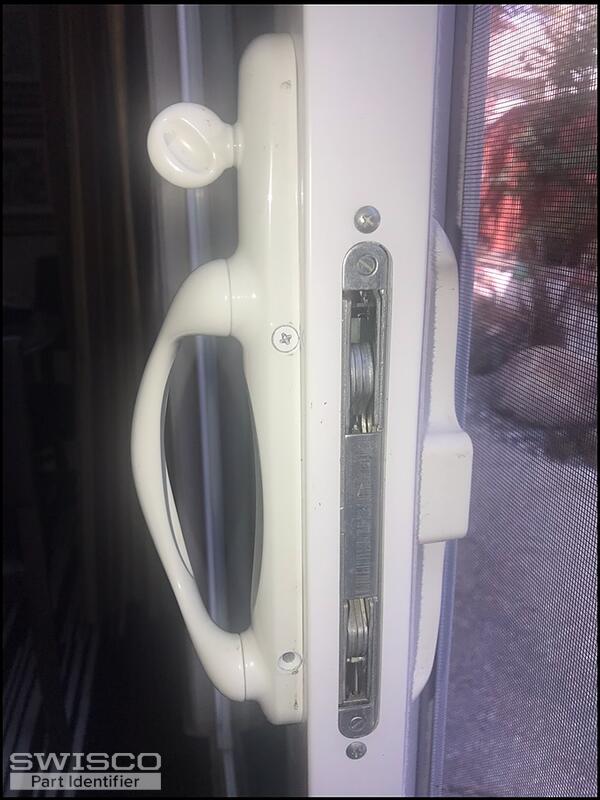

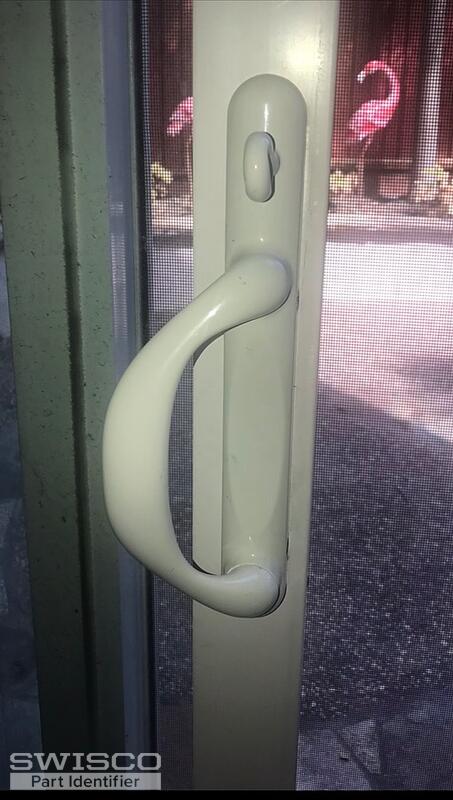

Hi my name is Mike my latch on my door handle is broken so I can't lock my door can you please see if you can find
a replacement part attach is pictures of the part if let know if you need more information thank you

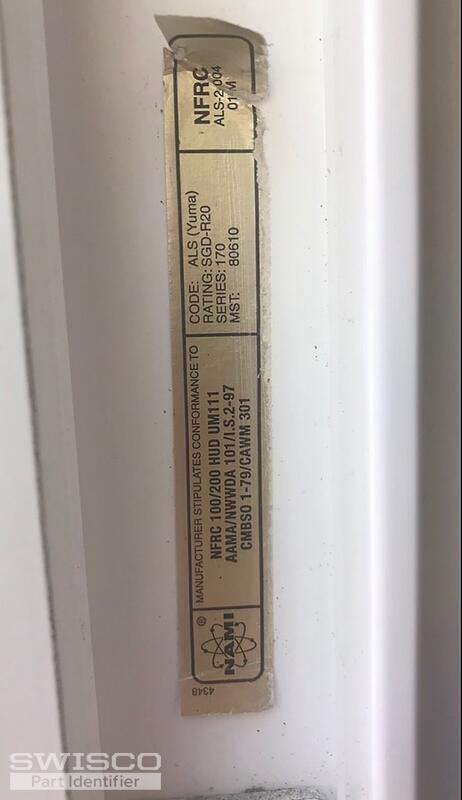

Nami
NFRC 100/200
Code: ALS (Yuma)
Ratings: SGD-R20
Series: 170
MST: 80610

Tom · Accepted Answer

We don't sell this exact handle set, unfortunately, but I believe you can use our 82-030 as an alternative. The design looks very different at first glance, but you just need to make sure two details match up:

The installation hole center spacing, which should be 3-15/16"
The position of the thumb lever, which should be between the two installation holes

As long as those details align with your original handle then the 82-030 should function perfectly well on your door despite its differences.
