Patio door handle set

A quick learner from Fernandina Beach Fl says:
The inside and outside measurements are 1 inch wide by 8 1/2 inches in length. The screws are 2 1/4 from the top and the second on is 6 1/4 inches from the top. The locking mechanism is 3/4 inches wide and 6 inches in length.
Profile picture of Tom
Tom from SWISCO responded:

I'm afraid that we don't sell anything that matches those specifications. Before I say anything for sure I'd like to see photos of the handle set itself. At the very least I may recognize it and can point you in the right direction.

A quick learner from Fernandina Beach Fl says:
These are the pictures
Thumbnail of the uploaded file named 9962F539-D516-4A4D-9C2B-BC1AF45DC263.jpeg
Thumbnail of the uploaded file named 33262DB3-A862-433A-90D4-07315C6D655C.jpeg
Profile picture of Tom
Tom from SWISCO responded:

Thanks! This handle set looks very similar to our 82-087 . I think this is exactly what you were looking for, but review this product and let me know if you had any questions.

A quick learner from Fernandina Beach Fl says:
So which part needs to fit exactly the locking mechanism is what I see because the inside and outside handles fit in the locking mechanism. So I guess the only way to know for sure is to take the old one out and buy yours to see if it all will fit. So are the parts returnable if they don't fit?
Profile picture of Tom
Tom from SWISCO responded:

Yes, you can return the 82-087 for a refund if it doesn't fit for whatever reason. You can see our return policy here .

A quick learner from Fernandina Beach Fl says:
Which mortise lock should I purchase with the handle set based on my measurements. Y
Profile picture of Tom
Tom from SWISCO responded:

I would have to see a clearer picture of your mortise in order to make a recommendation. I can just about make it out in your first photo, and if I'm looking at what I think I'm looking at, then you can use our 82-227 as a replacement.

A clearer photo would allow me to give you a more confident recommendation. At the end of the day, photos are always the best method of identification. Dimensions are helpful but by themselves they do not indicate design or function, which are equally as important.

A quick learner from Fernandina Beach Fl says:

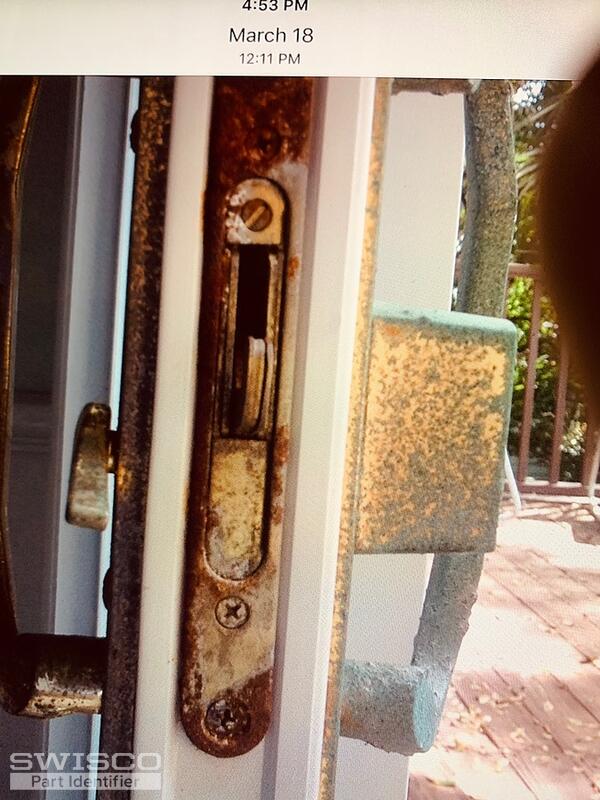

Here are two more photos of the locking mechanism. Thanks
Thumbnail of the uploaded file named 0FB5566E-1357-45A2-848F-047A66CBE817.jpeg
Thumbnail of the uploaded file named 077C0525-0998-4A33-BD02-1CBC0A88C814.jpeg
Profile picture of Tom
Tom from SWISCO responded:

Thanks! I'm very confident that the 82-227 is the mortise you want. However, feel free to ask any questions you may have about this product and I will do my best to answer.
