Quick Learner from Merrillville Indiana

May 14, 2019 8:57 pm

Unfortunately I don't know the maker of the patio doors. I need door handles with lock. I saw a video that was posted and the door looked like mines andb they gave them the number for the handles 82-086. The measurements or holes on the door are around 12 or 12 1/2 long.

3 user uploaded images

6 Replies

Dave Sr. from SWISCO

May 15, 2019 1:09 pm

I am not sure the 82-086 legacy keyed handle set would work on your door based of off the measurements you have provided. Take a look at the diagram below of the 82-086 to see if this could work. If not, get back to us with the distance between the screw holes as well as the thickness of the door, and we will continue to search for other alternatives.

Dimensions for 82-086

Quick Learner from Merrillville Indiana

May 15, 2019 5:39 pm

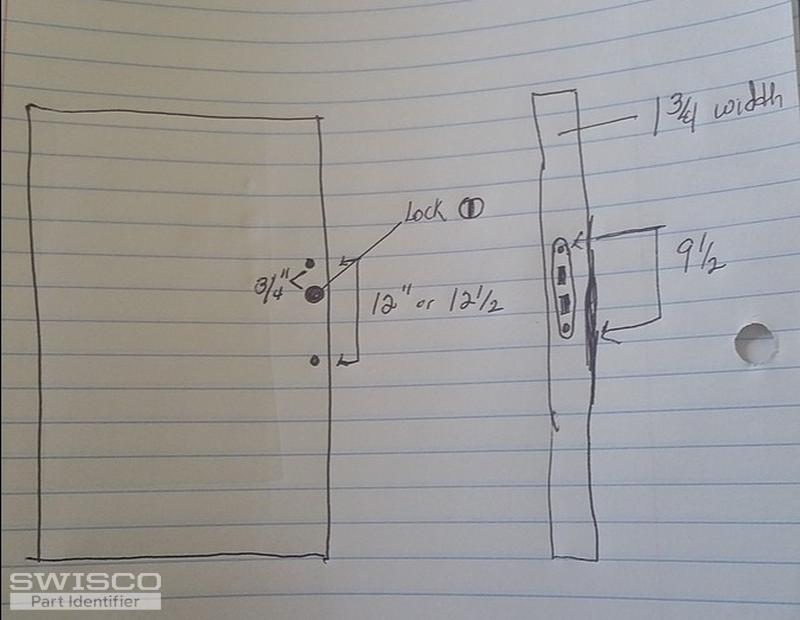

These handles are small.the handles have to be 12 " long. I drew a diagram of the door.

I found out the door is a Pella 350 series.

1 user uploaded image

Tom from SWISCO

May 17, 2019 10:33 am

Thanks for getting back to us. If this is a Pella door, then you'll have to go back to Pella for assistance. We are not able to supply hardware for their sliding glass patio doors. It makes sense since we couldn't find anything based on your dimensions, either. I am sorry that we cannot be of more help.

Professional from CA

May 21, 2019 11:39 am

Take a look at 82-402. The mortise looks close. The handle is way off, but you may be able to re-drill for that.

Tom from SWISCO

May 21, 2019 2:43 pm

The 82-402 might work, but you will have to do some adapting.

You can try this or go back to Pella for further assistance.
