Patio door handle and lock

A home owner from Wheeling, IL says:

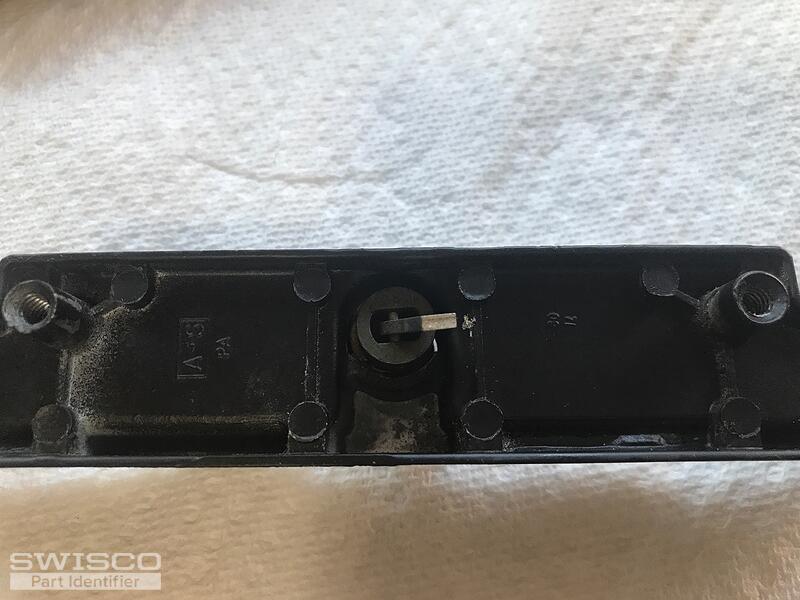

We have not been able to find this door handle and lock to fit our patio door. The door is 1 inch in thickness and everything we have tried is too wide for the door.

This door it's about 20 years old.
Thumbnail of the uploaded file named image.jpg
Thumbnail of the uploaded file named image.jpg
Thumbnail of the uploaded file named image.jpg
Thumbnail of the uploaded file named image.jpg
Profile picture of Casey
Casey from SWISCO responded:

Hello,

Take a look and compare the 82-055 with 3-1/2" installation holes, as well as the 82-003 with 3-15/16" installation holes, to your original handle set. The 82-003 comes with installation screws for 1" thick doors and the 82-055 can accommodate doors up to 1-1/2" thick. It would be a good idea to hold onto your original installation screws just in case you need to reuse them. Thanks for posting!
