Quick Learner from Florida

Jun 21, 2024 10:08 am

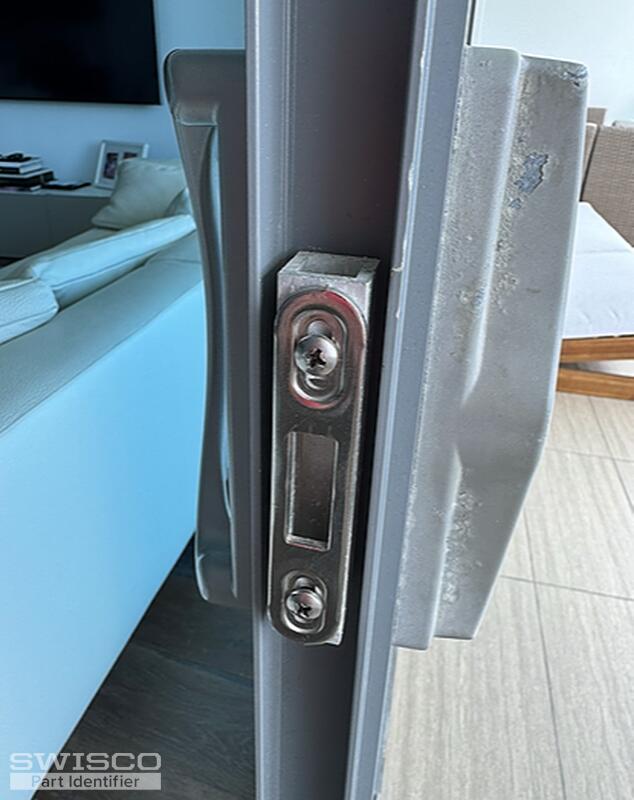

Hi, looking for brand and model number of this patio door handle and lock mechanism so that it can be replaced as the handle fell off and lock doesn't actually work.

4 user uploaded images

4 Replies

Casey from SWISCO

Jun 25, 2024 10:31 am

Hello,

Your handle set is a similar style to the 82-030. Take a look and see how the 3-15/16" hole spacing compares to yours. Unforutnately, we do not carry these handles in metallic finishes at this time.

Hole center dimensions for 82-030

As for your mortise lock, see the 82-218 and the specifications below. Thank you!

Profile view of 82-218

Opposite side view 82-218

Quick Learner from Florida

Jun 25, 2024 11:32 am

Thanks, do you know where I could find the same color as the one I have?

Casey from SWISCO

Jun 25, 2024 11:57 am

We do not have a source for a silver version of this handle set but the 82-087 keyed handle set could work as long as your thumb latch is offset as shown below. We like to recommend the 82-030 since it is a more versatile option with an adjustable thumb latch but the 82-087 is also compatible with the 82-218 and has the same 3-15/16" hole spacing. Take a look and see what you think.

Alternate view of the Brass color option

Detailed shot of the Brass color option
