Patio door hardware

A handy person from Missouri says:
WINCORE SGD-R30 500 Series. I need, all or as many as possible, part numbers for this sliding glass door that was brand new in 1989. I cannot take the door off until I have the rollers or possible rollers due to a very ill patron. Most importantly I need to replace the top and bottom bolts, screws, rollers, and keyed locking handle.
Thumbnail of the uploaded file named 15983715494382787850318050995031.jpg
Thumbnail of the uploaded file named 15983715796336989106048411608044.jpg
Thumbnail of the uploaded file named 15983716004998133738840558729695.jpg

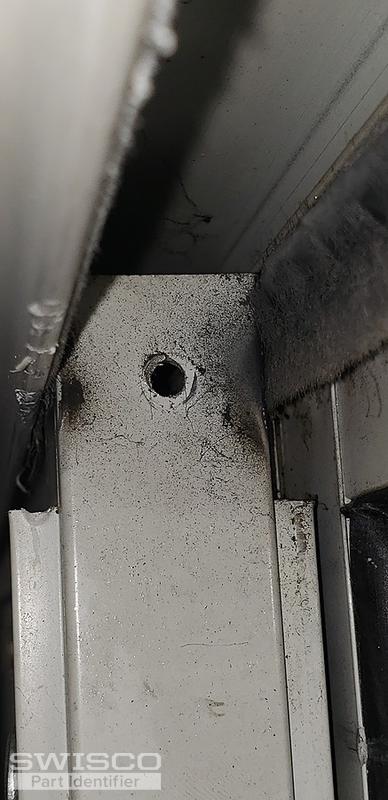

Thumbnail of the uploaded file named 15983716446774800428130694769581.jpg
Profile picture of Casey
Casey from SWISCO responded:


It looks like our 82-002 handle set and 88-002 pull could be a match for the parts in one of your photos, depending on how the dimensions on our product pages compare to the original hardware.

Unfortunately, there is no way for us to recommend or even narrow down your replacement options for the rollers in this door without seeing one of them fully removed. If you're able to remove one and send us a photo with the height and thickness of the housing, we'd be happy to research your replacement options. Thank you!
