Patio door lock

A home owner from N. Ft Myers, FL says:
Lock system from patio door on a manufacturer home 1986

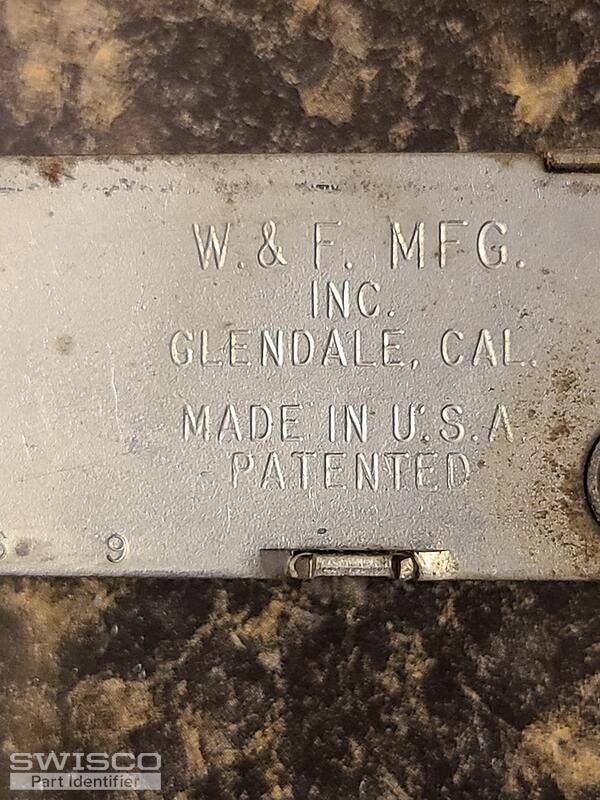

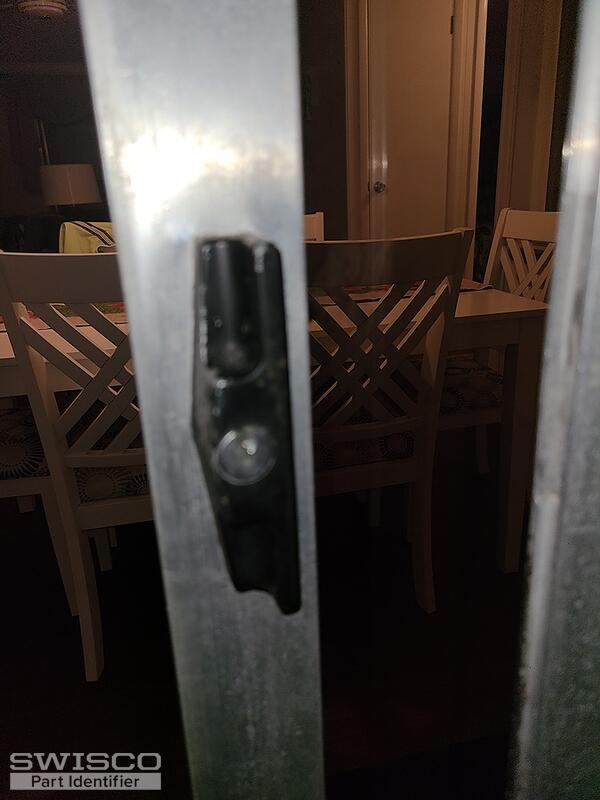

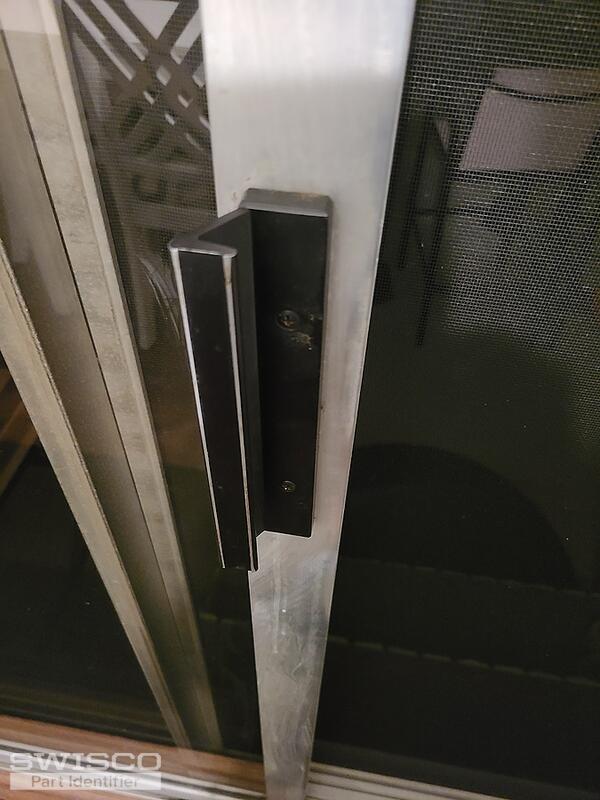

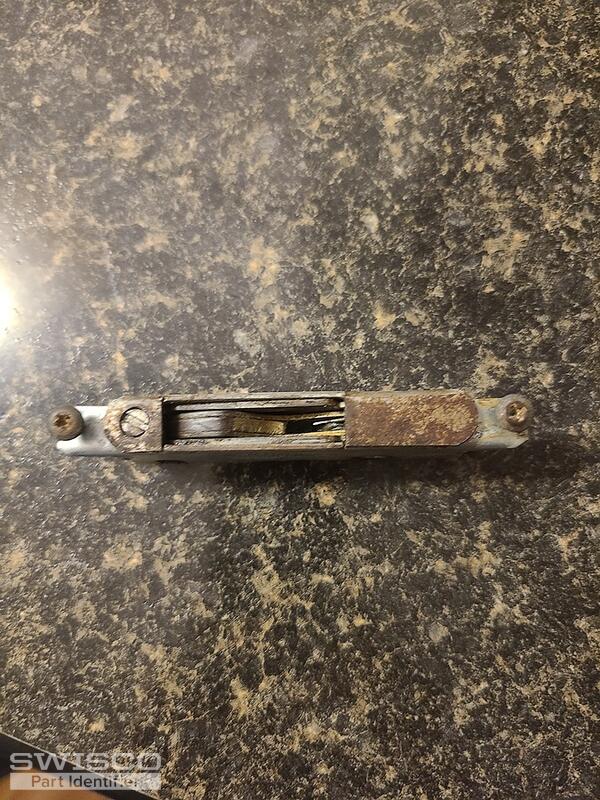

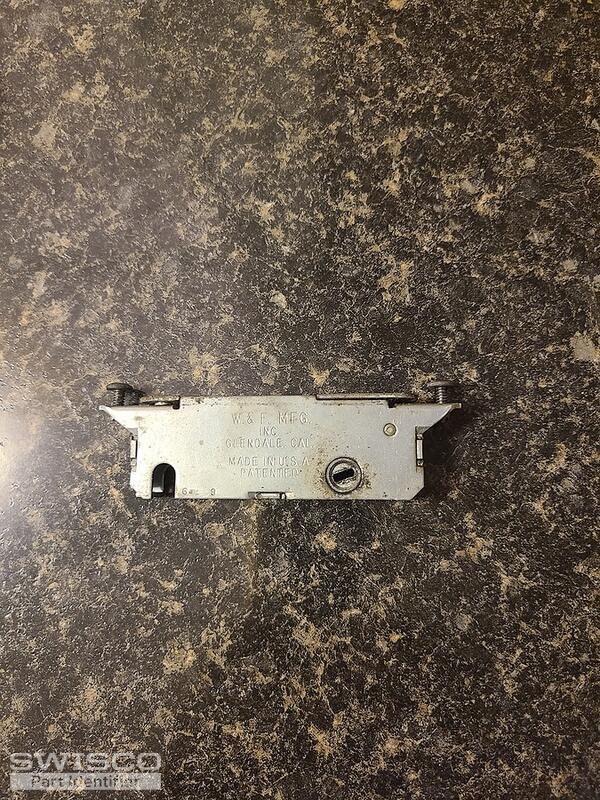

Thumbnail of the uploaded file named 16499044709044167688528505617991.jpg
Thumbnail of the uploaded file named 16499045095308285749950245340067.jpg
Thumbnail of the uploaded file named 16499045491364776282689497062819.jpg
Thumbnail of the uploaded file named 16499045843048800503764188007042.jpg
Thumbnail of the uploaded file named 16499046172124354392311911217870.jpg
Profile picture of Emily
Emily from SWISCO responded:

Hi there!

Your hardware looks like a great match for the 82-218 but compare the dimensions to yours to see if you agree.

Oposite side view 82-218
Oposite side view 82-218

Profile view of 82-218
Profile view of 82-218

A home owner from N. Ft Myers, FL says:
If I order the lock does it come with a key, if it doesn't then I'll hv to oder the whole handle. Will I receive it by 4/30? I'll be leaving Florida at the end of the month.
Thank you
Profile picture of Tom
Tom from SWISCO responded:

The 82-218 does not come with a key, unfortunately, We do sell the 82-310 key lock separately, though, and this should be fully compatible with your existing handle set. Look it over and see how well it matches up to the key lock you have now.

We have both products in stock, so delivery time will depend on what shipping option you select during checkout. We offer multiple options.

A home owner from N. Ft Myers, FL says:

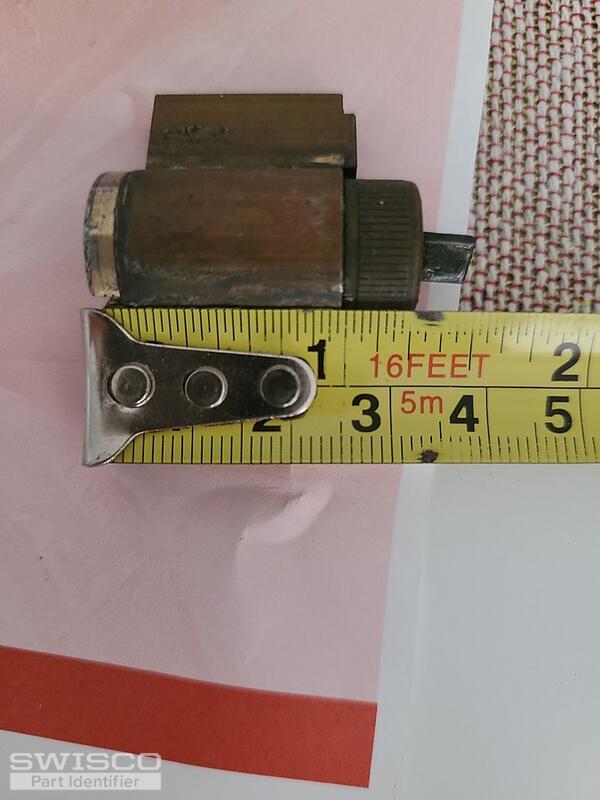

82-310 is too long compared to the one that is in there?
Thumbnail of the uploaded file named 16503299583441356457323902252130.jpg
Profile picture of Tom
Tom from SWISCO responded:

That may be an issue. The 82-310 is the only key lock we sell that is compatible with the 82-218 mortise lock.

Can you specify which part of the 82-310 is too long? Can you also tell me exactly what your measurement is compared to ours? That will allow me to confirm if it's a lost cause or not.

A home owner from N. Ft Myers, FL says:

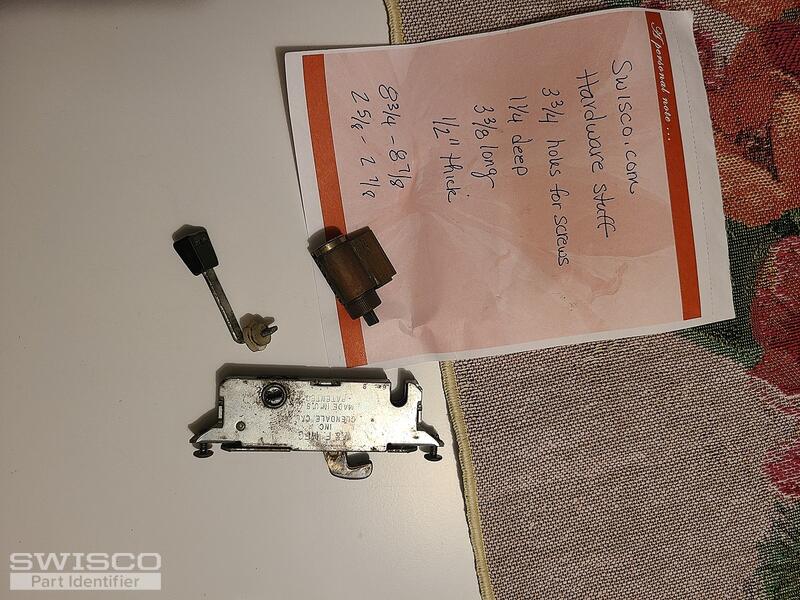

The before photo shows a piece of paper with measurements. What is your return policy? Is it possible fir someone to call me?  Thank you

Thumbnail of the uploaded file named 16503708668326881808574652238805.jpg
Profile picture of Tom
Tom from SWISCO responded:

Looking at this photo, the length of the key body appears to be 1-1/4" long, same as our 82-310 . Can you confirm this measurement? You can see detailed dimensions for our 82-310 below. Unless I'm misreading your dimensions I see no reason why our part shouldn't work.

I'm afraid I don't have a phone line and can only help you right here on this page. As for a return policy, you can see ours here .

Alternate view of 82-310
Alternate view of 82-310
A home owner from N. Ft Myers, FL says:
I would like to order the Legacy handle with the lock and key, in black please and also order the Mortise lock with key. How quickly can that be done and how do I give you a credit card number?

thank you
Profile picture of Tom
Tom from SWISCO responded:

You can place an order for those parts directly on our site, actually. All parts are available for purchase at your convenience.

A home owner from N. Ft Myers, FL says:
So i need for clarification:

82-218
82-310

I need number for the Legecy handle/lock itself please. Shown in video how to install.
Profile picture of Tom
Tom from SWISCO responded:

Sure, the Legacy lockset is our 82-087 .
