Patio door parts

Home Owner from CA

Oct 24, 2021 4:51 pm

I would like to change out my sliding glass door handle for one that has a key lock on the outside. Can you tell me which one I need to buy? I have added photos of my current door handle.

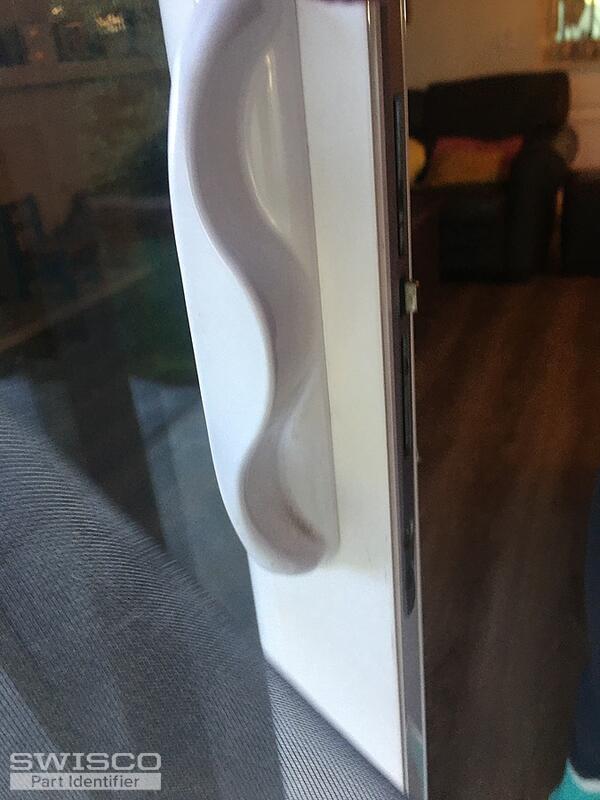

4 user uploaded images

3 Replies

+ Add a Comment

Emily from SWISCO

Oct 27, 2021 3:30 pm

EXPERT

Hey there!

Take a look at our 82-081 keyed handle set with 4-15/16" hole center spacing and see if our dimensions match up to your original assembly.

Home Owner from CA

Oct 27, 2021 5:23 pm

I don't think this is the right key lock handle. Can you suggest another one based on the measurements in the photo?

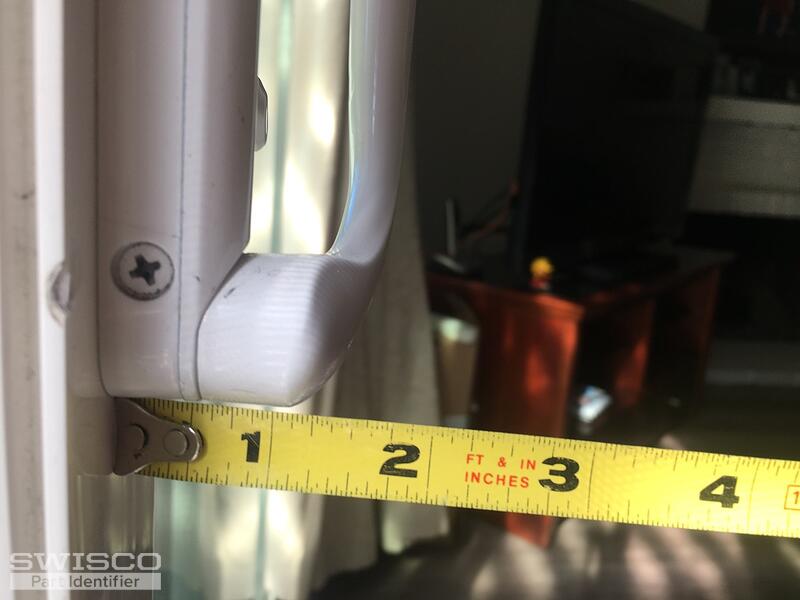

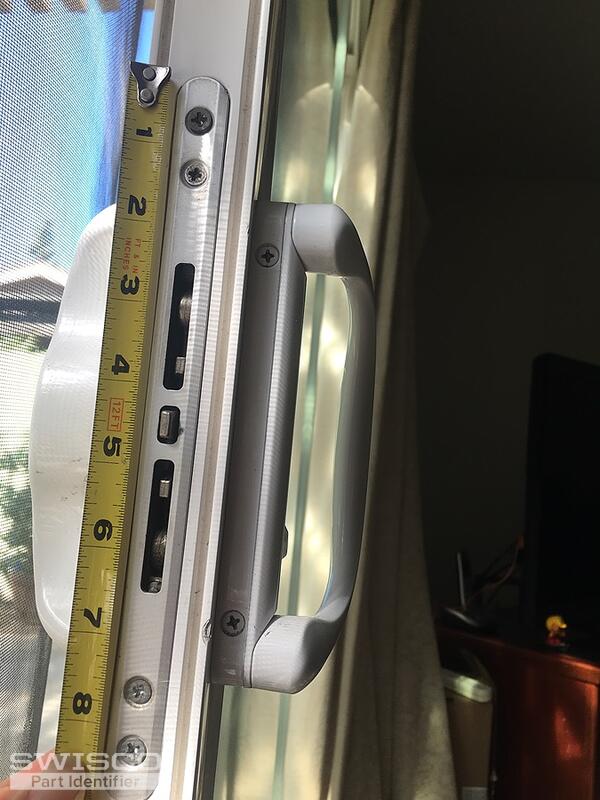

2 user uploaded images

Emily from SWISCO

Oct 28, 2021 8:46 am

EXPERT

It's difficult to discern accurate measurements from a picture of a tape measurer I'm afraid. The most important measurement to focus on is the hole center spacing, as shown below. Ours is 4-15/16" so double check your measurements and see if this matches what you need. You can use the pictures on the 82-081's store page as a reference for what to measure.
