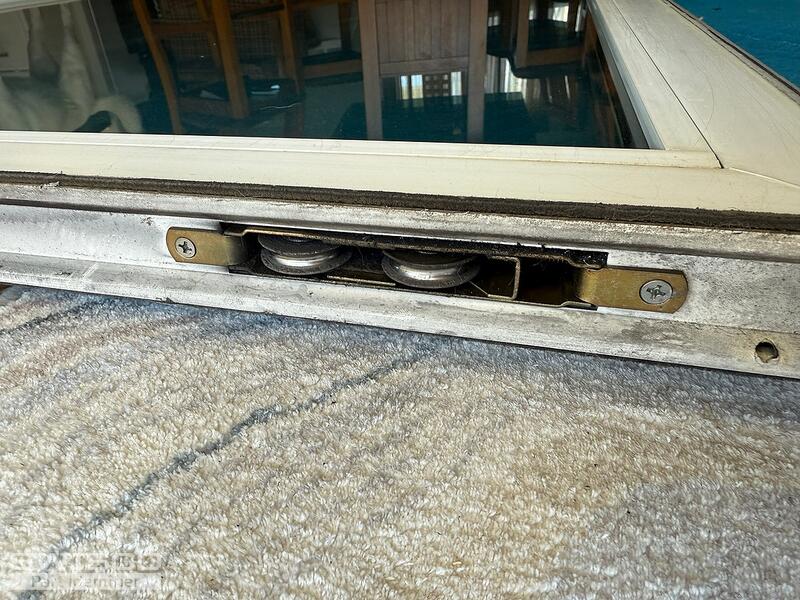

What replacement roller do you recommend for my ~25 year old sliding pation door? There are two sets of these rollers on my door.

5 user uploaded images

4 Replies

Jasmine from SWISCO

Nov 21, 2025 1:02 pm

Hello,

Thanks for posting! This roller appears to be a match for the 81-156 Patio Roller Assembly. To confirm that these are the correct match, review and compare the dimensions below.

The 81-156SS is the stainless steel version of this roller.

Alternate image for 81-156

Handy Person from Buena Vista, CO

Nov 21, 2025 1:29 pm

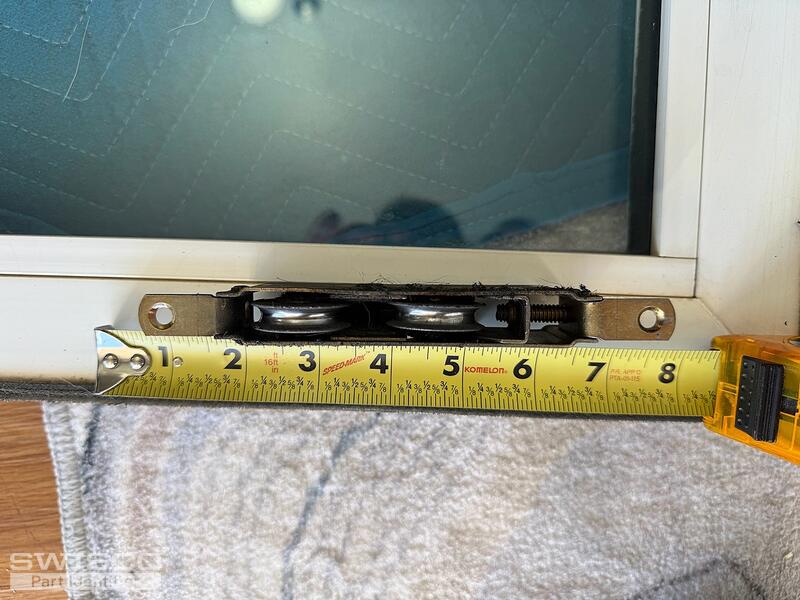

The distance between the screw holes on mine is 6-3/4", And the replacement model that you are recommending measures 5-3/4" between screw holes. So I don't believe that you carry my replacement wheels.

Jasmine from SWISCO

Nov 21, 2025 2:04 pm

These are the closest replacement matches we have. The next best option we have would be to swap out the wheels on the roller. Take a look at the 81-266 or the 81-272 to see if these might work for the repair.

There are a few other options in our Patio Glass Door Replacement Wheels and Axles. The wheels sold individually will also require the 81-310 Roller Axle Repair Kit.
