Patio door roller assembly

Start a new Discussion

Quick Learner from Michigan

Mar 25, 2017 12:02 pm

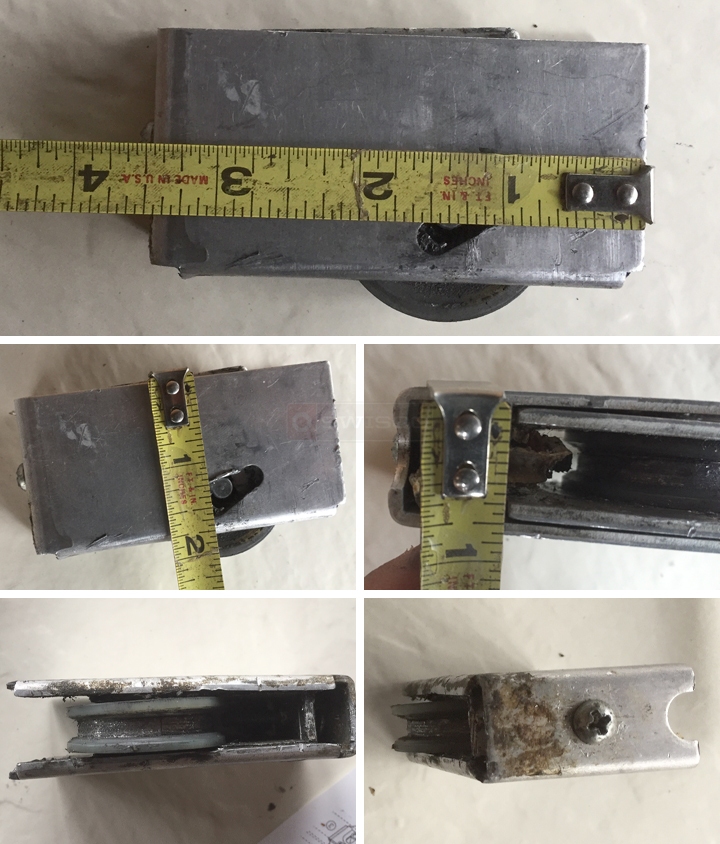

Patio door roller assembly. The wheel diameter is one and three-quarter inches.The door is presumably from the 70s

User submitted photos of a patio door roller.

4 Replies

Dave Sr. from SWISCO

Mar 31, 2017 1:39 pm

I'm not sure what to recommend. I had a few questions first: what holds the roller housing into the door? Also, do you know the manufacturer? In the meantime, take a look at the 81-039 roller. I have a a hunch something like this might work for you. Look it over and see what you think.

Quick Learner

Apr 1, 2017 10:07 am

The only thing holding in the roller assembly is two screws at the end of each door and a small plate. I have looked all over this door and I cannot find a manufacturer label

Dave Sr. from SWISCO

Apr 5, 2017 1:48 pm

Could you send us a photo of the door where the wheel is installed. If you were to use the 81-039, would the mounting screw go into the hole on the tab? Also, would the location of the adjustment screw match up to yours? Your roller looks old and worn and I would suggest just replacing the wheel and axle with something like our 81-272, but because you have some wear on the sides where the axle would could be a problem.
