Patio door roller replacement - need to identify

Quick Learner from Marco Island, FL
We need to identify this roller to replace them.  Its a 1 1/2" diameter wheel, the housing is 2 1/4" long, 1 7/16" high, and 13/16" wide.  From the top of the housing to the top of the flare is 13/16", the flare is 5/16" and below the flare is 5/16".  Thanks for your help!
1 user uploaded image
6 Replies
Lauren
Lauren from SWISCO
SWISCO
Expert

Hello, thank you for posting,

To further review, are you able to provide additional angles of the roller assembly. We will need to see the back end of the roller where we can view the installation hole and adjustment screw placement. From there we can compare to our selection to determine if we can supply a direct fit. Thank you!

Quick Learner from Marco Island, FL

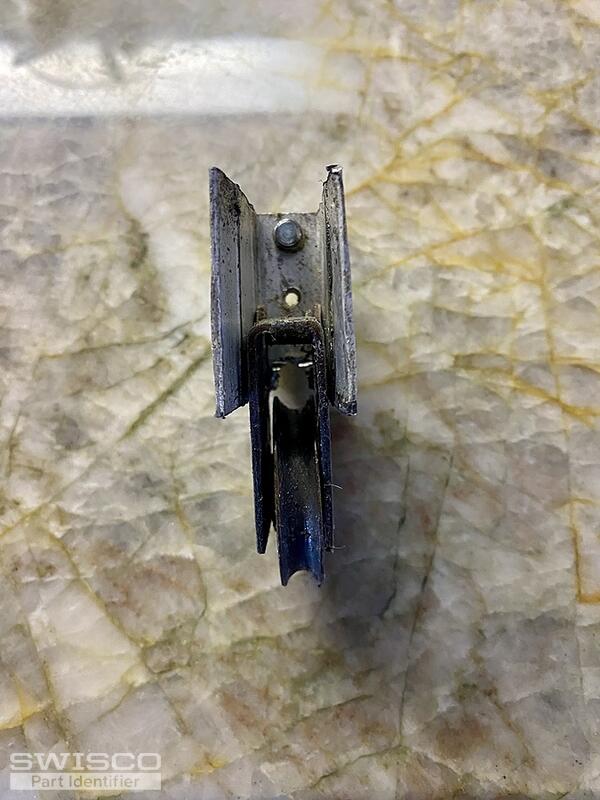

Lauren - here are the additional photos that you requested.  Thanks for your help in identifying the rollers we need.
3 user uploaded images
Lauren
Lauren from SWISCO
SWISCO
Expert

Thank you,

I am hesitant we can supply a direct match. The closest we carry in style is the 81-289, but the dimensions provided are not an exact match to the roller housing. Please double check below to see how they compare. Let me know what you think!

Detail of 81-289
Detail of 81-289

Alternate view of 81-289
Alternate view of 81-289

Quick Learner from Marco Island, FL
Lauren - do you know the measurement on the 81-047 roller (SWISCO.com: Sliding Door Roller Assembly, 1-1/2"dia. Concave BB) from the top of the housing to the top of the flare?  Also how high is the flare (e.g., 5/16")??  Thanks for your help!
Dave Sr.
Dave Sr. from SWISCO
SWISCO
Expert

The 81-047 sliding door roller assembly is the Disco 1119 roller. From the top of the housing to the top of the flare is 7/8", the flare appears to be 5/16" and below the flare is 1/4". The complete width of the roller with flares is 7/8" wide. I hope this has answered your question.

Alternate image for 81-047
Alternate image for 81-047
