Patio door rollers

Quick Learner from Wilmington, NC
Patio door rollers - I need a pair!

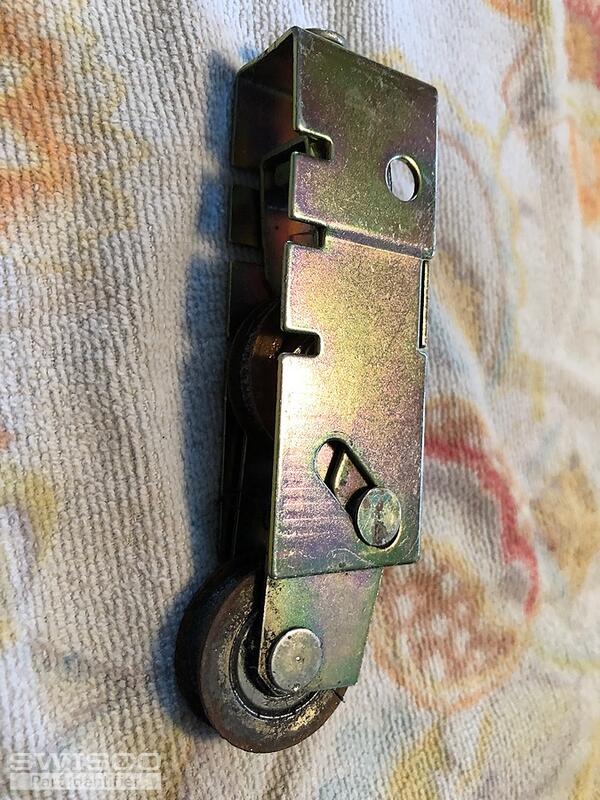

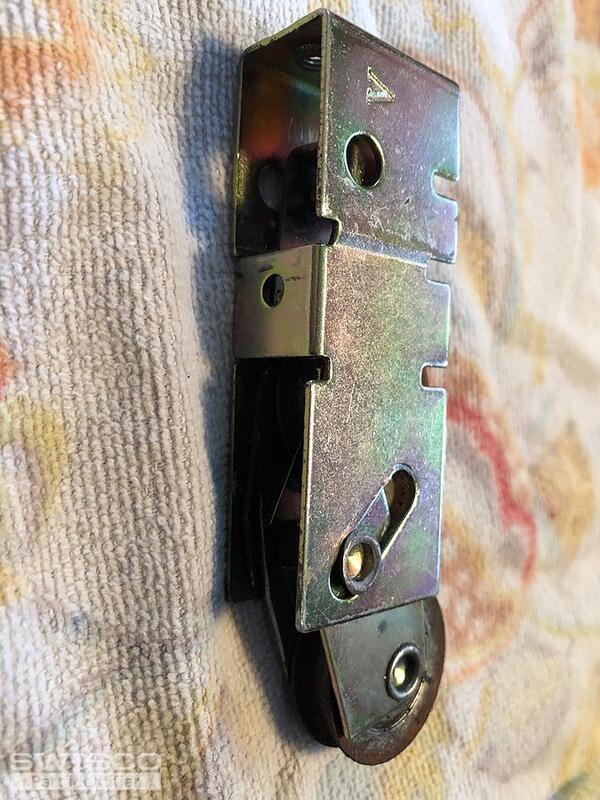

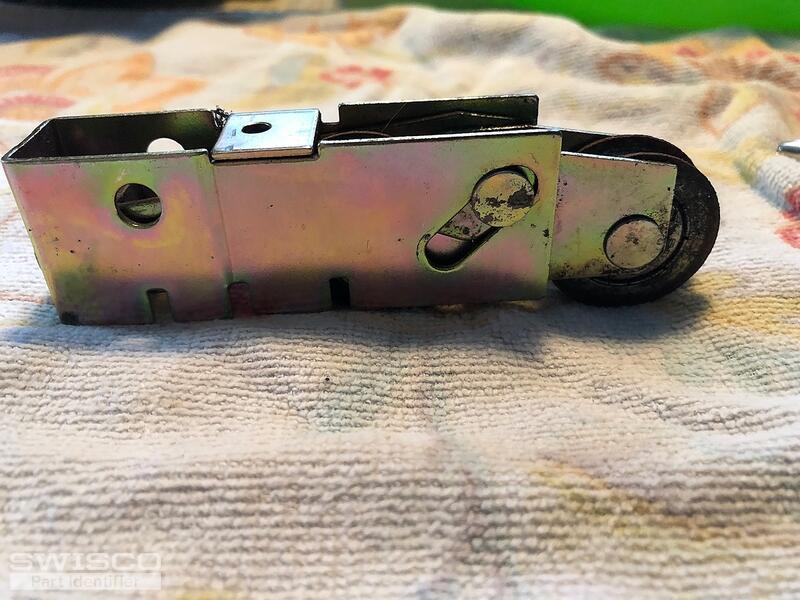

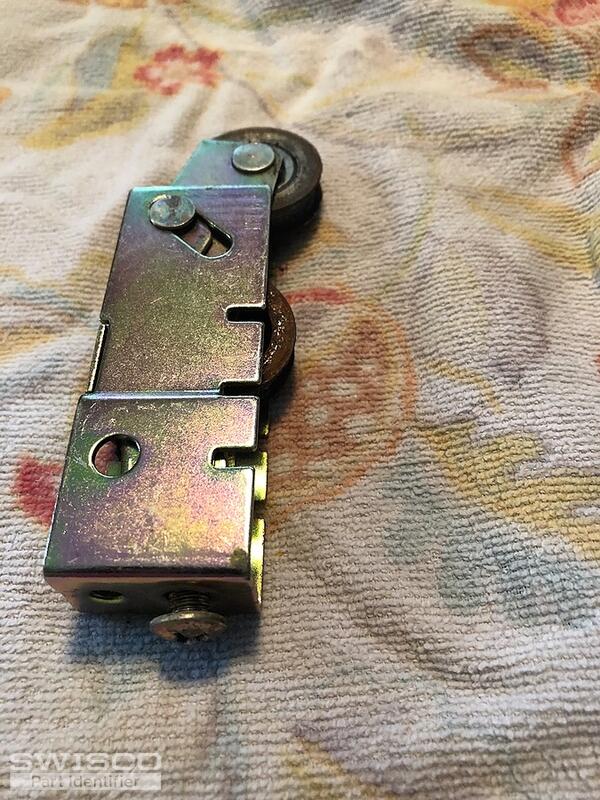

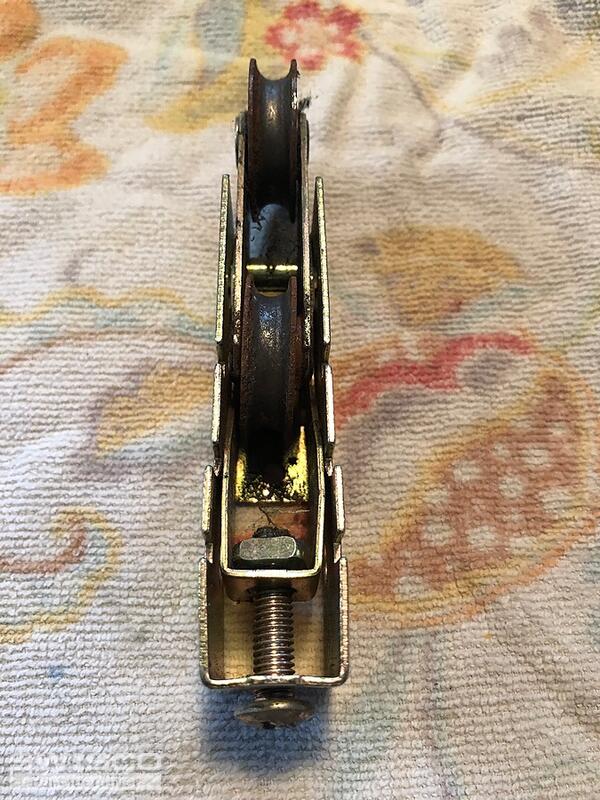

These are 1-1/8 inch high by 11/16 wide, with 1-1/8" tandem wheels
5 user uploaded images
2 Replies
Casey
Casey from SWISCO
SWISCO
Expert

Hello,

Your roller reminds me of the 81-030 except ours has a 3/4" wide housing and 1-1/4" wheels. In some cases, the roller adjustment can make up for the difference in wheel size but you would still need to make sure the housing width will work for yours. If the wheel size is still a problem after adjusting it, you could also replace the wheel with the 1-1/8" diameter 81-223 and 81-310 axle kit. Take a look and see what you think.

Reply to Thread
Current Photos:
