Patio door rollers

Handy Person from Michigan
Aug 29, 2023 1:27 pm
Sliding glass patio door dates to 1966. Original rollers are all-steel and door weighs at least about 100lbs.
Wheel outer diameter = 1.25"
Wheel thickness = 0.3"
Wheel bearing diameter = 0.6"

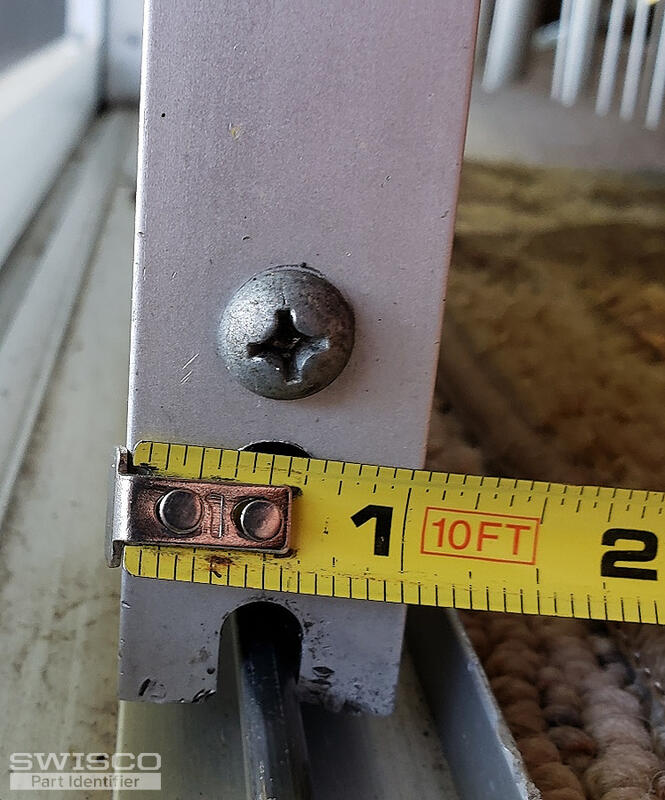

Frame width appears to be 3/4" to 7/8" (not directly measured - see photo 05)
Vertical distance from mounting screw center to adjustment screw center is about 9/16" to 5/8".

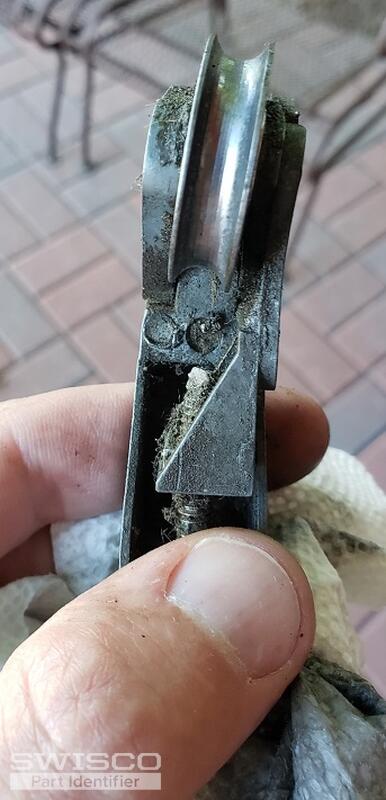

06 Door frame height relative to frame bottom 07 Door frame height relative to track bottom 02 trolley 04 trolley 05 Door frame width
5 user uploaded images
3 Replies
Handy Person from Michigan
Aug 29, 2023 1:32 pm
A couple additional photos are attached. If you think the wheel may be replaceable and that it would be the best option in this situation, I am certainly open to that.

Wheel thickness = 0.30"
Wheel outer diameter = 1.25"
Wheel O.D. at the concave middle = 1.0"
Wheel spindle diameter = 7/16"
Wheel bearing O.D. = 0.60"

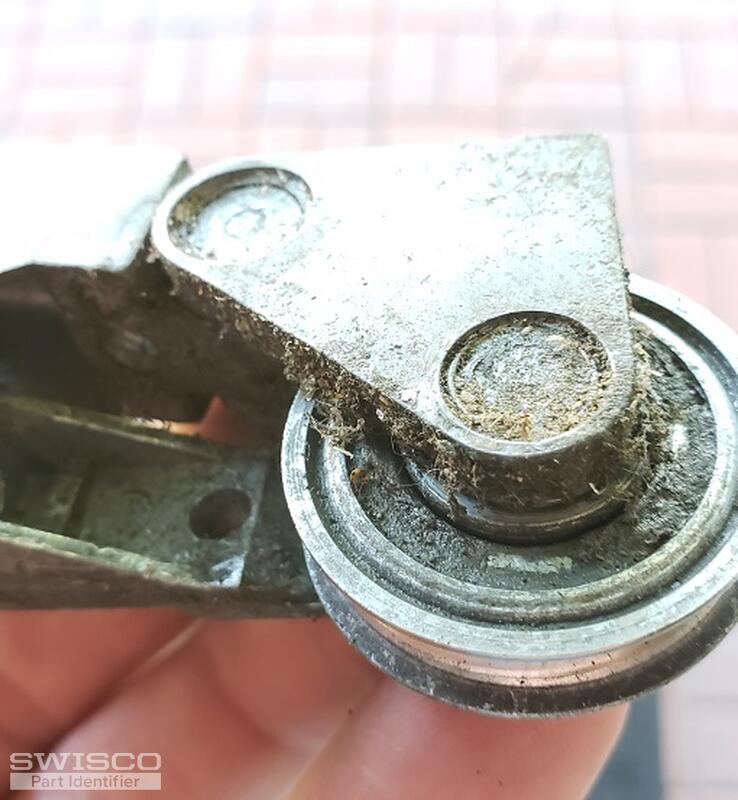

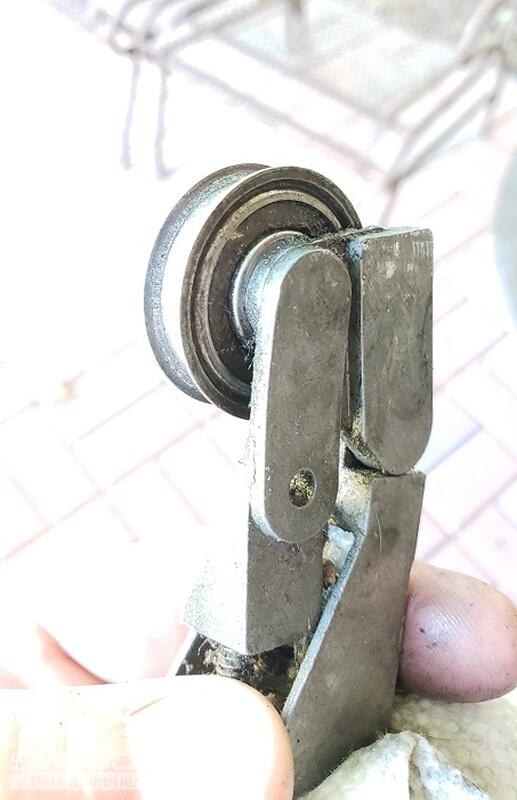

03 trolley 01 trolley
2 user uploaded images
Emily
Emily from SWISCO
Aug 31, 2023 11:49 am
SWISCO
EXPERT

Thank you for reaching out to us. Our 81-129 roller appears to be similar in design. Take a look at the specifications below and see what you think.

Let us know if you have any questions!

Alternate image for 81-129
Alternate image for 81-129

Handy Person from Michigan
Sep 8, 2023 12:48 pm
Thank you, Emily. That product is very close to what I have. Wheel diameter is off a little, but may still work. I will check a little more carefully to see if anything you have is closer, and then buy. If these work well I will notify the neighbors, many of whom have the same sliders from the late 1960's and could probably use replacement. -Matt
