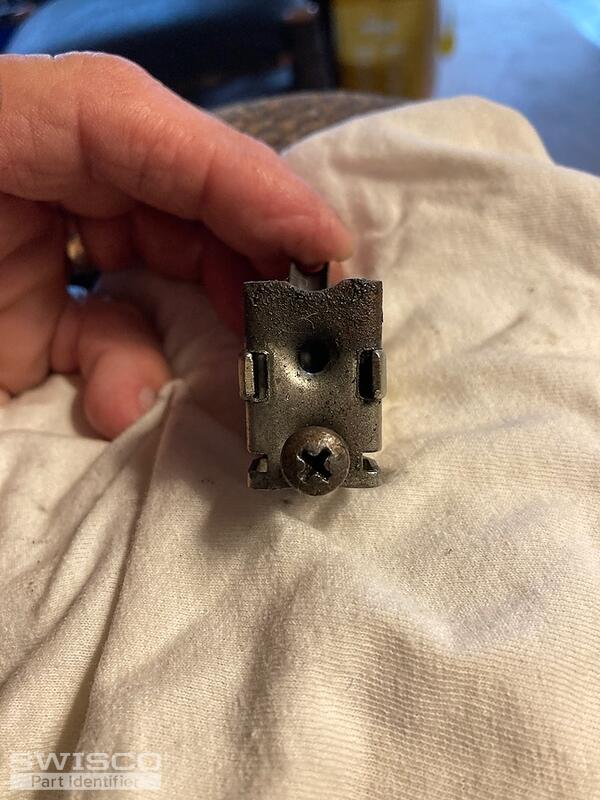

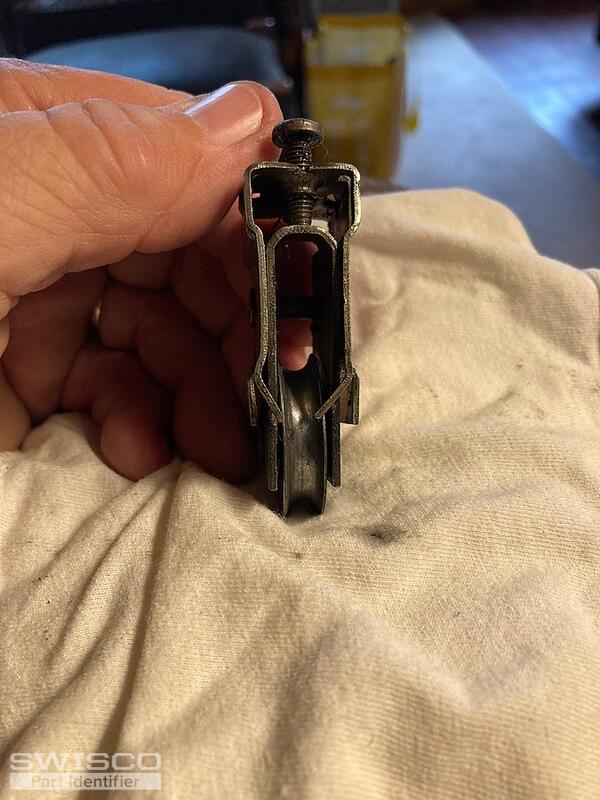

Two rollers marked with
Product of Del Mar Eng Co
Long Beach CA
Pat 3,670,357
Both have failed and the door barely moves. Need to locate and purchase two rollers.
Patio door rollers

Quick Learner from Mio MI
Oct 14, 2024 9:20 am
5 user uploaded images
4 Replies

Bob from SWISCO
Oct 14, 2024 3:50 pm


Hello there. This looks a bit like our 81-033. Compare the dimensions and let me know if anything differs.

Alternate image for 81-033

Quick Learner from Mio MI
Oct 14, 2024 5:34 pm
Honestly I believe I have 1 5/32" for a height. Given the fit of this roller in the door I suppose that extra 1/32" matters. Your thoughts or comments?

Bob from SWISCO
Oct 18, 2024 12:18 pm


The height of the housing differing can pose an issue for installation into the frame. Unfortunately this size is the best we can supply.
We cannot guarantee it will fit correctly. If the housing is able to be reused, another option to consider would be switching out the wheel using the 81-266 roller and axle kit. Let us know if you have any additional quesitons.
Our return policy can also be viewed here.
