Patio door won't lock

A quick learner from USA says:
December 22, 2016
I need help with my patio rolling door.
I sent photos. This metal latch installed on another side of door frame is 4 inches in height.
The distance between hole centers is 5 inches.
Total height of wooden handle is 10 inches.
This inside metal piece is 6 inches in height
Do you need to see picture of this handle.

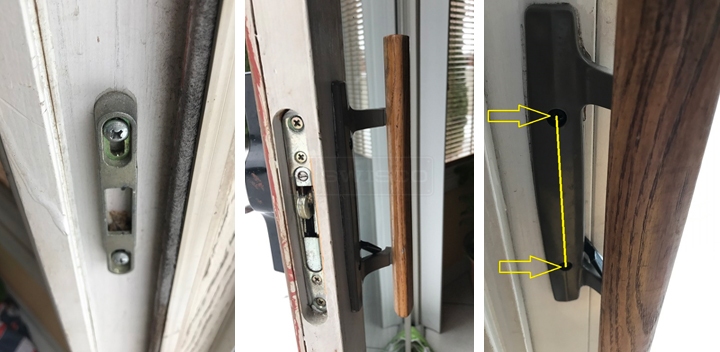

User submitted photos of patio door hardware.
Profile picture of Paul
Paul from SWISCO responded:
January 3, 2017
You might need a new mortise lock like our 82-227. A good way to test this is to remove the handle entirely and try to manually throw the mortise lock with a screwdriver. If it still doesn't turn, then that's the part that needs to be replaced.
Mortise Lock, 5-3/8"
Mortise Lock, 5-3/8"
82-227
$14.94
How to install the 82-218 Mortise Lock
How to install the 82-218 Mortise Lock
VIDEO
WATCH >
How to maintain a sliding glass door
How to maintain a sliding glass door
GUIDE
READ >
