Patio screen door. Roller

A home owner from North St. Paul MN says:
June 8, 2021
Do not have maker.but a keystone certification
Car: 007-141
Model: R5901/R6001. Patio door
Rating: SD-R35. 1819x2067 (72 x81)

Looking for part and if possible maker

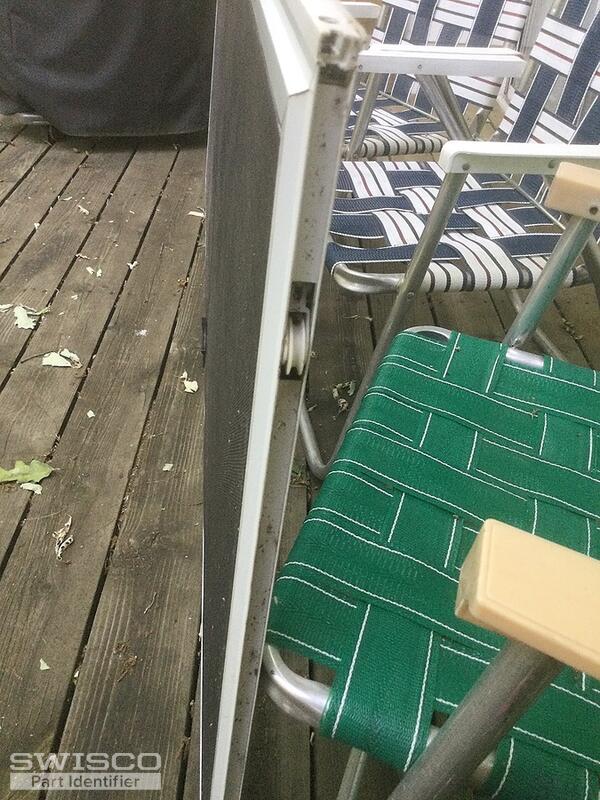

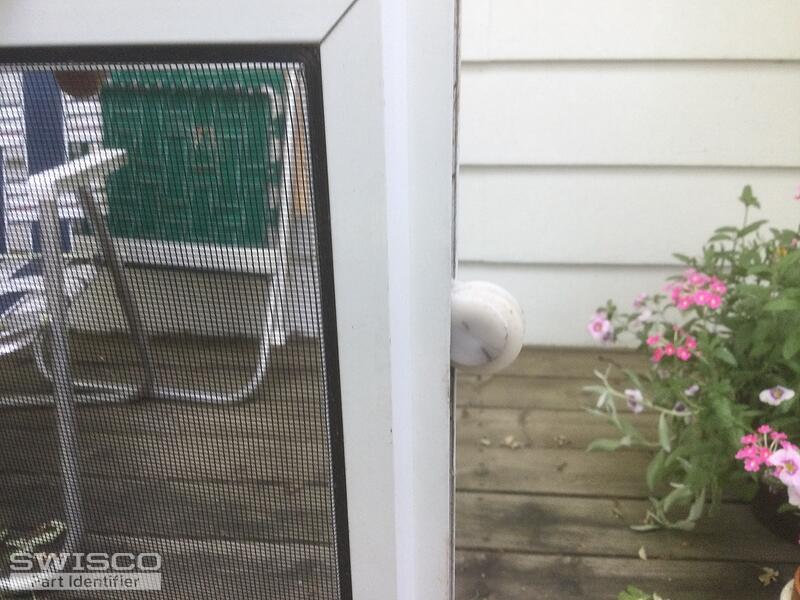

Thumbnail of the uploaded file named A8C03133-1CD4-44DB-96EE-120288B79E29.jpeg
Thumbnail of the uploaded file named D5BA4227-830F-477D-8239-A9758A439B55.jpeg
Thumbnail of the uploaded file named 1DA73B55-F3D2-48A6-AF00-09587CD4CEE0.jpeg
Profile picture of Tom
Tom from SWISCO responded:
June 14, 2021

I'm afraid those codes don't tell me what this part is, or who made your door. That said we carry a ton of screen door rollers and I'm confident we can get you a match. Before I recommend anything, can you tell me the diameter and thickness of this wheel? Can you also tell me the inner diameter?
A home owner from North St. Paul MN says:
June 18, 2021

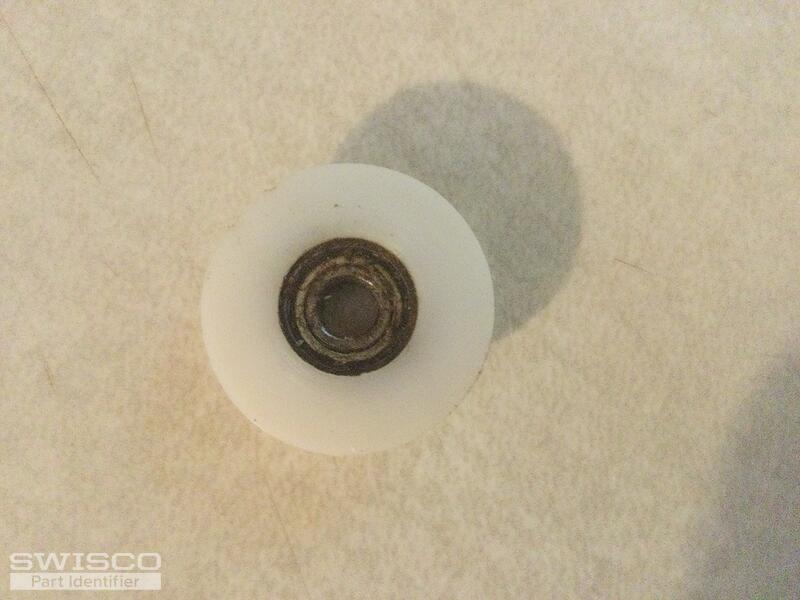

The white plastic wheel is one inch in diameter and 1/4 inch thick. It has a metal center 7/32 inch in diameter. It has a V or a U on the edge at the outer diameter so that the wheel rides on a metal ridge.
Profile picture of Tom
Tom from SWISCO responded:
June 18, 2021

Thank you very much. We have two wheels that may be worth considering: our 84-017 and 84-057. Look these over and see if you could use either one to repair your screen door.
1" Screen Door Roller Assembly
1" Screen Door Roller Assembly
84-017
$2.97
1" Screen Door Wheel Assembly
1" Screen Door Wheel Assembly
84-057
$1.92
How to install the 84-017 screen door roller assembly
How to install the 84-017 screen door roller assembly
