Patio sliding glass door lock trouble

Quick Learner from U.S.A.

Aug 7, 2020 9:13 am

My latch on my sliding door doesn't go up and down all the time and if it does it doesn't catch the hook on the opposite side to lock.

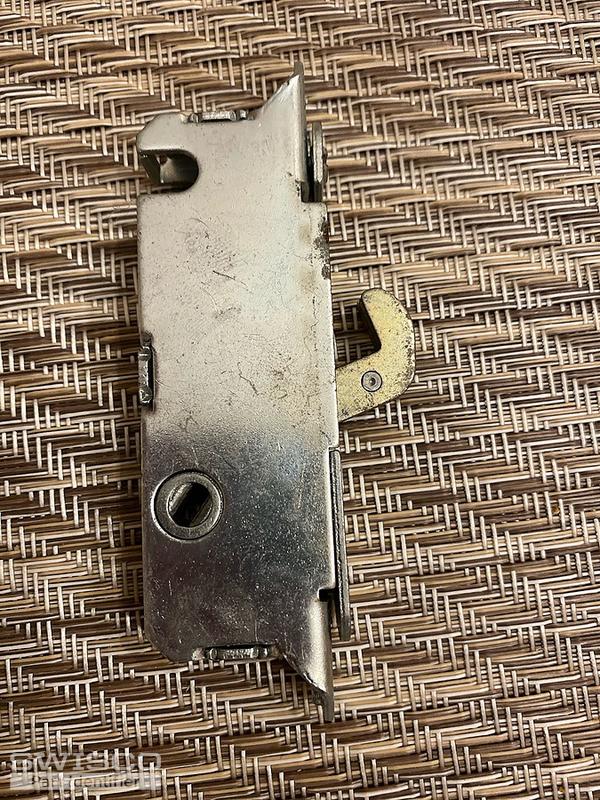

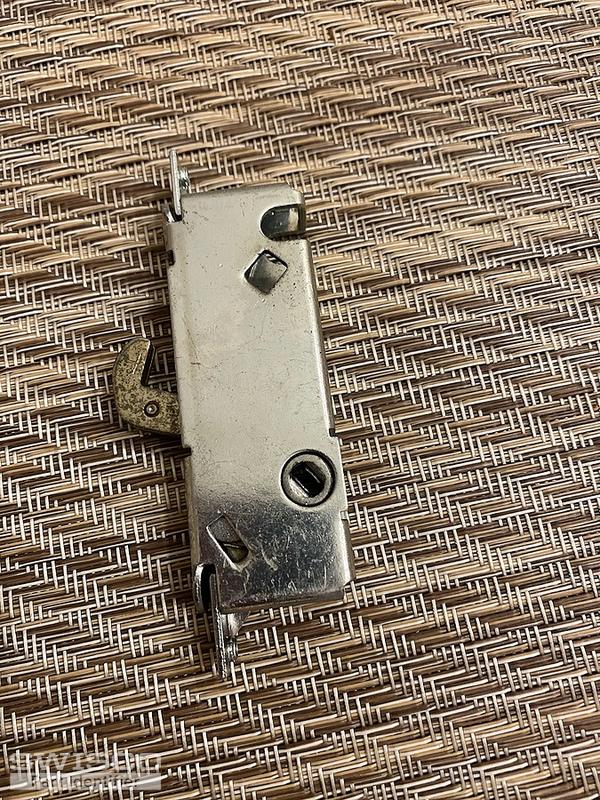

3 user uploaded images

5 Replies

Quick Learner from U.S.A.

Aug 7, 2020 11:26 pm

Her are additionally photos. Hope this will help.

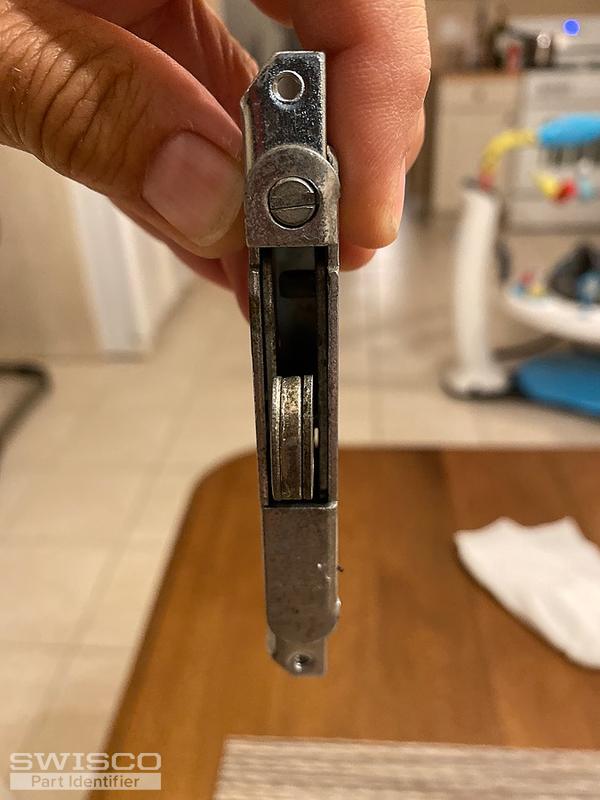

3 user uploaded images

Bob from SWISCO

Aug 11, 2020 9:36 am

It certainly sounds like you need a new mortise lock. See the 82-226. This has the same body as the mortise lock in your photos (our 82-218), but features the face plate as well. Take a look and see what you think.

Quick Learner from U.S.A.

Aug 11, 2020 10:22 am

Hi thank you so much! Is that the correct keeper I have or is there a better one I should buy!?

Bob from SWISCO

Aug 11, 2020 1:02 pm

That keeper does look a little unusual from what we normally see with this style mortise lock. If it's worked for you I don't see any issue in continuing to use it; but otherwise, see our 89-020 or 89-021. These are the styles more commonly seen with this type of lock.
