Patriot "Liberty" Series Pivot Lock

A contractor from Virginia says:
August 27, 2023
I have vinyl windows in a 1997 era Ryan Homes house which are the Liberty series from Patriot manufacturing in NJ. Several pivot locks are broken apart and need replacement. The primary height (without the projecting cam) is 2-1/32". With the projecting cam it is 2-1/8". It is 1-1/4" wide. It is .5365 inches thick on my micrometer, so just a hair over 17/32. The cam channel hole is 5/16 x 3/16. I am inclined to go with the 15-015 as it appears to be the best match size-wise, but the "style" is definitely different (more like the 15-118 ).

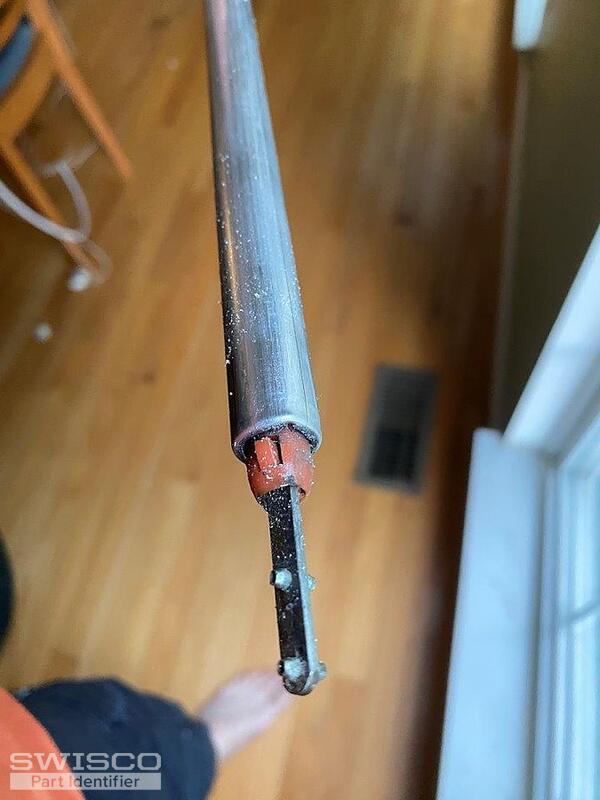

The spiral balance tubes are .5725" OD and have an orange (perhaps red) tip.

I appreciate your help with making a recommendation for the most appropriate pivot lock.

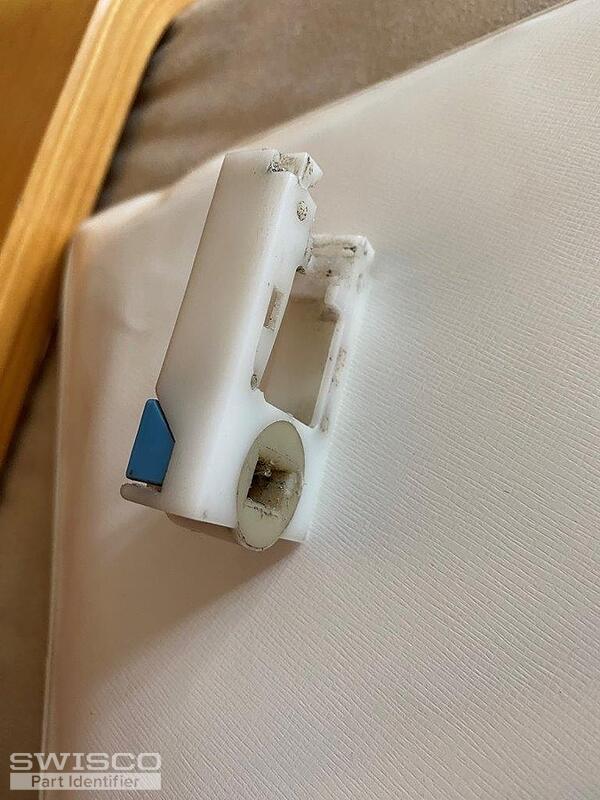

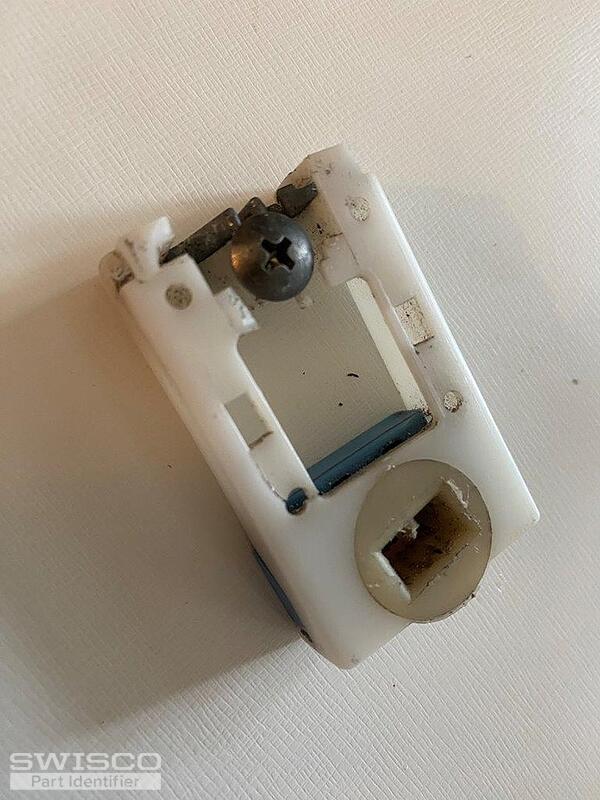

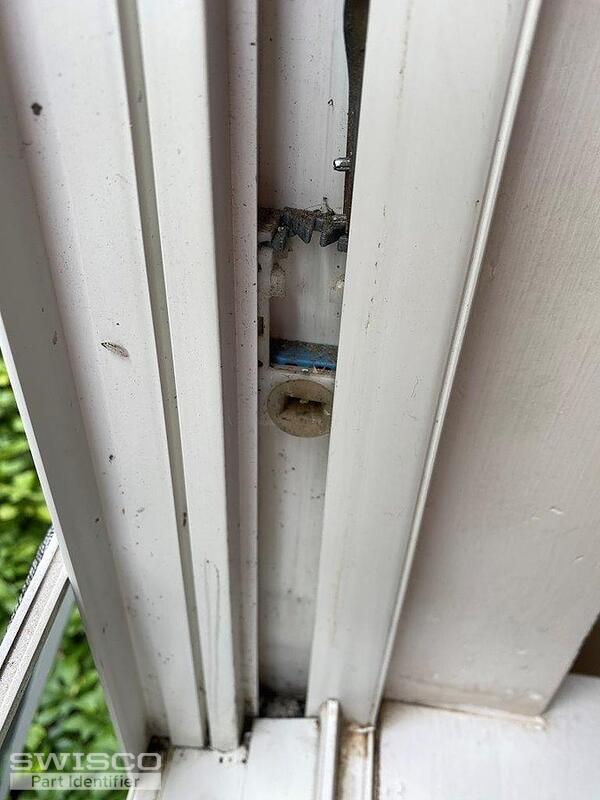

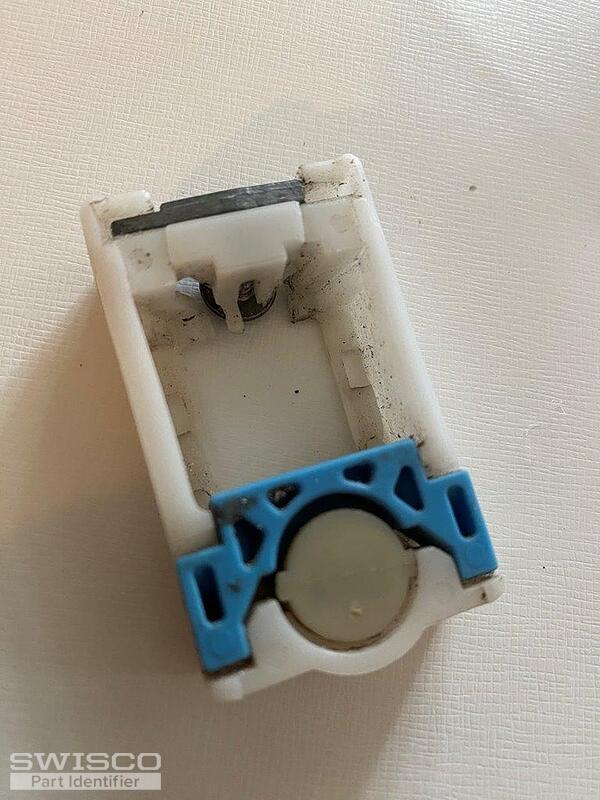

Thumbnail of the uploaded file named IMG_0115.jpg
Thumbnail of the uploaded file named IMG_0116.jpg
Thumbnail of the uploaded file named IMG_0121.jpg
Thumbnail of the uploaded file named IMG_0122.jpg
Thumbnail of the uploaded file named IMG_0123.jpg
Profile picture of Bob
Bob from SWISCO responded:
August 27, 2023

Thanks for posting. Based on the design of the pivot shoe, I think the 15-118 is the better match. 9/16" is still awfully close to the thickness you're reporting. You can always double-check another shoe to be safe. Either way I think you'll find this the better potential match; that 'offset' face in the 15-015 is seen in older versions of it, so the fact your old shoe lacks that design makes me think it won't work. Let me know if you have further questions.

Alternate image for 15-118
Alternate image for 15-118

A contractor from Virginia says:
August 28, 2023
To double check, I stacked a couple of 1" washers around a magnet to thickness of 0.5615" and it barely fit in the channel (with some force). 9/16" (0.5625) would definitely be too thick.
Profile picture of Bob
Bob from SWISCO responded:
August 31, 2023

Gotcha, thanks for verifying. If 9/16" is too thick then the next size down would be our 17/32". The design of that shoe still doesn't match your old shoe as closely as I'd like, but the numbers don't lie. The 15-015 may still be your best option.

Pivot Shoe, 17/32" Thick
Pivot Shoe, 17/32" Thick
15-015
$1.55
Pivot Shoe, 9/16" Thick
Pivot Shoe, 9/16" Thick
15-118
$2.20
