Patten #4901475

A quick learner from Plantsville ct says:
January 24, 2023
This is the latch I need spring hidden. Patten #4901475

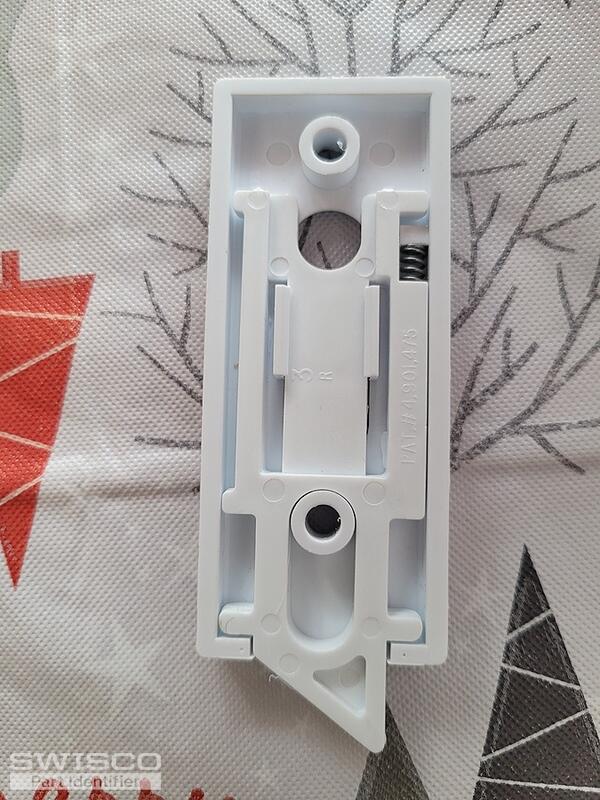

Thumbnail of the uploaded file named 20230124_124342.jpg
Profile picture of Casey
Casey from SWISCO responded:
January 25, 2023

Hello,

We'd be happy to look into this for you but we would like to see the top of the latch, as well as have you write out the exact distance between the center of the installation holes, to compare to our inventory. Thank you.
A quick learner from Plantsville ct says:
January 26, 2023
2 1/16 hole to hole 3 1/4 long.

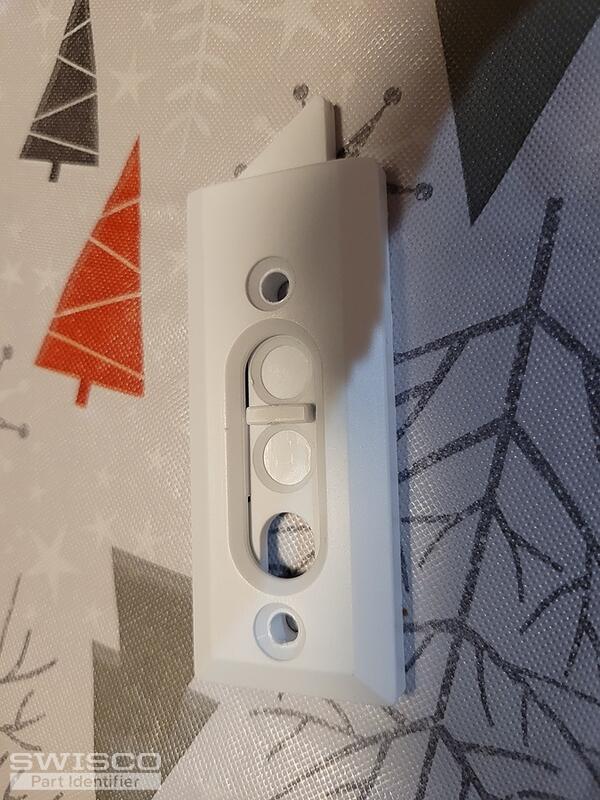

Thumbnail of the uploaded file named 16747809596122175957145688088910.jpg
Profile picture of Casey
Casey from SWISCO responded:
January 27, 2023

Thanks for getting back to us. Our closest match appears to be the 26-228 and 26-229 but the have 2-1/8" hole spacing. Take a look and see if these might work for your repair.

Alternate image for 26-229
Alternate image for 26-229
A quick learner from Plantsville ct says:
January 27, 2023
What does the underside look like
Profile picture of Casey
Casey from SWISCO responded:
January 30, 2023

Thank you for your patience. We were able to take a photo of the back of the 26-229 tilt latch shown below. Please let us know if you need anything else.

Latch back
Left Hand Tilt Latch, 2-1/8"
Left Hand Tilt Latch, 2-1/8"
26-228
$1.97
Right Hand Tilt Latch, 2-1/8"
Right Hand Tilt Latch, 2-1/8"
26-229
$1.97
LH Top Tilt Latch, 2-1/8"
LH Top Tilt Latch, 2-1/8"
26-120
$2.43
