Peach Tree Patio Door Wheel Housing Replacement

Quick Learner from New York

Jun 11, 2021 12:56 pm

Hi.

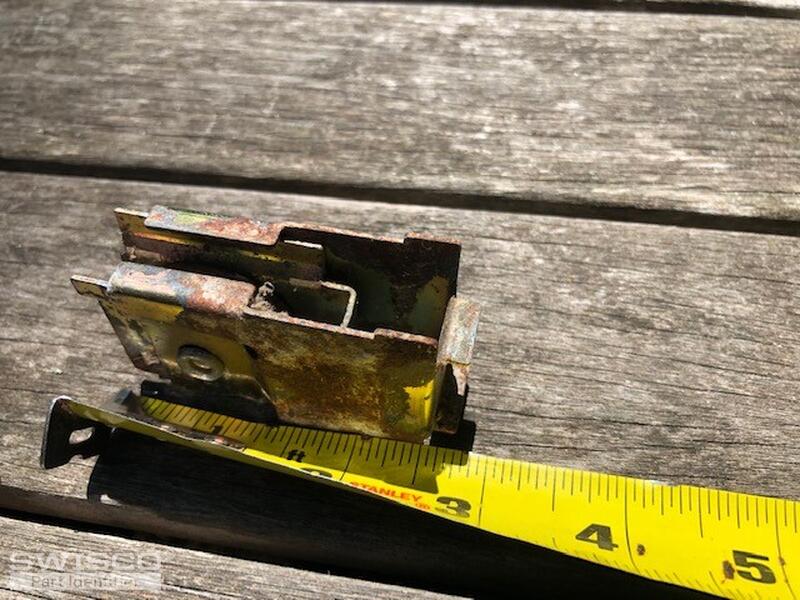

Looking to replace what seems to be the original wheel housings from what seems to be a Peach Tree door (only evidence is on the door handle).

'1781' is the only identification I can find on the wheel housing.

Dimensions are 2 12/16 x 1 1/16 x 13/16 (the latter is at the widest). Wheel is 1.5 inches

Great site!! Cheers

4 user uploaded images

4 Replies

Bob from SWISCO

Jun 15, 2021 1:57 pm

Thanks for the kind words. This looks like the 81-112 Peachtree roller to me. Compare and see if you agree.

Quick Learner from New York

Jun 15, 2021 3:26 pm

Bob,

Thanks for the prompt response. I thought it close to the 81-112 as well when I looked the other day but for two differences and I was unsure on how important they were.

1. wheel is smaller - but its round! and only 1/4 inch difference.

2. size difference - for instance length is 2 12/16 (mine) vs 2 3/16 but mine is not as deep.

Length is less concerning than depth.

Thoughts?

Bob from SWISCO

Jun 16, 2021 9:06 am

How do the thickness and height compare? The 81-112 is 7/8" thick and 1-9/16" high. These, in our experience, are the most pertinent dimensions for identifying good sliding glass door roller replacements. As far as the wheel diameter, a difference of 1/4" should be within the range of adjusting the roller to make up the difference. Let me know what you think.
