Peachtree Non-tilt Balancers, 2448 and 3660

Handy Person from Hampstead
I need replacements for two different size balances for my Peachtree non-tilt Ariel windows.

One size is marked 3660 L J Caldwell. This one measures 9/16" wide X 5/8" deep with a 26 1/4" overall length. The metal on the long edges of the U-channel is doubled over.

The other is marked 2448 BSI and measures 9/16" wide X 5/8" deep X 20 1/4" overall length. This does not have the doubled over edges. The plugs to retain the cords on the 2448's are white as opposed to black and not anchored with a screw as are the ones for the 3660 balances.

Since I removed the broken units, I can provide images if they are needed.


Please advise what the replacement part numbers for these are, at your earliest convenience. At this time, I need a minimum of 3 pair of the 3660 and 2 pair of the 2448.

Many thanks,
John
A user submited photo of non tilt window balance
5 Replies
Paul
Paul from SWISCO
SWISCO
Expert
Thanks for contacting our Discussion Board, John! Unfortunately, I'm having a bit of trouble identifying these balances. May I see a picture of the attachment at the end of the string? This will help me determine what Series your have.
Paul
Paul from SWISCO
SWISCO
Expert
Thank you. These appear to be similar to our Series 745 channel balances. Please take a look and let me know what you think. Do these match up to what you need?
Handy Person from Hampstead

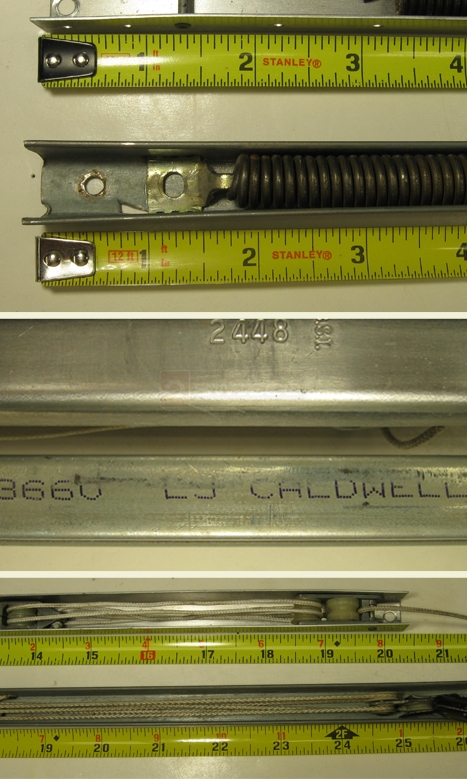

The two upper balances are the 2448 units. The stationary block & tackle is anchored with a pin through the sides of the U-channel.

The lower three images are of the 3660 units. The stationary block & tackle is anchored in the U-channel with both a reverse bent tab and a screw (not shown).

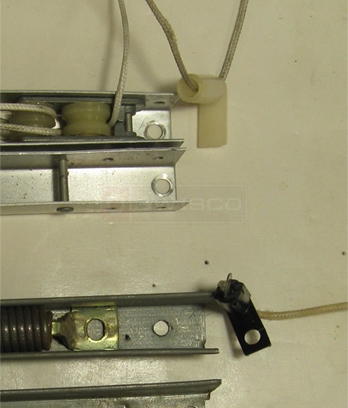

A customer submitted photo of channel balance attachments.
Casey
Casey from SWISCO
SWISCO
Expert
Hi John,
I agree with Paul, I also believe you need SWISCO 745 Series balances.

For the 20-1/4" balance stamped 2448
select option 19.25-4

For the 26-1/4" balance stamped 3660
select option 25.25-4
