Peachtree Sash lift

A handy person from Sparta, GA says:
May 4, 2016
I have a sash lift that is broken. Pictures are enclosed. I cannot find a person who can repair my window for me. Please verify my part choice - S745-32. The channel is 32 3/16" long and 9/16" wide. I do not know the sash weight.

I'm sure I can do the work myself if I get the right parts. I want 2 pieces since I will replace both sides. I would also like some instructions on how to reinstall the window once the new lifts are in place.

Thank you, Jim

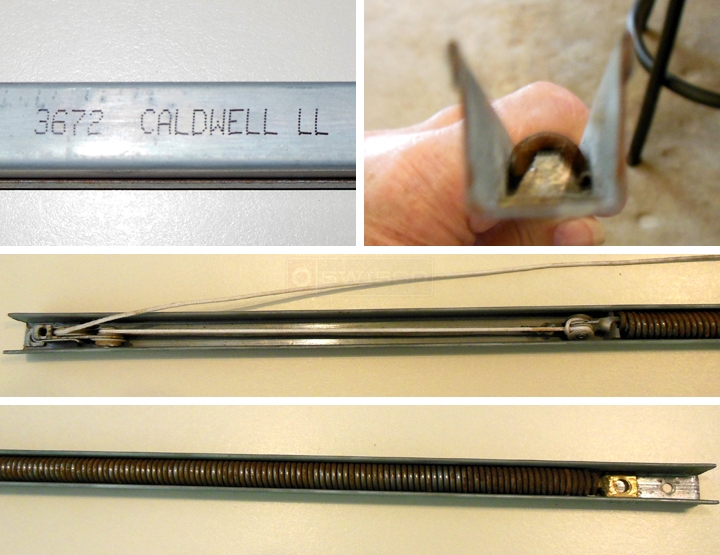

User submitted photos of a window balance.
Profile picture of Tom
Tom from SWISCO responded:
May 4, 2016
I don't know if the Series 745 can work for you. There should be a metal clip or shoe at the end of the cord. Can you show us a clear picture of this piece? That would be a huge help.
A handy person from Sparta, GA says:
May 4, 2016
Yes, there is a clip on the end of the cord. I already have 2 new pieces corresponding to the black parts in the attached photos. -Jim

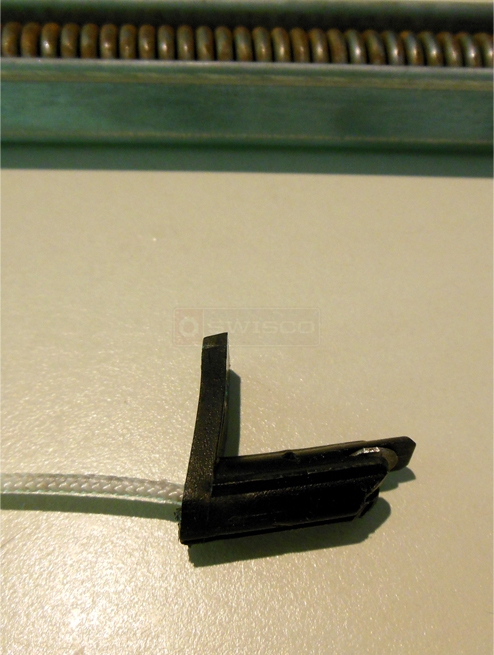

User submitted image of their window hardware.
Profile picture of Tom
Tom from SWISCO responded:
May 5, 2016
Great, thank you. Yes, that shoe seems to match the one that comes with the Series 745 balance. This is likely your best bet. To determine the best stamp option, I recommend weighing your sash on a scale and referring to the chart we have on the S745-32 store page.
