Peachtree casement window crank

Quick Learner from SAINT SIMONS ISLAND GEORGIA

Mar 14, 2023 2:38 pm

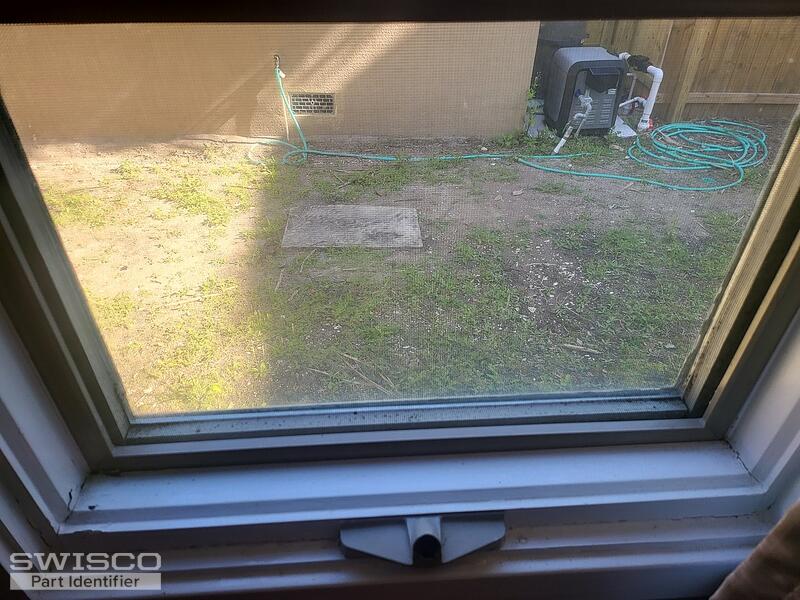

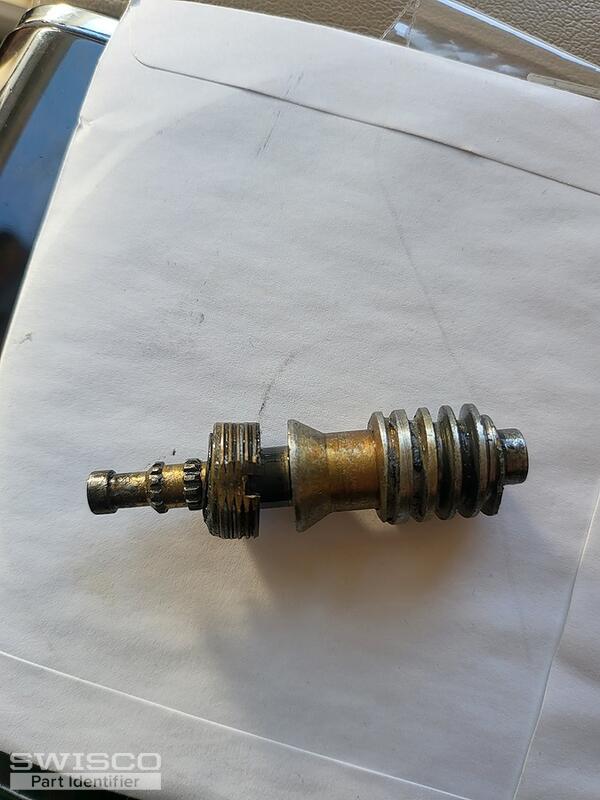

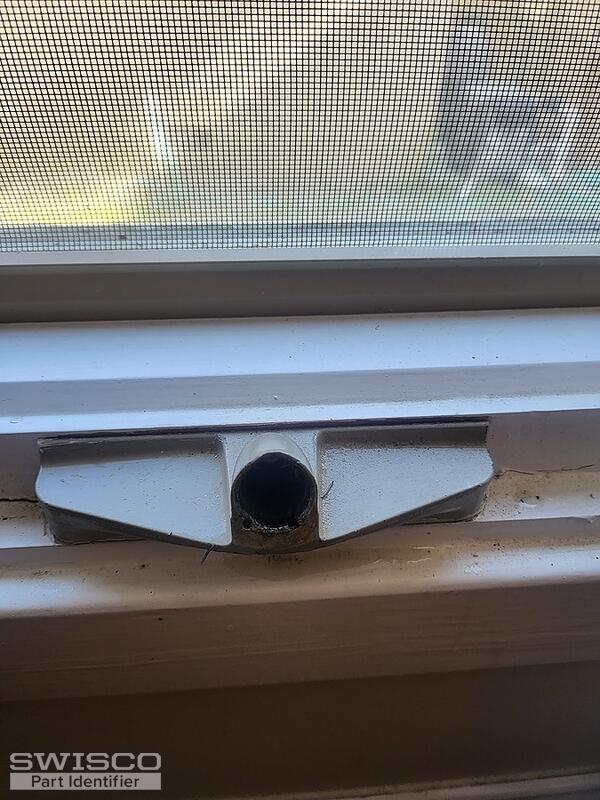

The interior cranking mechanism shown in the photo does not crank the casement window all the way back in. There are two arms that are attached to the window that this crank extends and retracts but the interior part appears to be worn out or broken. I have six windows that need this same repair.

4 user uploaded images

4 Replies

Casey from SWISCO

Mar 15, 2023 12:58 pm

Hello,

Your photos resemble the awning operators that we've related on this page. We would need you to open the window and show us the arms that move the sash to confirm if one of these options would work for your repair. Thank you!

Quick Learner from SAINT SIMONS ISLAND GEORGIA

Apr 1, 2023 2:44 pm

Here is a photo of the type of mechanism we have that needs a new cranking part. The arms will move in and out if the crank itself is fixed or replaced.
Thanks for your help with this.

Mark

1 user uploaded image

Casey from SWISCO

Apr 3, 2023 8:17 am

Thanks for getting back to us. Your operator's arms do resemble either the 39-083, 39-140, or 39-143. You will need to measure your assembly to compare to the specifications shown on our product pages to choose the correct match.
