Peachtree window channel balance

Quick Learner from Bella Vista, AR
Jan 17, 2023 6:14 pm

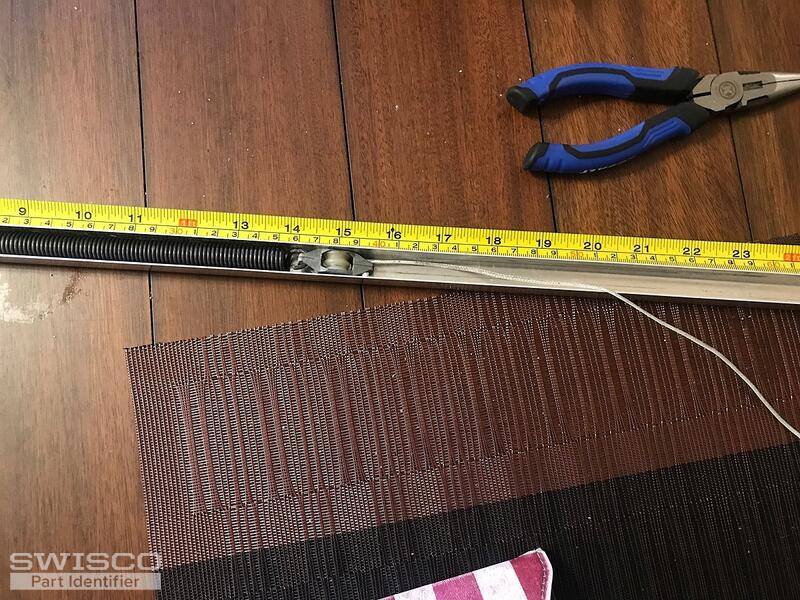

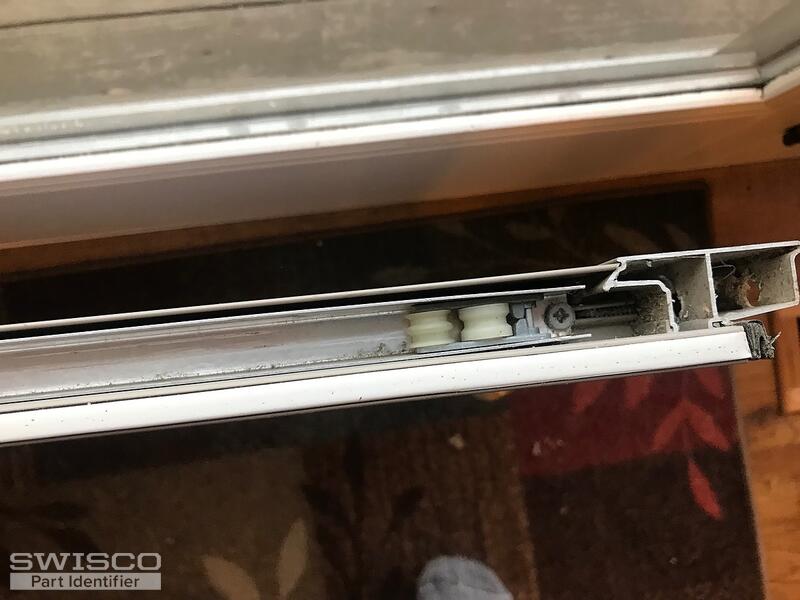

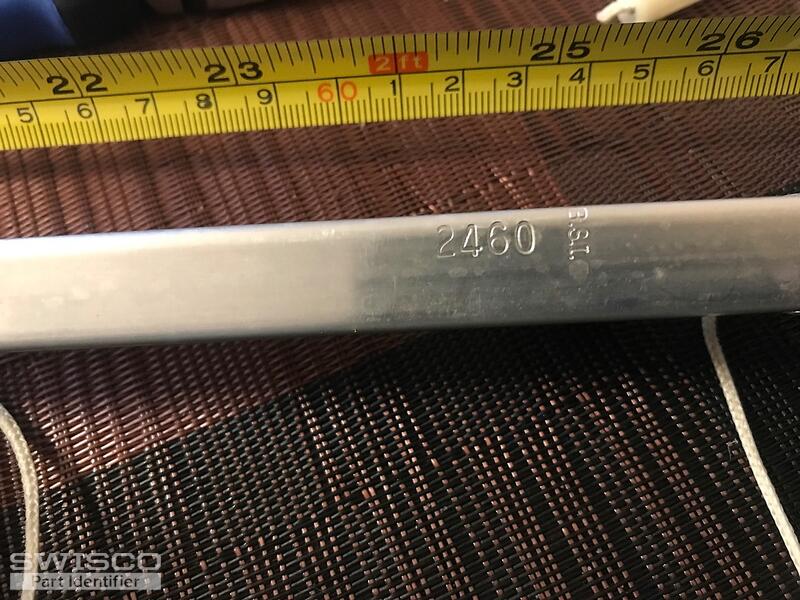

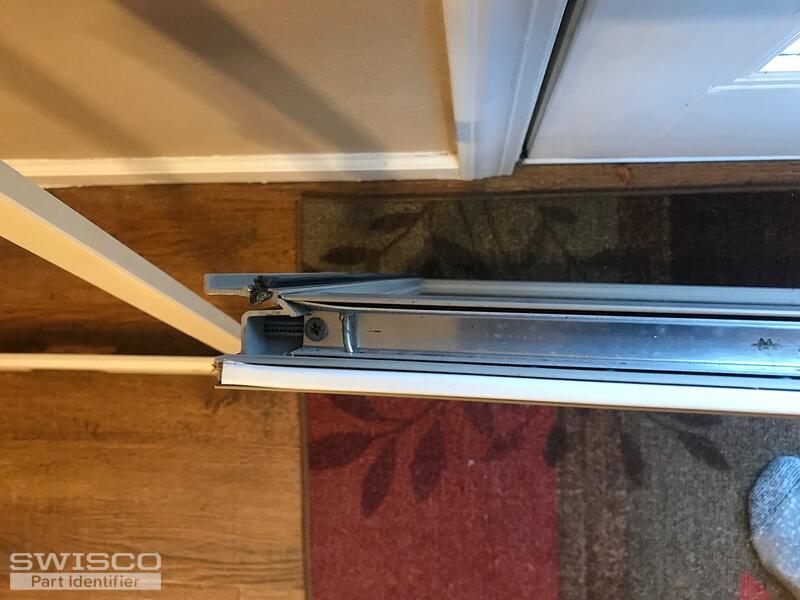

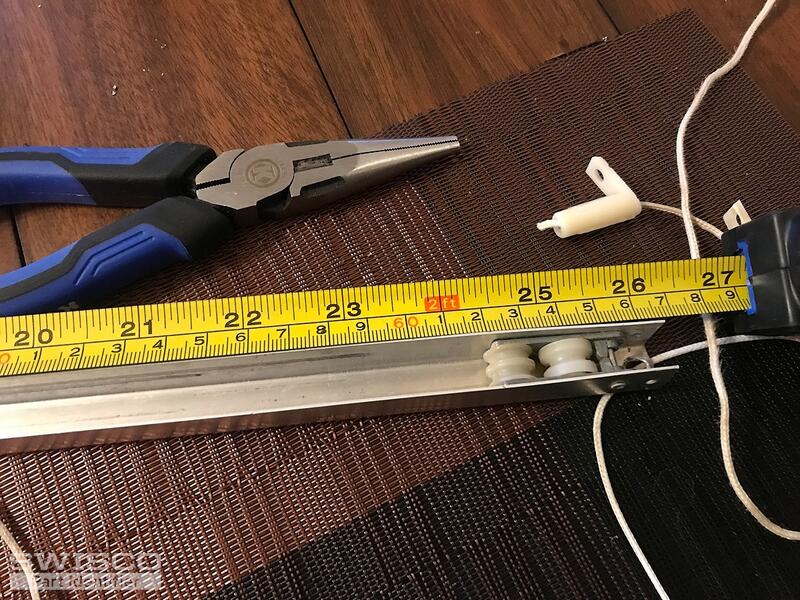

I have a number Peachtree windows that I need and want to replace the channel balances in. The balance is stamped 2460 B.S.I. as shown. There's no plastic pieces on the ends of the balance, assuming a previous owner didn't remove them on the one window I've taken out.

Can you please tell me if you have a replacement?

Thanks

Eddie

1426533A-C233-4915-B3A6-AE5A33A91008 6114BA9D-F8AE-4005-B073-836281E0DAF5 F380F94A-D466-42BB-8DC9-CB3844DF4256 09266312-871C-44A1-B41F-F1DCC59C6DD5 D309BEA5-D58C-48C4-9F65-B53159E0661B
5 user uploaded images
7 Replies
Casey
Casey from SWISCO
Jan 19, 2023 11:48 am
SWISCO
EXPERT

Hello,

Your photos resemble the S745 Peachtree balance but we would like you to confirm the exact length of the metal channel since it looks like 26-1/4" based on your photos but your 2460 stamp indicates that it would be 25-1/4" long. Thank you.

Quick Learner from Bella Vista, AR
Jan 19, 2023 5:33 pm
Yes, the balances are 26 1/4 inches long. I just measured again to make sure.
Thanks!
Casey
Casey from SWISCO
Jan 20, 2023 8:18 am
SWISCO
EXPERT

Thanks for getting back to us. Based on your length, you would need the S745-26 Peachtree balance but you will need to weigh your window sash and follow the chart under the product description to choose the corresponding strength option.

Quick Learner from Bella Vista, AR
Jan 20, 2023 10:52 am
Thank you so much!
Quick Learner from Bella Vista, AR
Jan 21, 2023 4:05 pm
The sash weighs 12.2 pounds.
Thanks!
Quick Learner from Bella Vista, AR
Jan 21, 2023 6:11 pm
Will the 25.25-3 work with my 12.2 pound sash?
Casey
Casey from SWISCO
Jan 23, 2023 12:55 pm
SWISCO
EXPERT

Unfortunately, the 25.25-3 strength option will only support a sash between 16-19 lbs and we do not carry a version of this balance calibrated to support a 12-pound sash. I'm sorry that we won't be able to offer more assistance with this repair but please let us know if you have any other hardware questions.
