Crank Handle Required

Home Owner from Springfield, NJ

Jun 16, 2020 9:46 am

Hi! I'm looking for these Pella handles manufactured by Truth. I believe they are 5/16 as the 5/32 did not fit; however, when I spoke with Pella they said the handles were updated and now are considered left and right handles and I would need 0BU9D000 and 0BV9D000.

Do you have the original or newer handles?

Thank you!

2 user uploaded images

6 Replies

Bob from SWISCO

Jun 19, 2020 9:19 am

Check to see if the diameter of the hole that accepts the spline is 11/32". If so, see our 39-114L crank handle. This works on both a left and right-handed operator.

Home Owner from Springfield, NJ

Jun 23, 2020 10:01 am

It seems to be, if possible 10/32". Will this fit?

Bob from SWISCO

Jun 23, 2020 11:42 am

That's a non-trivial difference. The 39-274 has a hole that accepts 5/16" diameter splines, but this is for a very specific type of operator and I highly doubt it's what you have. The style of your handle more matches the 11/32" types, like the 39-114L. If in doubt, show us a picture of your existing operator, including the link arm(s), so we can identify it properly, and subsequently confirm what crank handle it uses.

Home Owner from Springfield, NJ

Jun 24, 2020 11:00 am

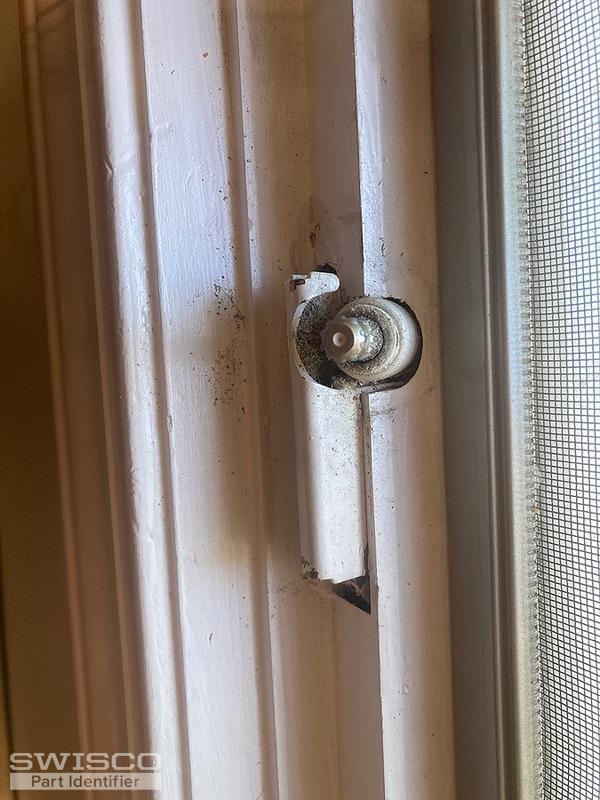

Here are some more pictures.

2 user uploaded images

Bob from SWISCO

Jun 24, 2020 12:45 pm

This still doesn't show the whole operator; but this does look like a Pella operator base to me. In that case, see our 39-109B 3/8" diameter crank handle for Pella operators. Look it over and see if this is in fact what you need.
