Hi

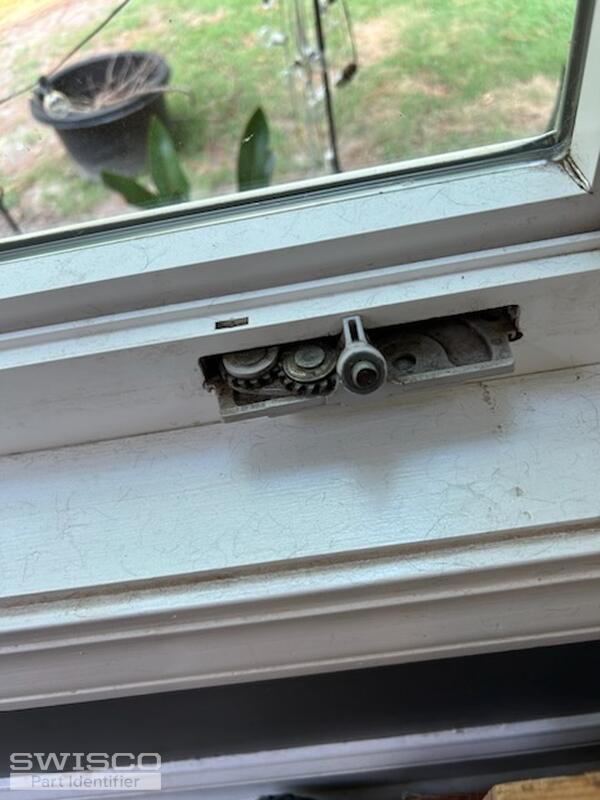

I am looking for the following parts for the window references above. Can you assist with part numbers if you carry them?

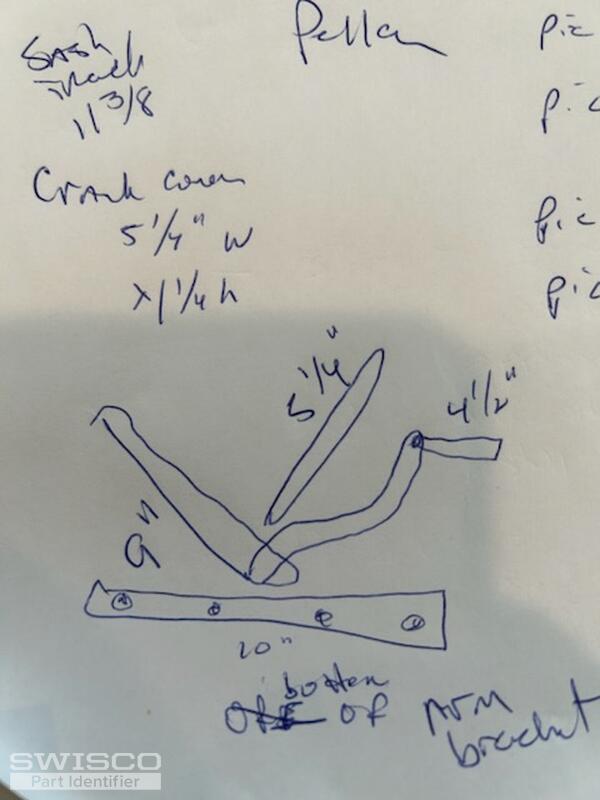

Left split arm operator w/handle and cover white (crank arm 9")
hinge arm(5 1/4") with bushing and guide track
Hinge channel and pivot arms
Please let me know if you need any other information
Kind regards,
Jack
Hey there,
Thanks for writing in! Your operator resembles our 39-031 Truth Dual-Arm Operator (the opposite handed version is part 39-032). These operators are compatible with the 39-107 cover along with the 39-114L or the folding crank handle, part 39-205 . There is also the 39-107FK , which is a folding crank and handle kit.
Compare the dimensions from your existing operator to those shown on the diagram below.
