Pella Pivot Bar?

Question

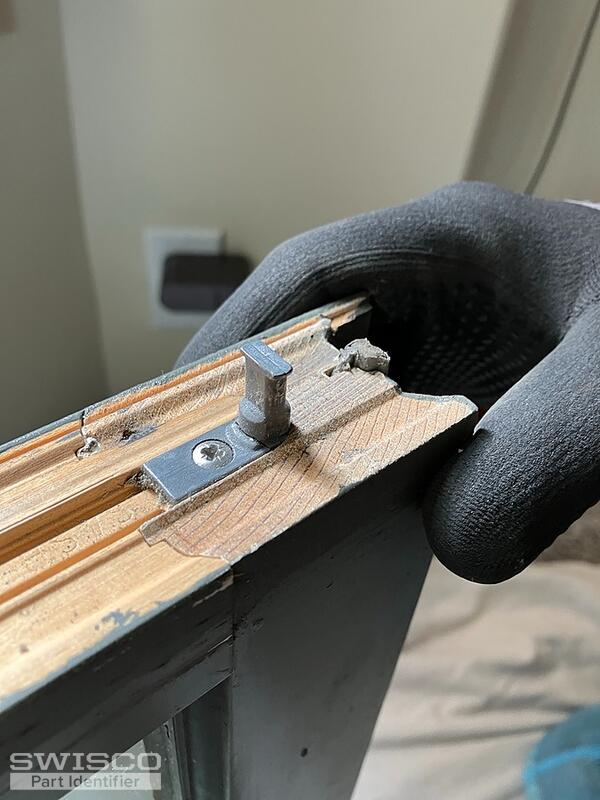

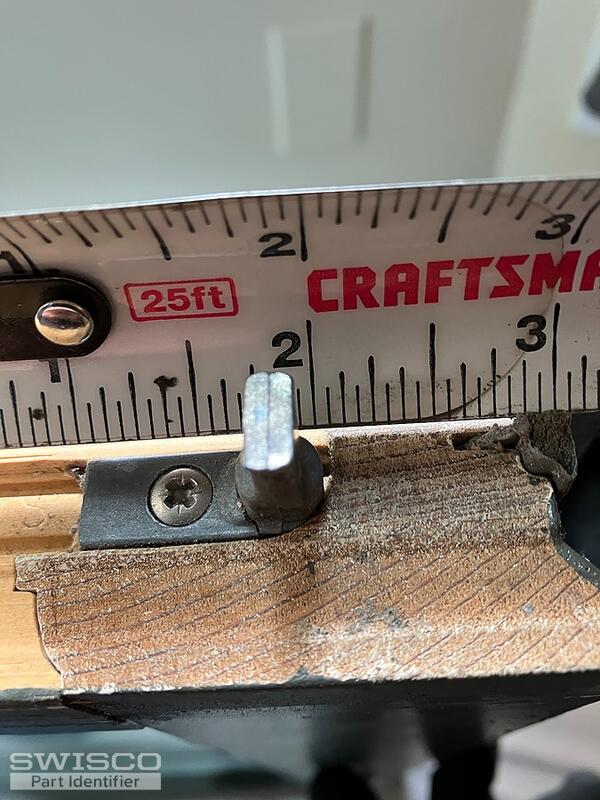

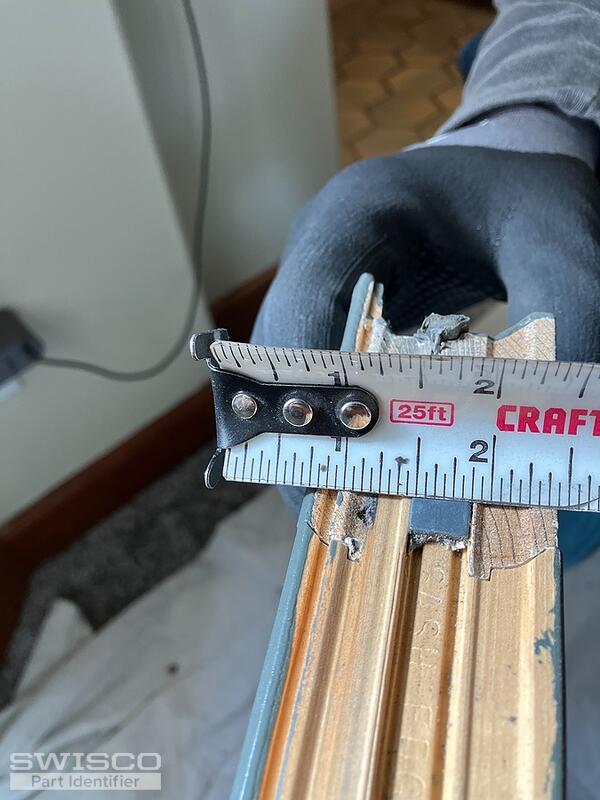

I was wondering if my part (in pics) is the same as your part # 26-406B?
It looks like the other measurements line up, but I didn't see the peg on the back of the bar on my piece, assuming that goes into the sash???

Bob · Accepted Answer

Hello there. Your exact pivot bar was discontinued and Pella offers the 26-406B as a replacement. I may be wrong, but I believe your old pivot bar might lack that extra leg and therefore it may be necessary to make alterations to your window (or to the part itself) to get it to install. How you do it is ultimately up to you, but just note that making alterations to the part itself will not allow you to return it to a refund. See our return policy here for more details.

Please note that if you decide to drill a hole in the sash to accomodate that extra leg, take very great care to not hit the glass. If that is a risk, then it's not worth trying.
