Pella Truth handle

Home Owner from Villa Park CA

Feb 2, 2021 1:55 pm

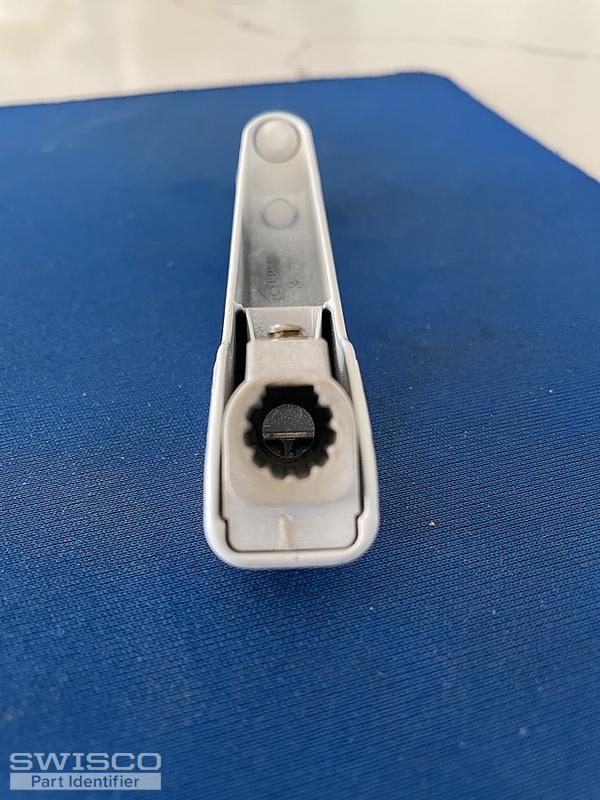

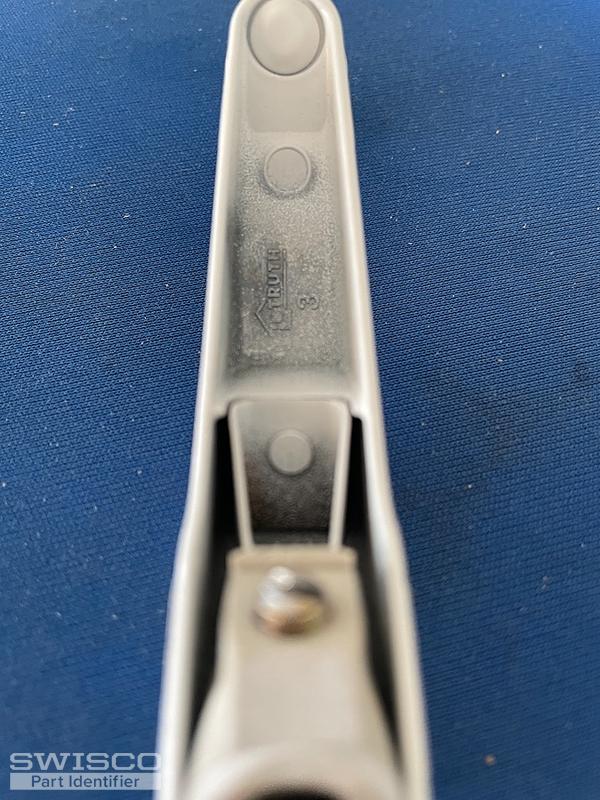

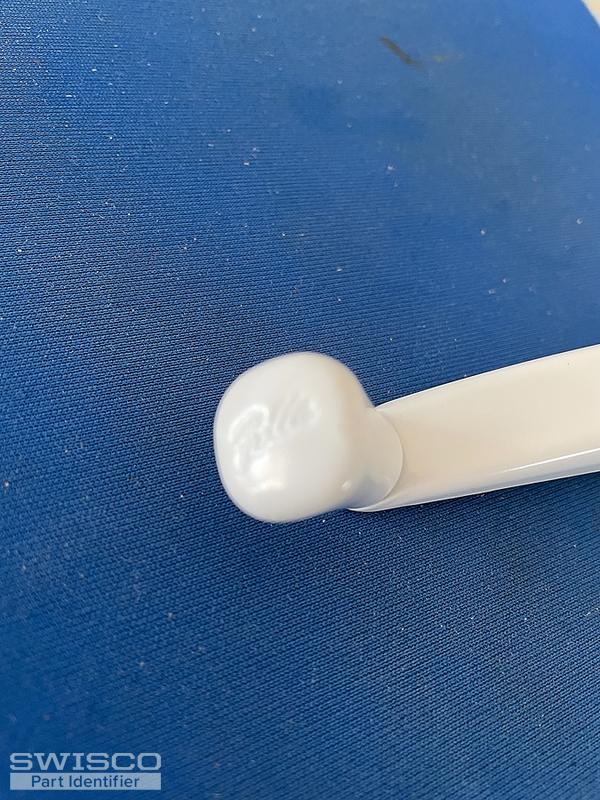

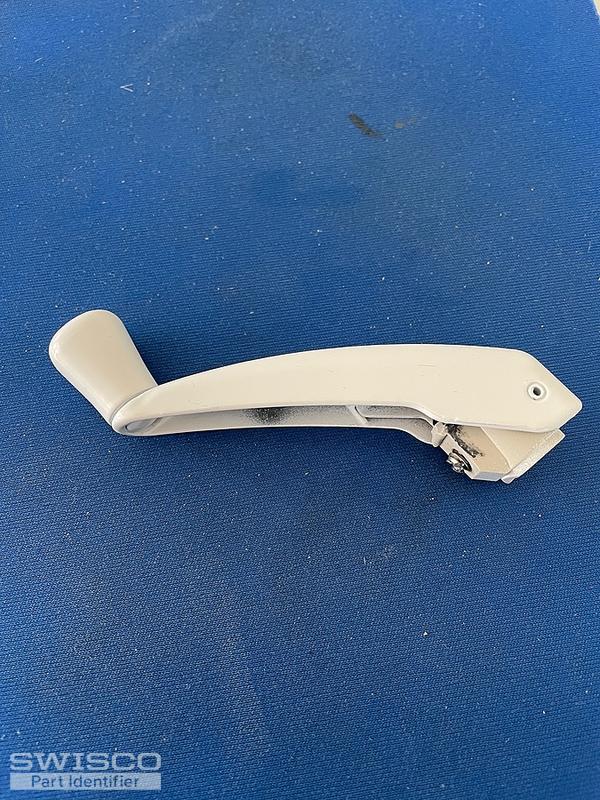

I am trying to replace a white folding window crank handle marked Truth with a Pella knob. Looks to me to be 11 tooth for a deep spline, I measured it and believe out to be 3/8" bore. I may not be correct but I have included several pictures. Can you help me make sure I am looking for the right handle?

Thank you for the help,

David

4 user uploaded images

6 Replies

Tom from SWISCO

Feb 3, 2021 2:01 pm

Hello, David. I recommend checking the diameter of the hole. This definitely looks like a Truth brand part and they only ever use 11/32" diameter holes for their handles. If it is, then I recommend the 39-205.

Home Owner from Villa Park CA

Feb 3, 2021 2:10 pm

You are right but the item you recommend doesn't show me the spline, it's 11/32" deep spline with 11 teeth. Does the one you recommend fit that description? it's definitely a PELLA Mechanism.

1 user uploaded image

Tom from SWISCO

Feb 3, 2021 2:31 pm

I'm not sure of the exact tooth count on ours, but if the diameter of the hole is 11/32" then it will work.

Are you positive this is Pella? You are 100% showing me a Truth brand handle. To confirm, you can show me a picture of the operator itself, but I'm convinced this is Truth. Pella parts are very, very specific and they've never made anything that looks like this.

Home Owner from Villa Park CA

Feb 3, 2021 2:49 pm

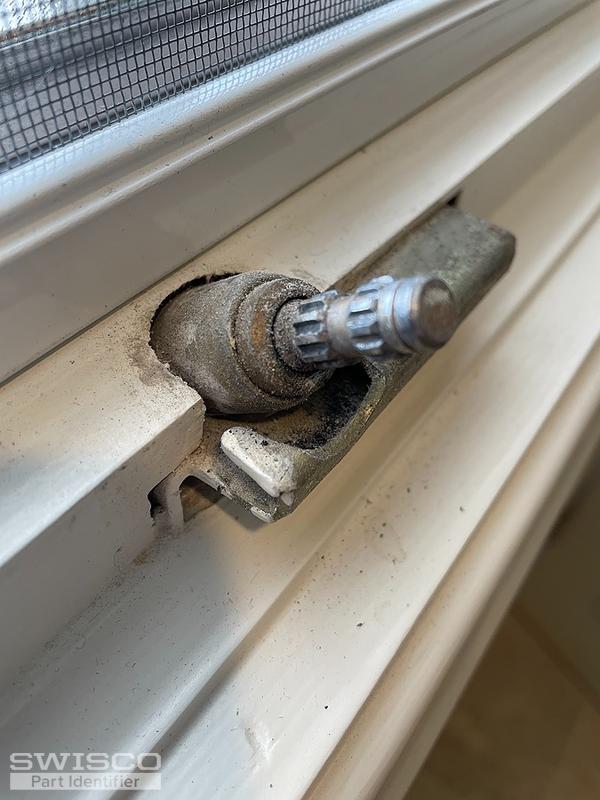

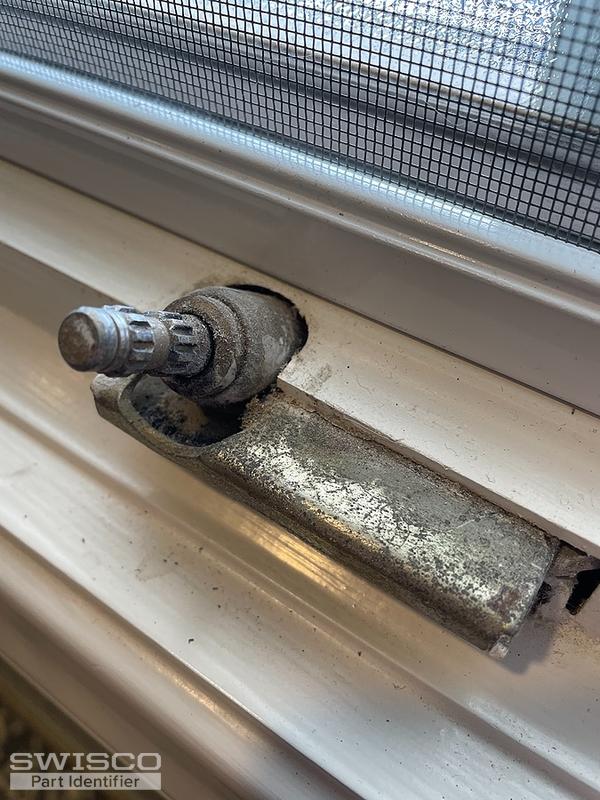

pretty sure, the handle is truth but the know says Pella. I have ordered several 11/32" with different tooth count, they will not fit.

2 user uploaded images

Dave Sr. from SWISCO

Feb 8, 2021 1:56 pm

It doesn't look like our 39-403 Pella handle and cover would work without modifications and, even then there is no guarantee. That being said, have you seen the 39-227B T-handle? The 3/8" spline may be the size you're looking for.
