Pella arm

Quick Learner from Princeton University
Aug 20, 2024 7:42 am
Hello. I'm looking for this hardware. We ordered the 39-395 and 39-394 from you, and the piece that attaches to the window is 7". The original we have in the picture is 8 3/16. Do you sell the 8 3/16??
20240820_073751 20240820_074626
2 user uploaded images
1 Replies
+ Add a Comment
Casey
Casey from SWISCO
Aug 22, 2024 12:52 pm
SWISCO
EXPERT

Hello,

We do offer the larger 39-396 and 39-397 Pella hinges, which measure 8-1/4" but the longer arm is 12-1/8" as shown below. Take a look and see how these compare to your original hinges.

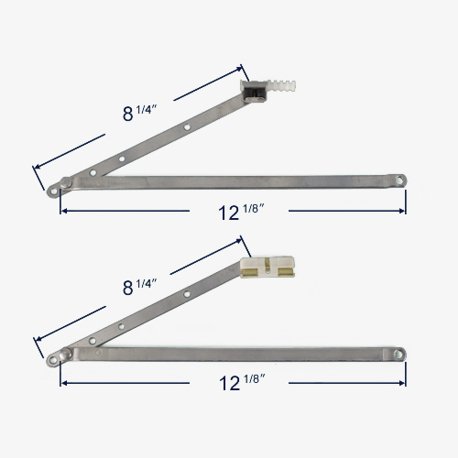

Dimensions for 39-397
Dimensions for 39-397

+ Add a Comment
Products and resources found in this discussion
RH 10" Hinge Arm Assembly, Pella
RH 10" Hinge Arm Assembly, Pella
39-395
$47.70
LH 10" Hinge Arm Assembly, Pella
LH 10" Hinge Arm Assembly, Pella
39-394
$47.70
LH 12-1/8" Hinge Arm Assembly, Pella
LH 12-1/8" Hinge Arm Assembly, Pella
39-396
$87.50
RH 12-1/8" Hinge Arm Assembly, Pella
RH 12-1/8" Hinge Arm Assembly, Pella
39-397
$87.50
