Pella- broken sash pin

Handy Person from Pennsylvania

Jul 27, 2019 3:04 pm

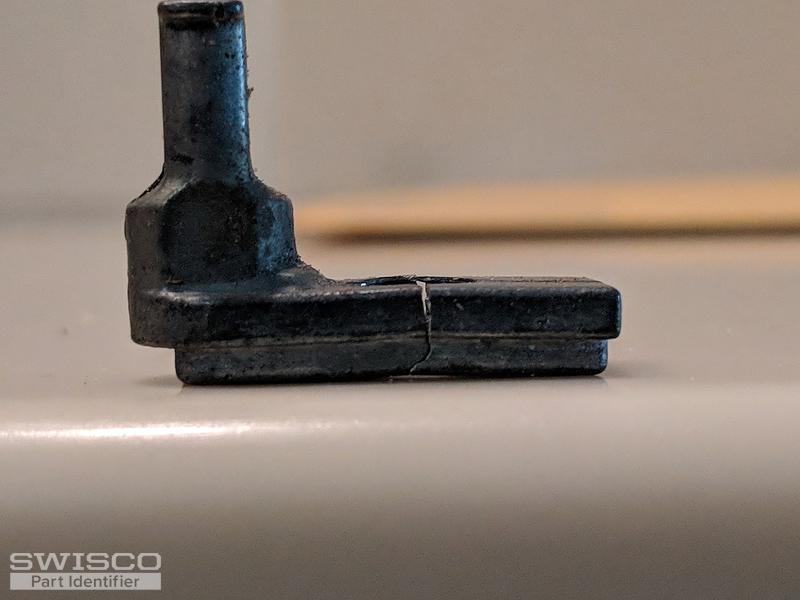

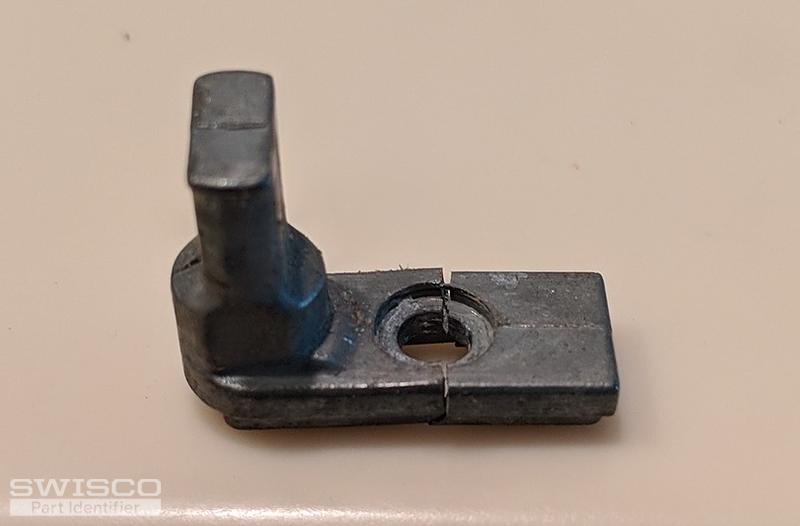

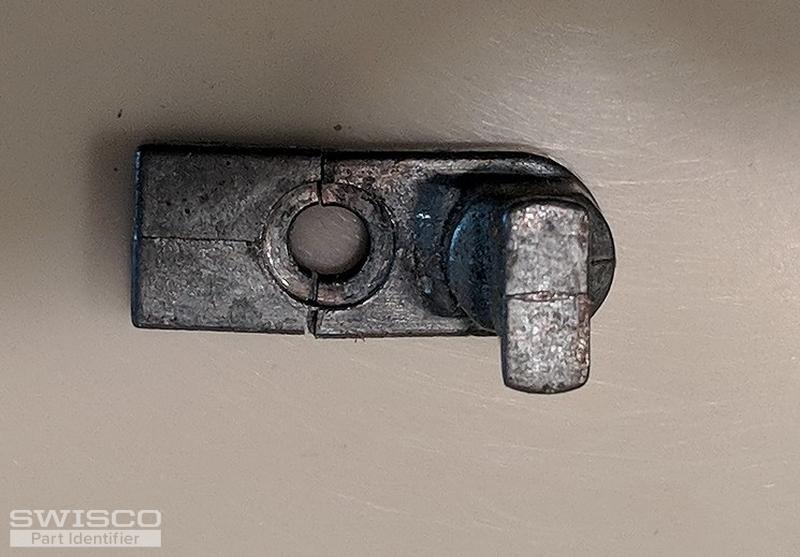

For pella double hung window model Pella-pen-1005-ASCPDV21Z3-036E053MWHT-521S-NFRC. The part is located near the bottom of the lower pane. It's screwed into the side edge of the frame between the pane and the fixed frame. When partially folding the window out for cleaning, this part is the pivot point. The part broke so the picture shows 2 pieces that should be connected as 1 part.

3 user uploaded images

4 Replies

Bob from SWISCO

Jul 31, 2019 1:40 pm

Thanks for writing in. See our 26-406B. Could this be what you need?

Handy Person from Pennsylvania

Jul 31, 2019 9:05 pm

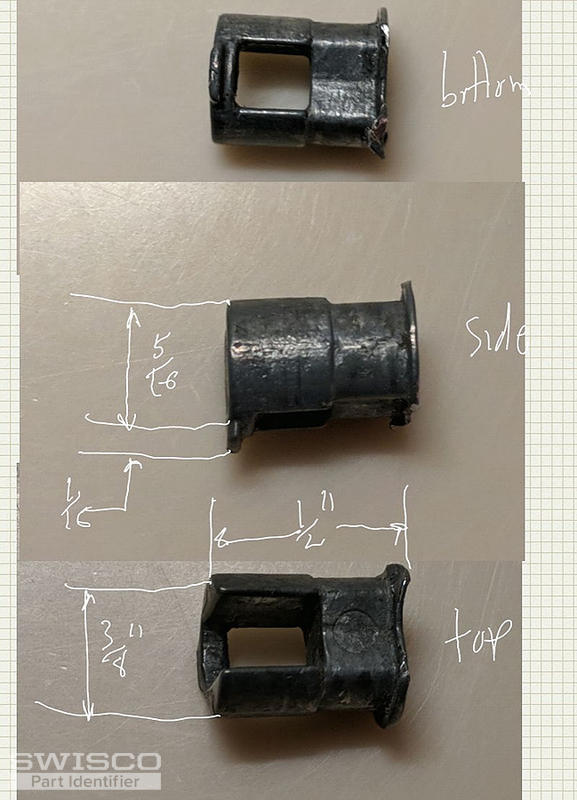

Except for the metal post, it is correct. I can make this work. I just noticed I also need the cam it connects to. I attached an additional picture with dimensions. Hopefully you also have this. Thanks for your help.

Jack

1 user uploaded image

Bob from SWISCO

Aug 1, 2019 8:41 am

Thanks for the reply. I'm afraid this metal cam can't be replaced by itself. We can probably replace the entire pivot shoe it comes from, but we'll need to see a picture of it out of the window. We will also need the width and thickness of the shoe. Many thanks.
