Pella casement joint

Quick Learner from USA
Jun 7, 2022 9:29 am
I asked a Swisco rep for help with a plastic piece in the corner, but he didn't know what I meant.

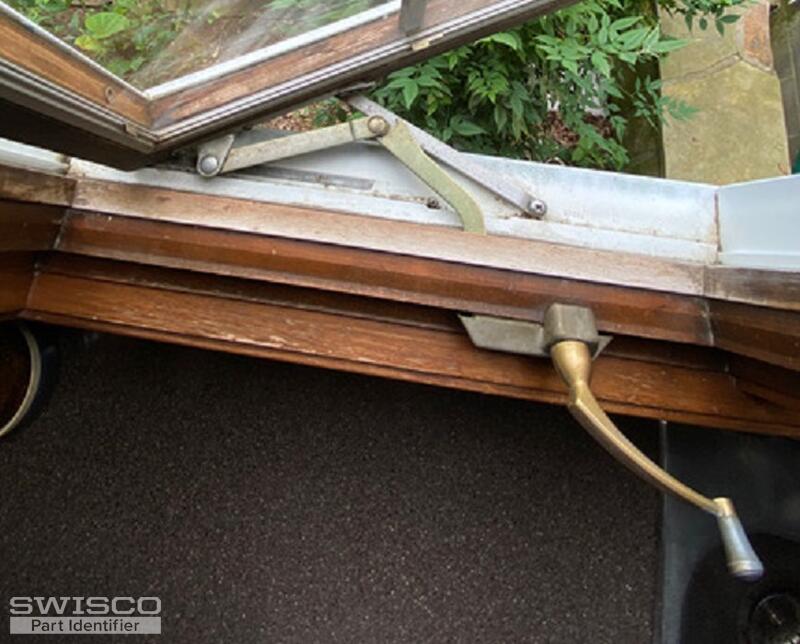

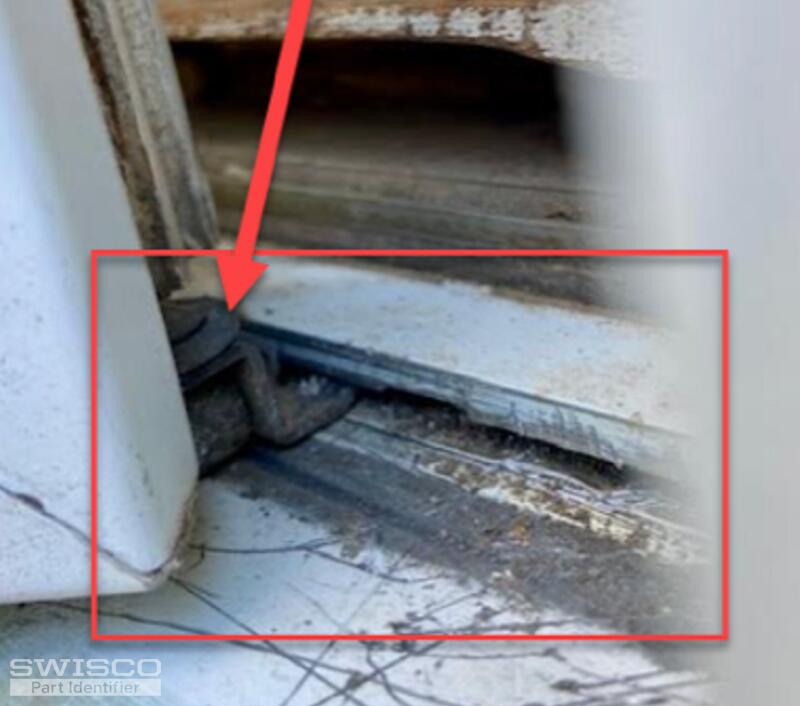

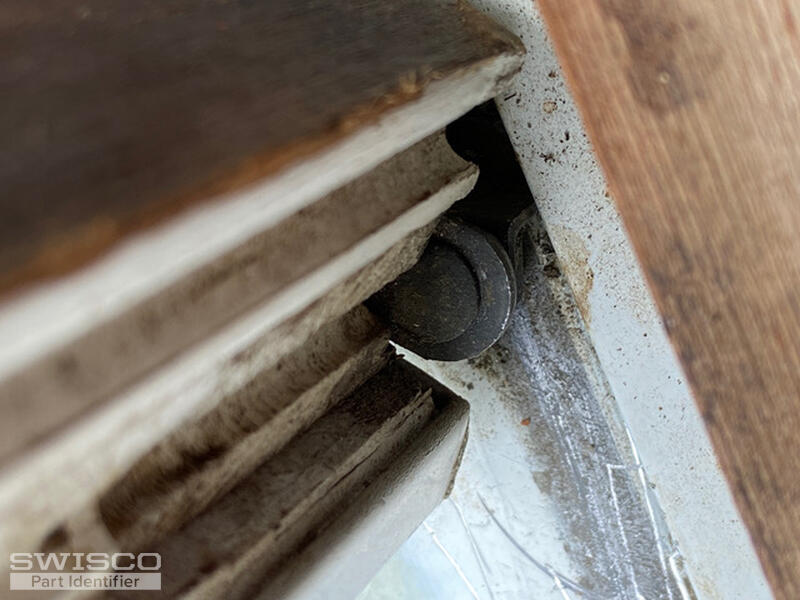

I hope this photo is helpful. The arrow identifies the broken part we are needing to replace. Pella casement window hinge pin.
SharonPrice SharonPrice 3 SharonPrice 2
3 user uploaded images
1 Replies
+ Add a Comment
Dave Sr.
Dave Sr. from SWISCO
Jun 10, 2022 10:35 am
SWISCO
EXPERT

Looks like you might need a new Pella window hinge. You mentioned the plastic corner part, which could be our 39-363 pivot plate, but I've also listed all of our Pella casement hinges for you to review. Look these over and see what you think.

+ Add a Comment
Products and resources found in this discussion
LH 9-5/8" Hinge Arm Assembly, Pella
LH 9-5/8" Hinge Arm Assembly, Pella
39-351
$87.81
RH 9-5/8" Hinge Arm Assembly, Pella
RH 9-5/8" Hinge Arm Assembly, Pella
39-352
$87.81
LH 10" Hinge Arm Assembly, Pella
LH 10" Hinge Arm Assembly, Pella
39-394
$47.70
RH 10" Hinge Arm Assembly, Pella
RH 10" Hinge Arm Assembly, Pella
39-395
$47.70
LH 12-1/8" Hinge Arm Assembly, Pella
LH 12-1/8" Hinge Arm Assembly, Pella
39-396
$87.50
RH 12-1/8" Hinge Arm Assembly, Pella
RH 12-1/8" Hinge Arm Assembly, Pella
39-397
$87.50
Pella Pivot Plate Hinge Shoe
Pella Pivot Plate Hinge Shoe
39-363
$6.65
Pella Hinge Shoe Pair
Pella Hinge Shoe Pair
39-371
$36.52
