Pella coil springs

A quick learner from Clare MI says:
March 31, 2023
I need coil spring balances for Pella windows that were purchased in 2019. They are a 250 series. I have some with 1 spring and some with 3 springs. I know they take the S160 coil spring. I need coilsprings, shoes and the anchor in which the end of the spring is attached. Shoe is 5/8"thick x 1 1/4" wide x 2 3/4" high.

Thanks, Don

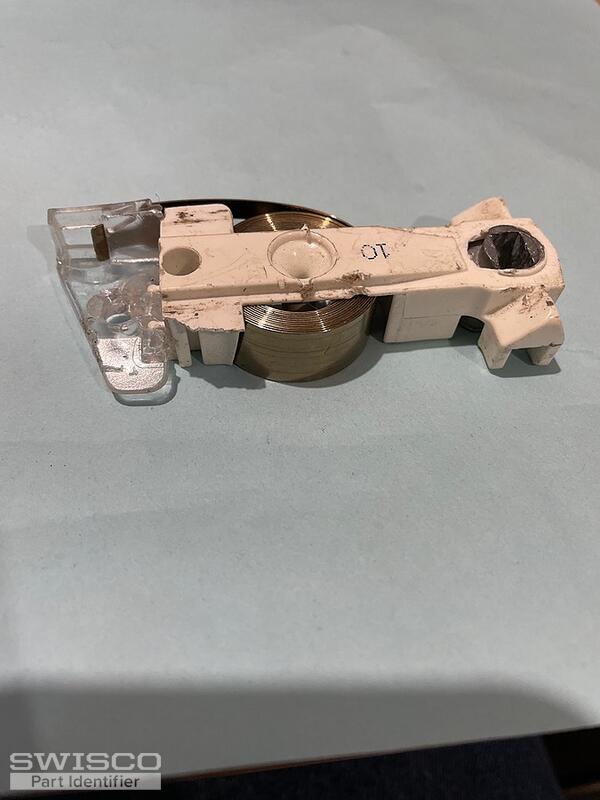

Thumbnail of the uploaded file named image.jpg
Profile picture of Lauren
Lauren from SWISCO responded:
April 3, 2023

Hi Don, thank you for posting,

Looking at your original coil balance assembly, while it is not the exactly the same as your original, we recommend reviewing the 15-251 inverted universal single support along with the Series 160 coil springs and 16-032 bracket.

For a triple coil assembly, review the 15-253 triple support.
Inverted Universal Single Support
Inverted Universal Single Support
15-251
$3.97
10 lbs Series 160 Coil Balance
10 lbs Series 160 Coil Balance
S160-10
$6.34
Mounting Clip
Mounting Clip
16-032
$0.90
Inverted Universal Triple Support
Inverted Universal Triple Support
15-253
$4.77
How to replace a window coil balance
How to replace a window coil balance
VIDEO
WATCH >
How to Replace a Triple Coil Balance System
How to Replace a Triple Coil Balance System
VIDEO
WATCH >
Removing a Triple Coil Window Balance
Removing a Triple Coil Window Balance
GUIDE
READ >
