Can you help find my Pella weatherstripping for hinged door? : SWISCO.com

Home Owner from New Jersey

Jul 23, 2018 12:17 pm

Hi, I need new weather stripping and a door sweep for a hinged Pella door. The Pella descriptions are:
Weather stripping -- 09ZR0A94 - Pkg 4 TFH/CTFM Frame W/strips
Door sweep -- 0D0K0033 - TFH 36 Door Sweep (AS pre Feb 2011)(DS pre Jun 2013)

Thank you.

1 user uploaded image

7 Replies

Tom from SWISCO

Jul 26, 2018 8:13 am

Hello! I'd be happy to check on this for you. Before I recommend anything, though, can you show us some photos of the weather stripping in question? Preferably an end profile view so that we can see its shape. Also, can you send us a photo of the door sweep from the same angle? The video below will clarify exactly what we need to see.

Home Owner from New Jersey

Sep 10, 2018 1:27 pm

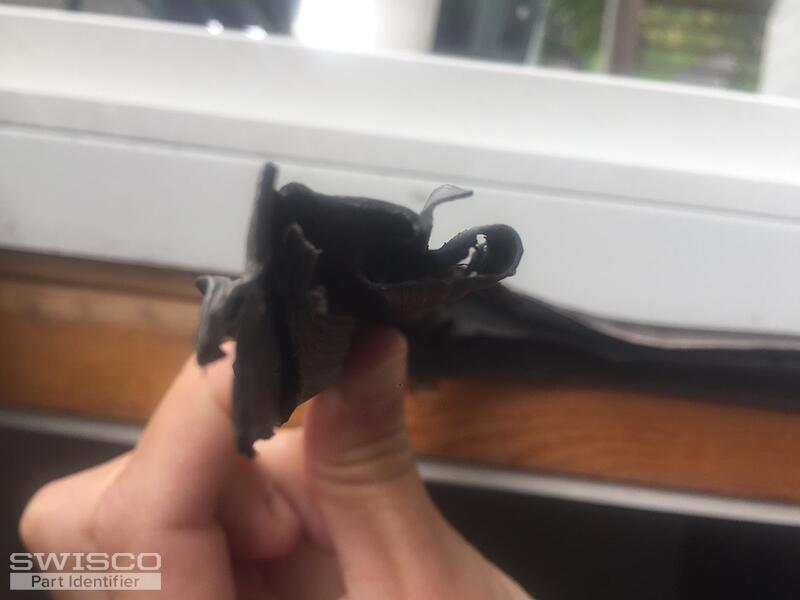

Hi, here is a view of the tip of the weather stripping. Thank you.

3 user uploaded images

Dave Sr. from SWISCO

Sep 14, 2018 1:55 pm

These photos are a huge help, thanks! Now, the old weatherstripping is a little worn, so I can't be 100% sure what will work in this case. However I have two products in mind that may be just what you want. See our 58-181 and the 58-173 and compare our dimensions to your own measurements. If they differ in any way, let me know and I can look into alternatives for you.

Profile view of 58-181

Profile diagram of 58-173

Home Owner from New Jersey

Sep 19, 2018 11:13 am

Thanks, I think 58-181 will do the trick.

Home Owner from West Des Moines, IA

Apr 30, 2023 4:18 pm

Hi,

I would like to order frame weatherstrip Pella Push-in Bulb weatherseal - part #58-181. Can you please tell me how long each weatherstrip is? Thx.

Tom

Tom from SWISCO

May 1, 2023 11:56 am

Sure thing, Tom! The 58-181 is sold in 94" lengths. These can be cut down to any size you need for installation, too. I would recommend using heavy shears for the softer vinyl and maybe a hacksaw on the more rigid portion, if you find it hard to cut through.
