Pella operator replacement

Handy Person from Mendocino, CA
Aug 20, 2024 9:38 pm

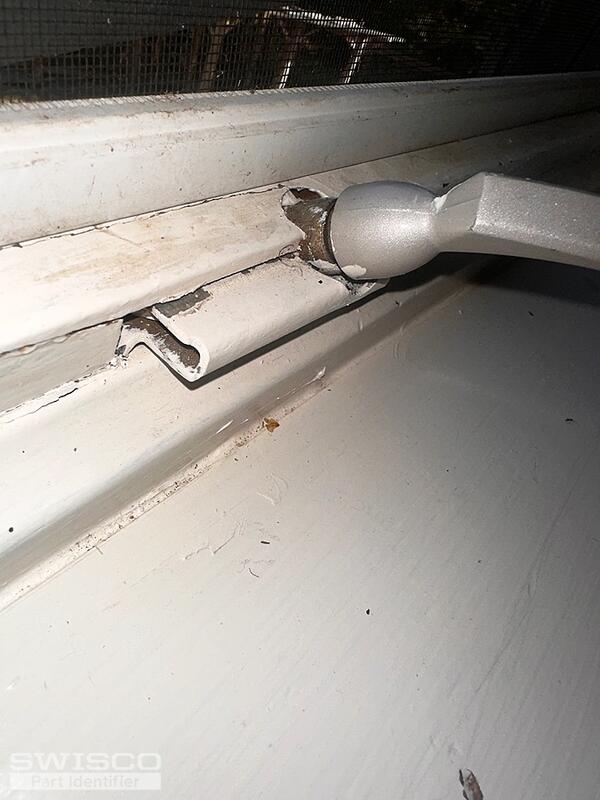

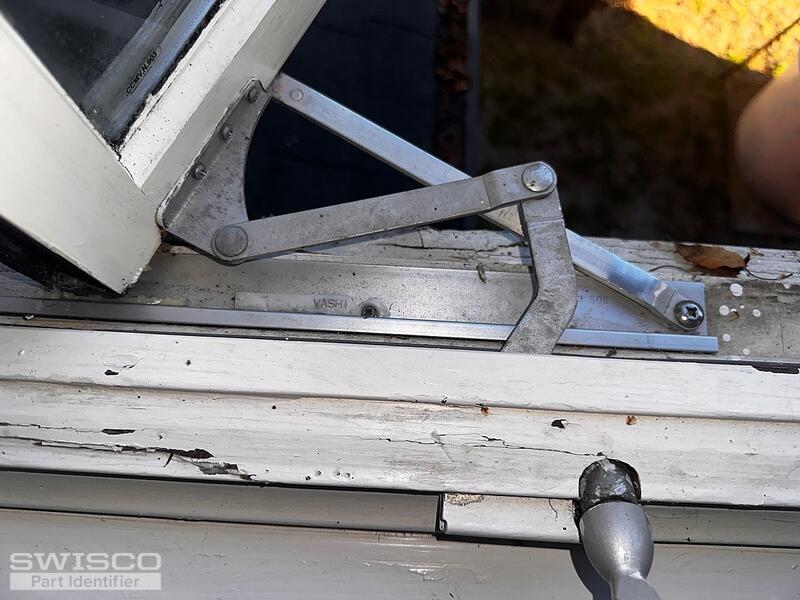

The housing for the gear mechanism where the handle meets the linkage is cracked so the window won't close the final
Inch. Can you help me identify the part I need? Thanks!
IMG_4961 IMG_4962 IMG_4963 IMG_4964 IMG_4965
5 user uploaded images
3 Replies
+ Add a Comment
Casey
Casey from SWISCO
Aug 22, 2024 3:49 pm
SWISCO
EXPERT

Hello,

Your operator resembles the 39-097 shown below. We also offer the 39-096 opposite-handed version. Both assemblies use the 39-109B handle but, unfortunately, the cover was discontinued and is no longer available. We apologize for the inconvenience.

Dimensions for 39-097
Dimensions for 39-097

Handy Person from Mendocino, CA
Aug 22, 2024 4:26 pm
Thanks so much! From your experience, is the cover only aesthetic or does it perform an important function?
Casey
Casey from SWISCO
Aug 23, 2024 8:25 am
SWISCO
EXPERT

The cover hides the gaps between the sill and the operator base but the assembly will still function without it.
