Pella part

A quick learner from Illinois says:
December 18, 2020
Can anyone tell me the part I'm looking for?

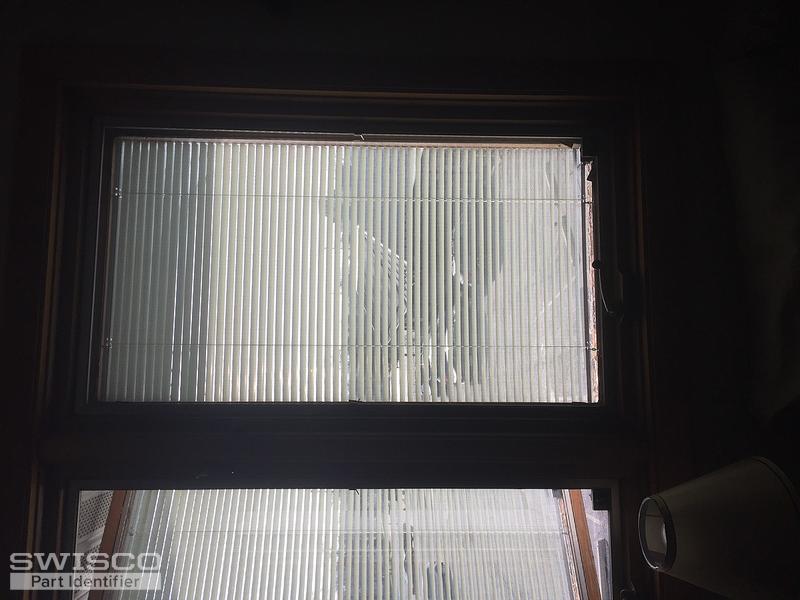

It is for a Pella casement window. Do not see any markings or numbers on it
Thumbnail of the uploaded file named image.jpg
Thumbnail of the uploaded file named image.jpg
Thumbnail of the uploaded file named image.jpg
Thumbnail of the uploaded file named image.jpg
Profile picture of Casey
Casey from SWISCO responded:
December 18, 2020

Hello,

You can start by comparing our 39-396 and 39-394 Pella hinges to yours, depending on the size that you need. Take a look at these and the other Pella hinges to make sure you get the one you need. Thank you!
A quick learner from Illinois says:
December 21, 2020
Casey
Thank you so much for your quick response. Went to your site and was about to order

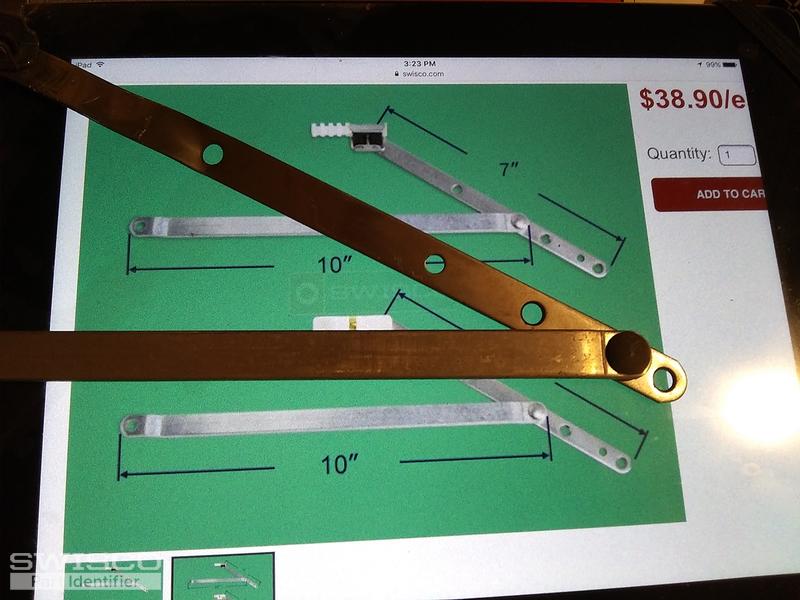

39-394 when I noticed on the smaller 7" hinge side the arm is riveted in the 2nd hole on your picture. Mine is riveted in the 4th hole. Would this make a difference???
See photo
Thumbnail of the uploaded file named 16085863344381699077572938003620.jpg
Profile picture of Dave Sr.
Dave Sr. from SWISCO responded:
December 22, 2020

It's possible that your hinge set was an earlier version and the newer hinges are set up differently. However, if you were to replace both hinges as a set they should work fine. The only thing that might happen is the window might not open up as far. Also, take a look at the longer hinge sets the 39-396 and 39-397. Maybe the arms would line up better compare to your original hinges.
