A contractor from Casement windows pella says:
January 4, 2023

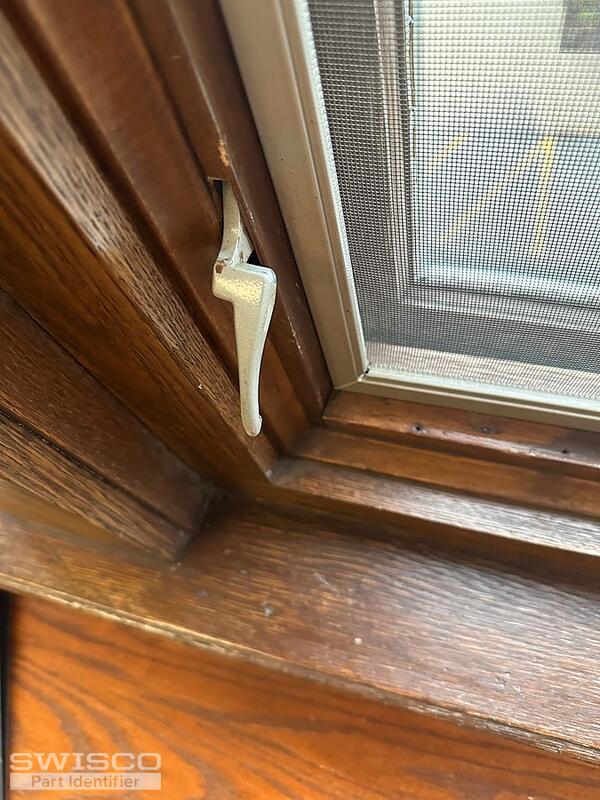

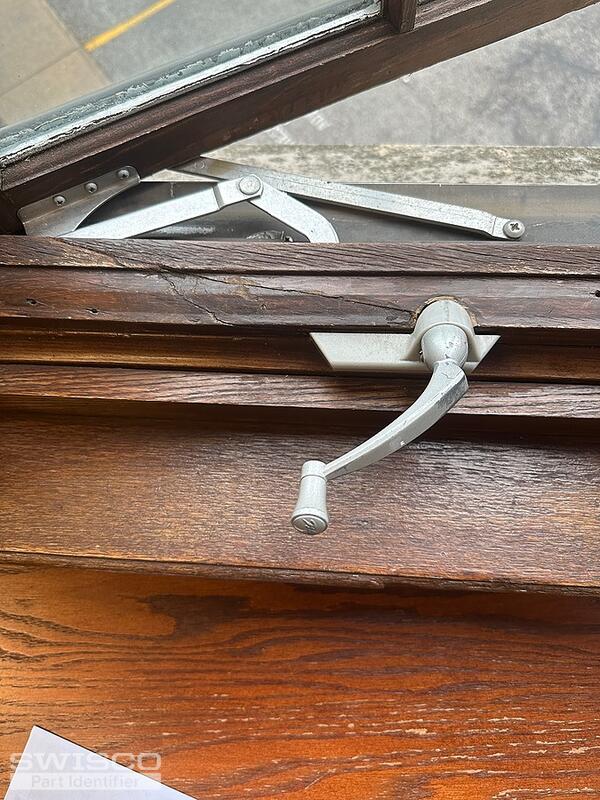

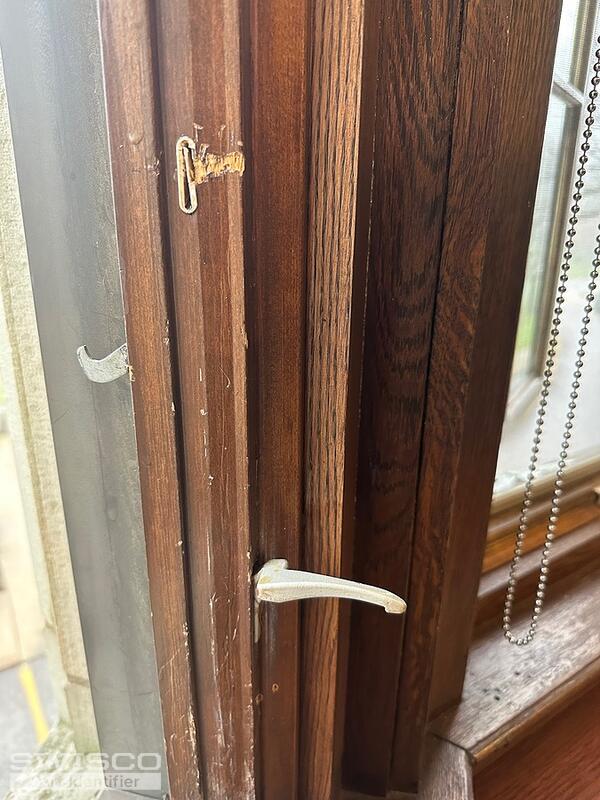

Looking for replacement casement aperators and sash locking mechanism
Thumbnail of the uploaded file named 32E9A7C6-B71A-41FF-B0ED-B72E7362A021.jpeg
Thumbnail of the uploaded file named F0152ADA-9237-4832-89E5-2215D3920F5C.jpeg
Thumbnail of the uploaded file named 88887DA3-E468-469F-9E9E-4D83F6ED9F43.jpeg
Thumbnail of the uploaded file named 86C1ABA9-465C-47E1-97FF-B6CC2FF723C4.jpeg
Profile picture of Tom
Tom from SWISCO responded:
January 6, 2023

Thanks for reaching out to us. Your operator appears to be a match for the 39-097 and 39-096, but the cover that goes with this operator is discontinued and no longer made. You would need to reuse the original. We do sell the handle, at least, which is our 39-109B, though of course you can reuse those, as well, as long as they aren't damaged.

The locks might be a match for our 38-274 and 38-275. It's tough to say with 100% certainty while they're still installed but look our products over and see what you think.
Pella Window Crank
Pella Window Crank
39-097
$120.45
Pella Casement Lock Handle, L
Pella Casement Lock Handle, L
38-274
$26.85
Pella Casement Lock Handle, R
Pella Casement Lock Handle, R
38-275
$26.85
3/8" Handle for Pella
3/8" Handle for Pella
39-109B
$11.25
