Pella screen door hanger

Home Owner from 64089

Apr 13, 2020 12:17 pm

The screen door hanger no longer hangs the screen door. The adjustment screw that attaches the door to the hanger has stripped out. I need a new hanger. The Pella screen door is attached to a sliding patio door. I think it is a wooden door of the Architecture series--I think.

2 user uploaded images

8 Replies

Tom from SWISCO

Apr 15, 2020 10:21 am

Hello! This part looks very similar to our 84-105 Pella sliding screen door roller. Please review our photos and information for this product and let me know if you agree.

Home Owner from 64089

Apr 15, 2020 12:18 pm

You're right. It looks like the part. Thanks.

Tom from SWISCO

Apr 15, 2020 12:27 pm

You're welcome! Please let us know how it works out.

Quick Learner from Massachusetts

Jun 26, 2020 3:52 pm

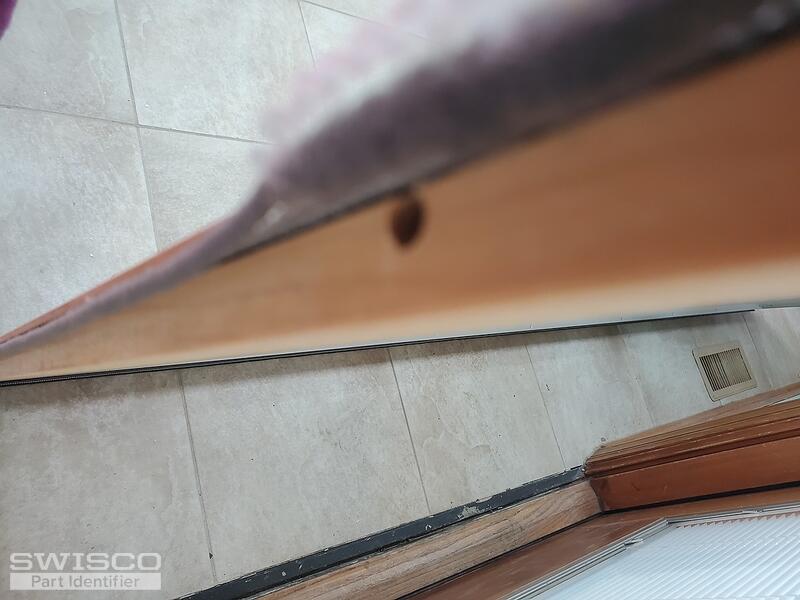

I have the exact same problem as this homeowner. I have a question about replacing the 84-105 rollers. How do I get them out, given there is no space at the ends of the track (on either end) where I could slide them and slip out? Do I have to take off the entire track? I would have the follow up question of how to put on the new rollers. Photo is attached to show the roller near one end.

1 user uploaded image

Tom from SWISCO

Jun 30, 2020 12:37 pm

To remove the 84-150 roller, you have to first partially remove the door by lifting it up and sliding out the bottom. Then, locate the adjustment screws on each side at the top of the frame. Turn them clockwise until you can remove the broken part.

To install the new roller, simply reverse this process.

Quick Learner from NJ

Jul 5, 2023 8:59 am

We have a pella screen door which was never installed

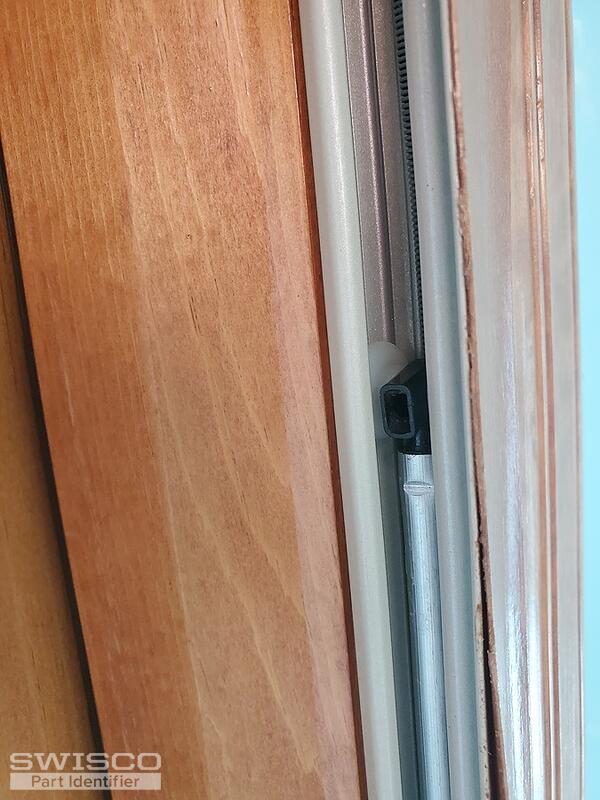

We think we are missing the adapters use to connect to the spring. I am attaching photos. We have looked at videos but don't seem to have the parts

2 user uploaded images

Tom from SWISCO

Jul 6, 2023 10:55 am

I'm sorry to say that much of the hardware used on this door is no longer available to us, especially that spring trolley you show in your second photo. My recommendation is to contact a local store that deals in Pella parts. They may have older hardware still in stock that you can use to repair your door.
