Pella screen door rollers

Question

This roller is for a Pella sliding screen door.
There is a number on the actual roller. 777K
The part that slides into the top of the door is 5/16 inch thick. They attach inside the door with a Phillips head screw.
I need two of these.

Thank you.

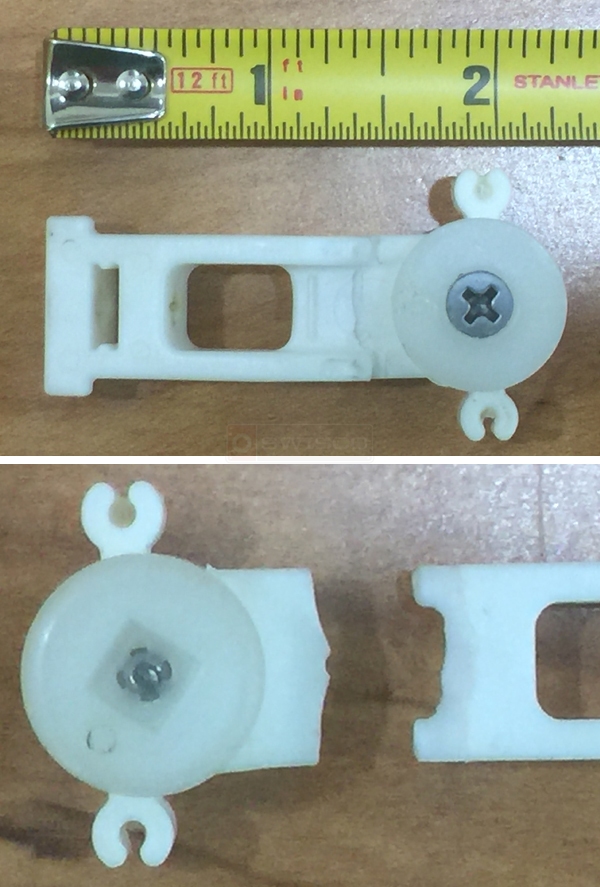

User submitted photos of screen door hardware.

Tom · Accepted Answer

Thanks for posting. This looks a lot like our 84-105. Check it out and see what you think. To install the the 84-105, you will first need to remove the screen flap from the door frame, if applicable, by pulling the screen toward you. Remove the shipping spacers from the screen track and frame sill. Then, install the screen hangers by sliding each hanger into the top rail holes of the screen door frame.

It's important to note that if the hanger will not go into the top rail hole, you just need to turn it around. It only installs one way.

You then need to secure the screen hangers using the hanger screw pre-installed in the top rail of the screen frame. Tighten the screws until the line on the hanger is lined up with the top of the screen frame. It's then simply a matter of putting your door back in the frame.
