Pella storm door window frame corner key

Start a new Discussion

Quick Learner from CHARLESTN, sc

Apr 23, 2020 1:48 pm

31163

This is a nylon corner key for a Pella storm door. It is for the sliding glass panel.

3 user uploaded images

6 Replies

Tom from SWISCO

Apr 27, 2020 10:21 am

I'm afraid that I couldn't match this corner up to anything. Please give me a little more time to look into an alternate option for you. I hope to get back to you soon.

Quick Learner from CHARLESTN, sc

Apr 27, 2020 12:23 pm

OK, thank you.

Dave Sr. from SWISCO

Apr 29, 2020 10:47 am

Take a look at our 95-026 and 95-027. These are self-locking corner keys that look similar to the one in your photo. See if the dimensions match up to yours.

If not, then I recommend contacting Pella directly to see if they can provide you with the exact part.

Quick Learner from CHARLESTN, sc

Apr 29, 2020 11:54 am

Thank you very much, Dave!

Contractor from Colorado

Nov 11, 2024 9:40 am

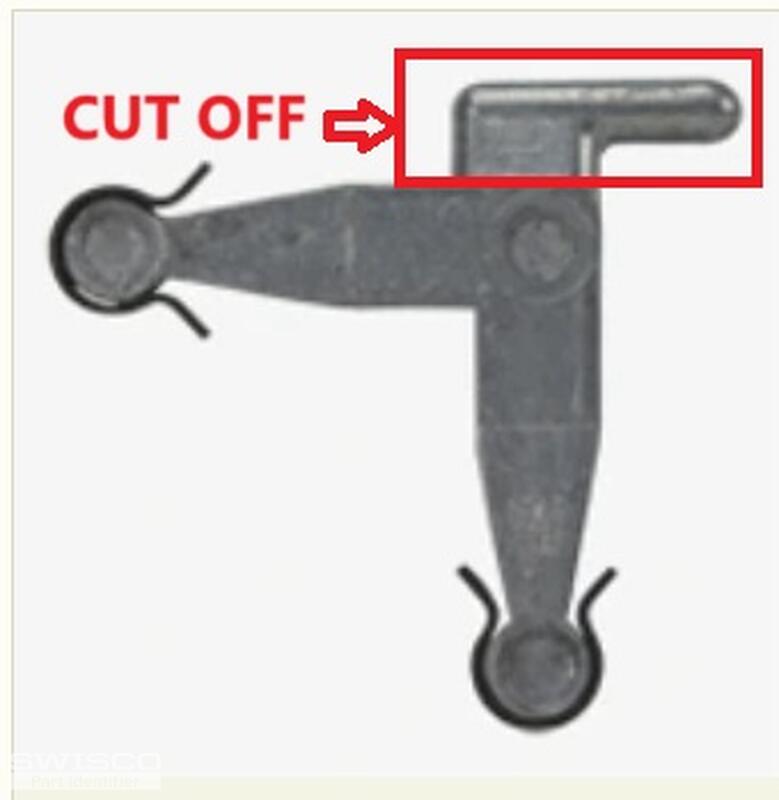

Have the Pella storm door windows with the plastic frame insert that are no longer available from Pella. These worked perfect, just needed to cut off that little extended foot on the side. Gently taped them in place with a small hammer. In my case doesn't seem to make any difference on right or left, either fits right or left.

1 user uploaded image
