Pella window. Marking 900 CC on outer sill. I have a suspicion they are pre 1997?

Home Owner from Maryland

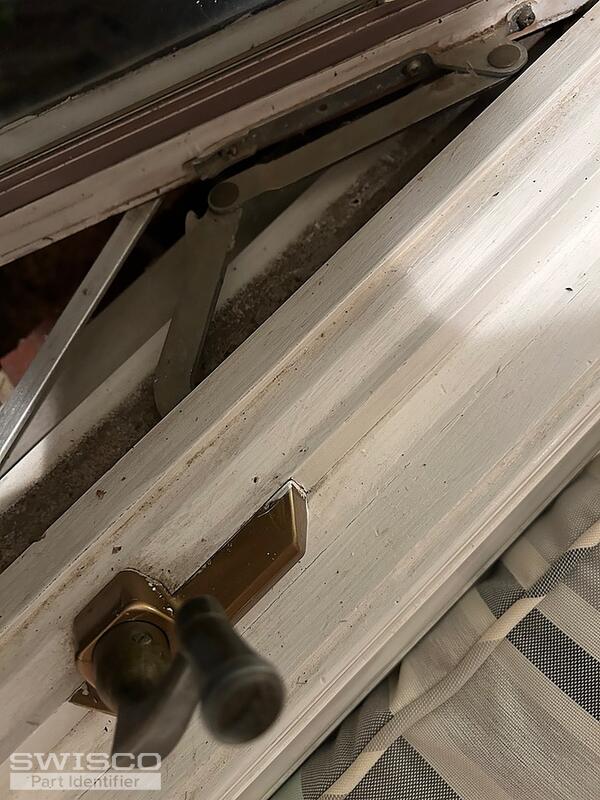

This Pella Casement window does not close properly. Does not hook on to lock. Crank mechanism is broken and missing the arms that connect it to window. No closure, except by hand on the inside of house. Up too high to close from outside. This window is lacking an upper lock as well. Thank you five anyhting you can do to help this repair.

Mary

3 user uploaded images
4 Replies
Emily
Emily from SWISCO
SWISCO
Expert

Hi there Mary.

Thanks for reaching out to us. The lever locks shown here remind me of the 38-294 and 38-295. I'm afraid we can't be sure of the operator since the arms are missing though. Is there an identical window in the house? If so, we can use that as a reference.

Home Owner from Maryland
This is picture of a similar window showing the arms of the crank.
1 user uploaded image
Emily
Emily from SWISCO
SWISCO
Expert

Thank you! The operator shown in this new photo looks like the 39-176. The opposite-handed version is the 39-175. If you need a new handle, see the 39-109B which is sold separately. Review the specifications for our parts and see if they match up with your old hardware.

Unfortunately, we do not sell covers for the operators. I am very sorry for the inconvenience.

Dimensions for 39-176
Dimensions for 39-176

Alternate view with measurements
Alternate view with measurements
