Pella window parts missing

Quick Learner from Wisconsin
I have a left hand Pella casement window that is missing a locking fixture. The sash is routed to accept the parts, but the parts are missing. It is a tall casement window which has a tandem mechanism that helps pull in the window to close and lock.
1 user uploaded image
4 Replies
Lauren
Lauren from SWISCO
SWISCO
Expert

Hello, thank you for posting,

Unfortunately with the original parts missing, we cannot confirm the style that was used in the window. Do you have any similar windows in the house that still have the hardware that we could review? Thank you!

Quick Learner from Wisconsin
I added a photo of the 3 window unit, the left and right side are operable...center is fixed.

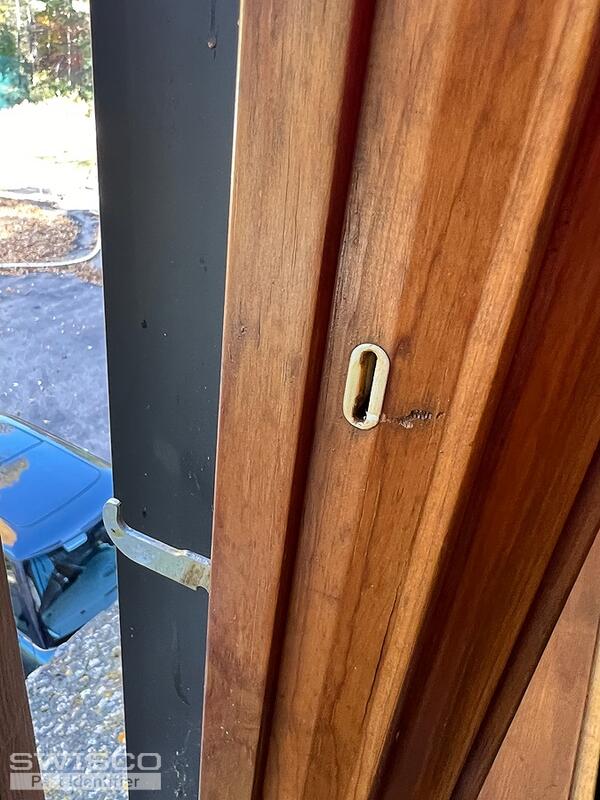

The other photos show the locking mechanisms on the left side window, top and bottom are the same.

The final picture has a plastic cover that is screwed into the frame to protect it.

The right side window has no hardware in the unit.
4 user uploaded images
Lauren
Lauren from SWISCO
SWISCO
Expert

Thank you for the additional pictures,

Unfortunately after review, we are not able to provide replacements for this style of locking system. I cannot confirm if these parts can still be located. You may need to contact Pella directly.

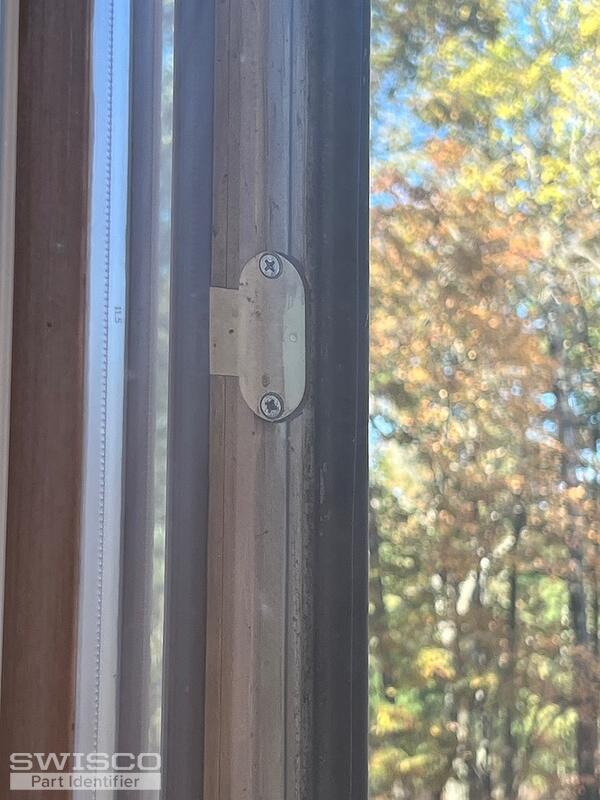

The only part that we may have is the strike which appears similar to the 70-225, but I believe this one may be larger. Take a look and let us know if you have any additional questions.
