Philips window balance

Start a new Discussion

Home Owner from Washington state

Sep 23, 2021 1:04 pm

I am not sure what more to add to the pictures. I have no idea what I'm doing.

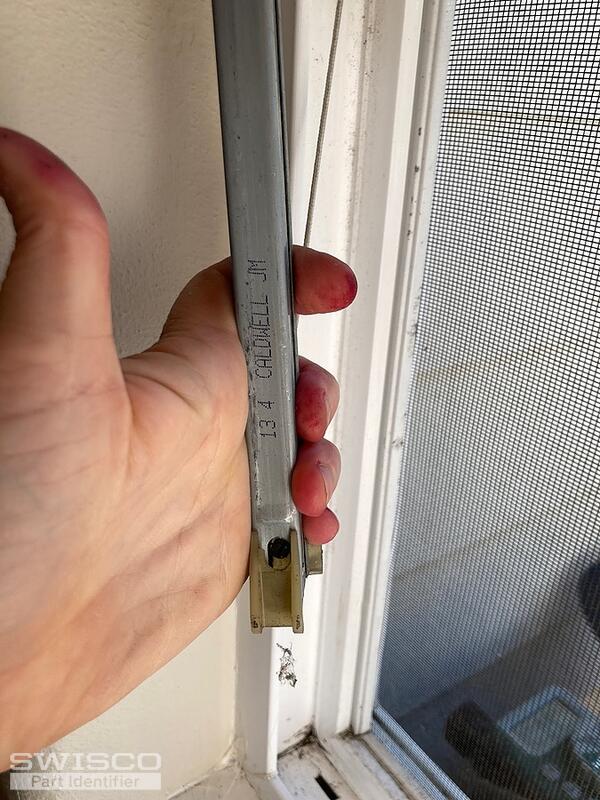

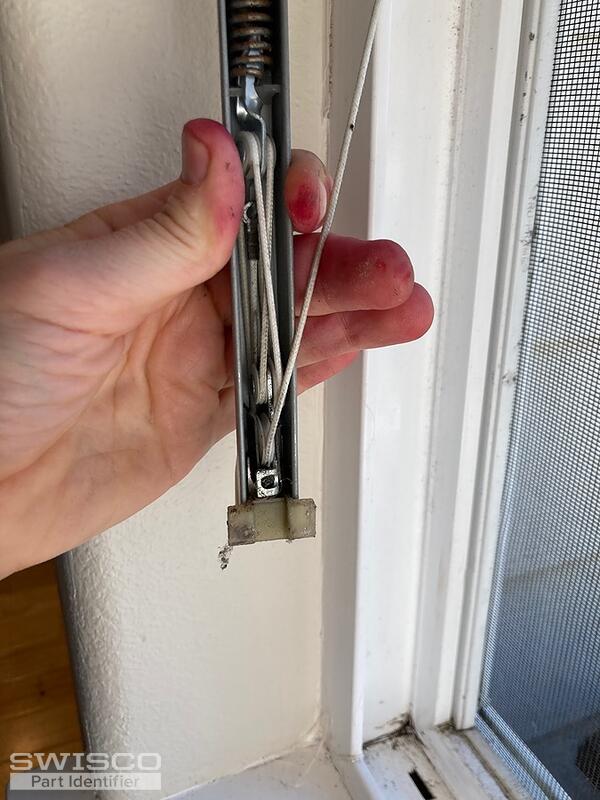

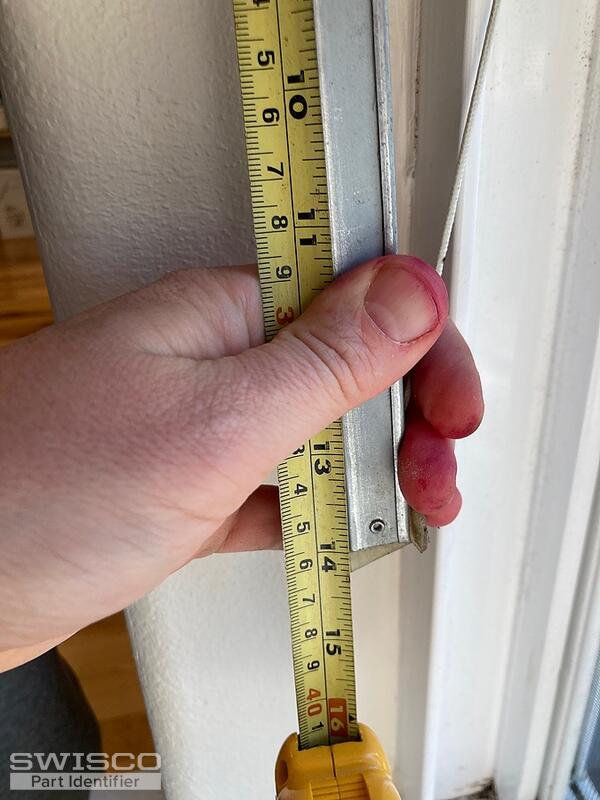

3 user uploaded images

4 Replies

Emily from SWISCO

Sep 29, 2021 11:39 am

Hi there!

Thank you for your patience during our busy season. Before we get started, can you show us some pictures of your top fitting? The video below will go over exactly what we'll need to see.

Thank you!

Home Owner from Washington state

Oct 2, 2021 4:59 pm

This is what I came up with

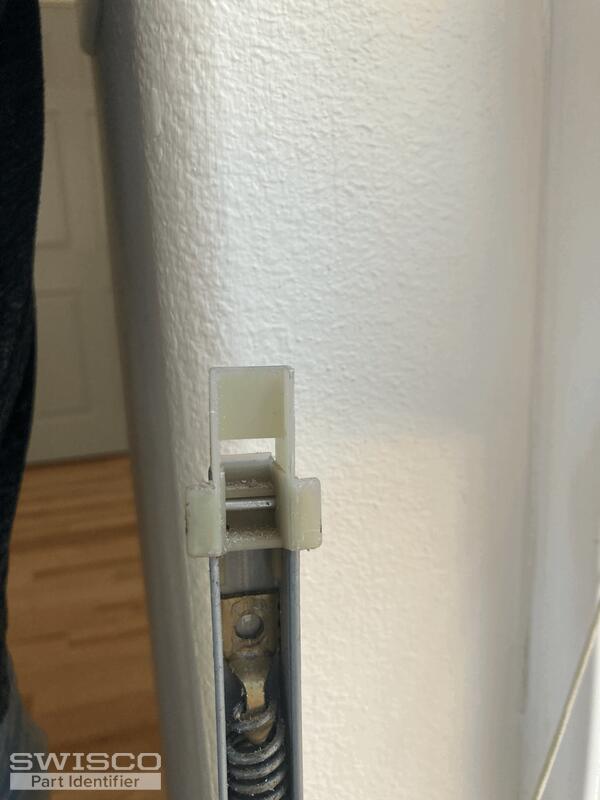

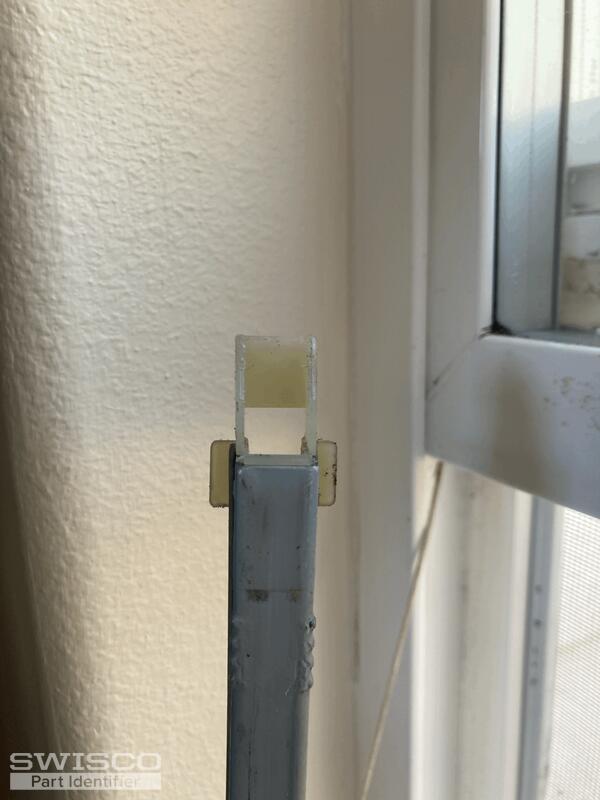

2 user uploaded images

Emily from SWISCO

Oct 4, 2021 8:44 am

Great! With this combination of attachments, you could have either an S380-14 or S385-14 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment. You'll also need a 1340 spring strength option.

If you have any questions just let us know!

Comparison of the S378, S380 and S385 balance shoes.
