Phillips Window Balance

A quick learner from Oregon says:
August 26, 2019
I need to replace a broken balance. I think it is a channel balance, 800 series. What do I need to buy?

Thank you.
Thumbnail of the uploaded file named FA60346F-7F52-458A-9F34-BDBCAC279645.jpeg
Thumbnail of the uploaded file named D3067BED-0E0C-4B90-A428-E0A41DBBEA5D.jpeg
Thumbnail of the uploaded file named 9A8D98C3-5618-4433-BD8E-83A92DA9B755.jpeg
Thumbnail of the uploaded file named F56BDAB8-C1D3-4036-B892-E4D6C80454CD.jpeg
Profile picture of Bob
Bob from SWISCO responded:
August 30, 2019

Thanks for writing in. Does the channel balance's metal channel have a width of 1/2"? If so, see either our Series 380 or Series 385. The only difference between these two balances is the 'depth' of the bottom nylon shoe, so compare both with your old hardware to see what matches best.
A quick learner from Oregon says:
August 30, 2019

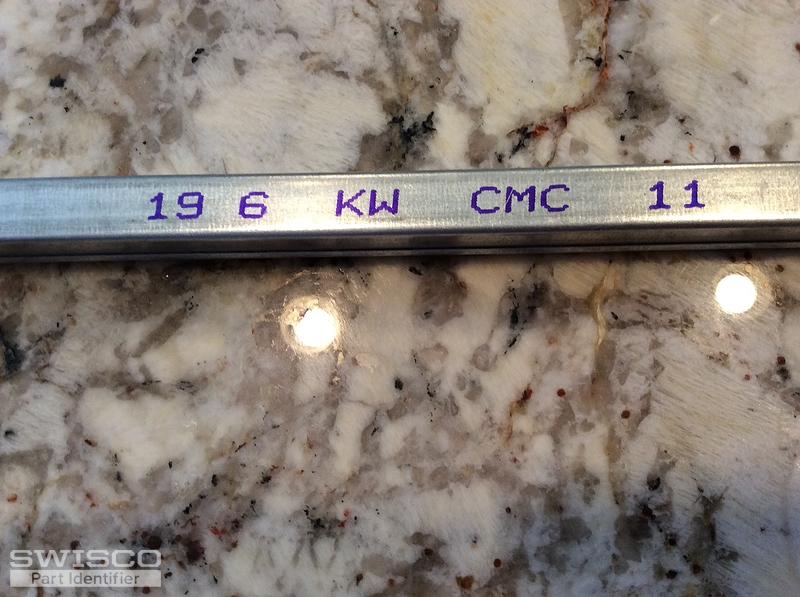

The stamp on the channel balance is :

19 6 KW CMC 11

What size?

Profile picture of Bob
Bob from SWISCO responded:
September 3, 2019

Usually with a balance marked with "19 6", that tells us that the metal length portion of the balance measures 20". But, it's best for you to measure your balance from metal to metal to confirm the measurement to be 20".
17" Series 380 Channel Balance
17" Series 380 Channel Balance
S380-17
$9.34
17" Series 385 Channel Balance
17" Series 385 Channel Balance
S385-17
$9.34
