Pics 1-5, See 2nd Email for Pics 6-8

A home owner from Roseville, CA says:
Length metal tip to metal tip 27 inches.
Thumbnail of the uploaded file named A1.jpg
Thumbnail of the uploaded file named A2.jpg
Thumbnail of the uploaded file named A3.jpg

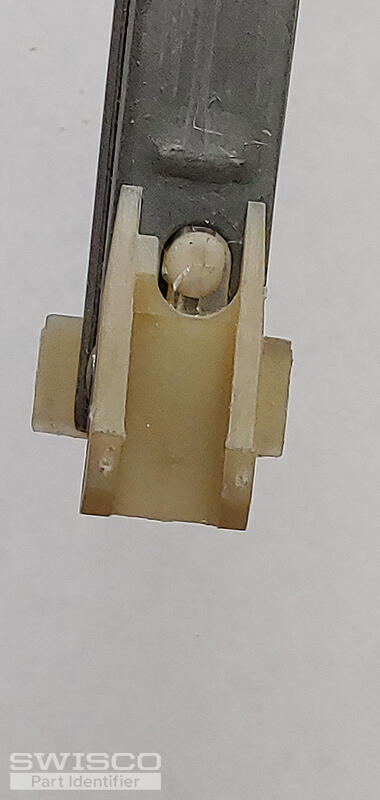

Thumbnail of the uploaded file named A4.jpg

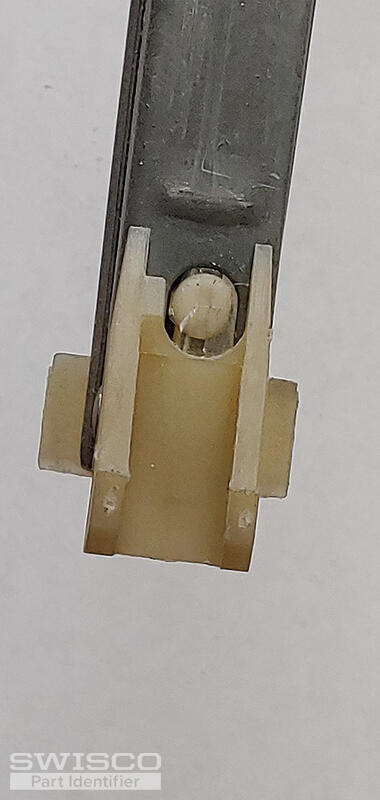

Thumbnail of the uploaded file named A5.jpg
A home owner from Roseville, CA says:
Need Help. Length metal tip to metal tip is 27 inches.

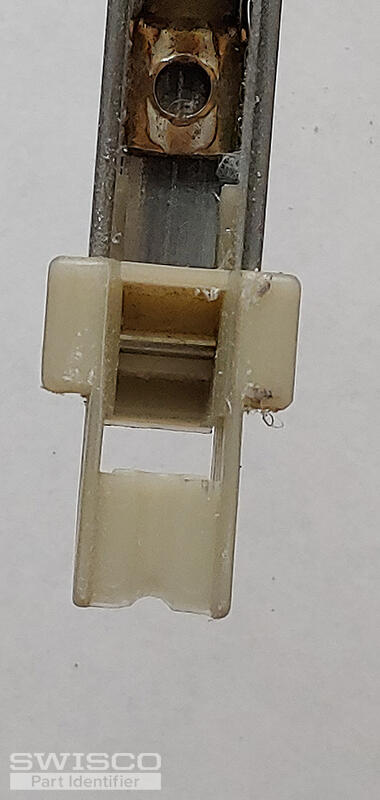

Thumbnail of the uploaded file named A6.jpg

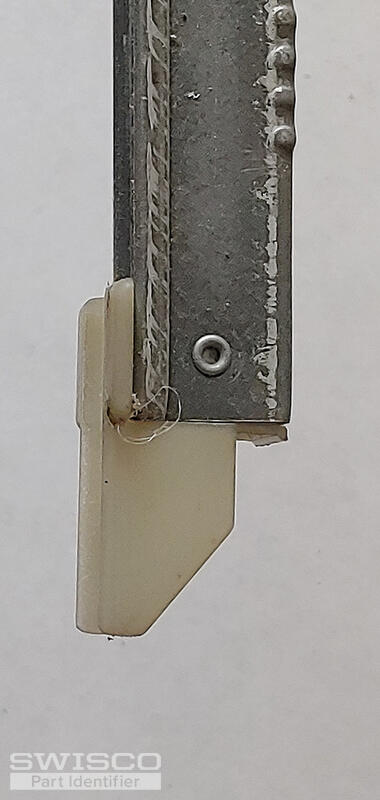

Thumbnail of the uploaded file named A7.jpg

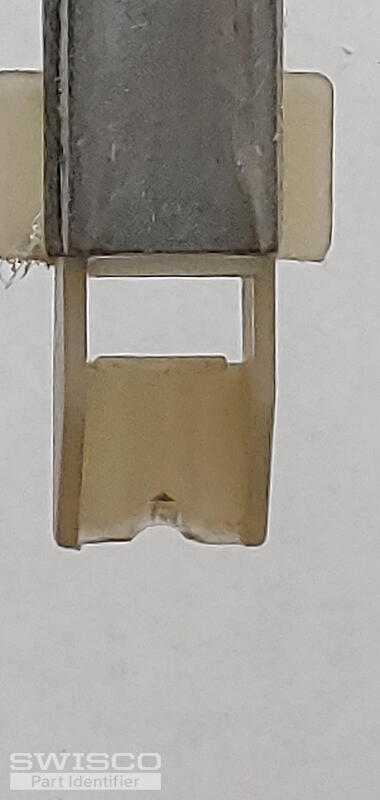

Thumbnail of the uploaded file named A8.jpg
Profile picture of Emily
Emily from SWISCO responded:

Hi there!

With this combination of attachments, you could have either an S380-27 or S385-27 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment. You'll also need a spring strength option of 2650.

If you have any further questions just let us know!

Comparison of the S380 and S385 balance shoes.
Comparison of the S380 and S385 balance shoes.
